5ft (1.5m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Red
5ft Red TAA-compliant Cat6 shielded (STP) snagless network cable with 26 AWG stranded copper conductors

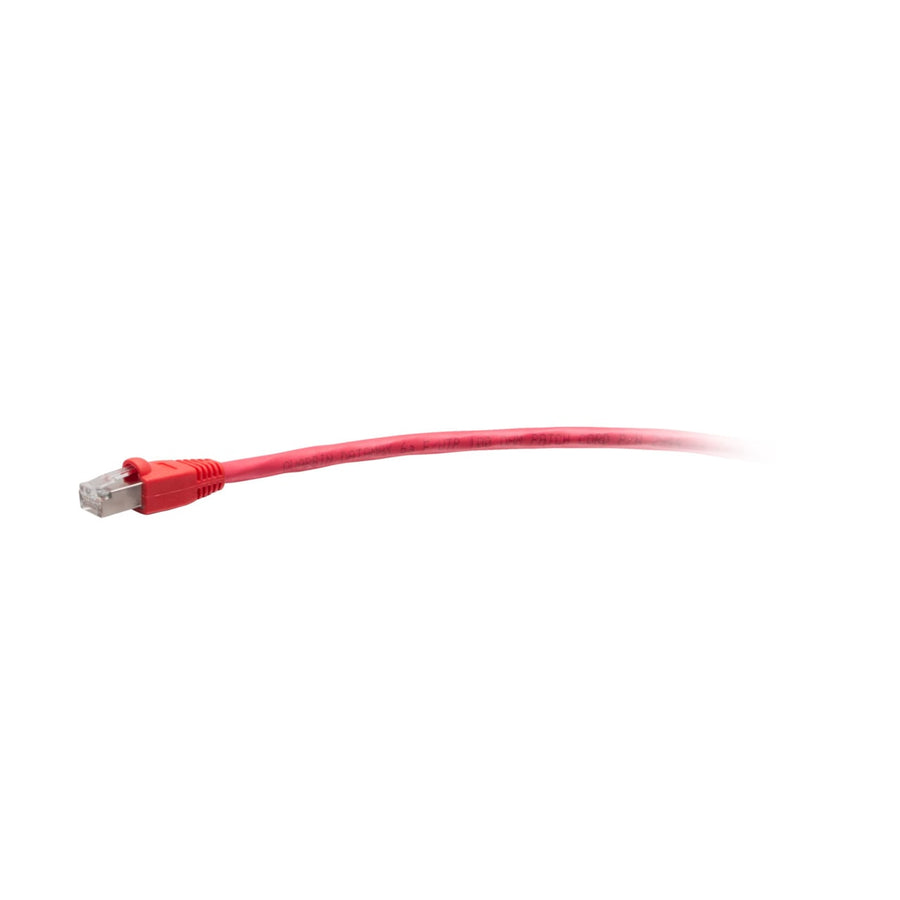

The C2G43754 is a 5 ft (1.5 m) TAA-compliant Cat6 snagless shielded (STP) network cable in Red. This passive cable is constructed with high-quality, made in the USA stranded copper conductors and an aluminum foil shield to counter electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It is designed to protect high-speed networks when connecting hubs, switches, routers, servers, and network adapters. This cable meets or exceeds the ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting 1000BASE-T (1 Gigabit Ethernet) applications. The snagless RJ45 connector design protects the clips from being snapped off during high insertion cycles, and the 50-micron gold-plated contacts ensure signal integrity. Rated for CMR/Riser applications with a PVC jacket, this cable operates in temperatures from -4° to 167°F (-20° to 75°C). It is fully TAA compliant for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437543 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43754 TAA compliant for government use?
Yes, this is a TAA-compliant cable specifically approved for use in United States government projects and facilities.
Will this shielded cable work for 1 Gigabit Ethernet?
Yes, it meets or exceeds ANSI/TIA-568.2-D standards to support 1000BASE-T (1 Gigabit Ethernet) applications.
How does the snagless design benefit installation?
The snagless RJ45 connector design protects the clips from being snapped off, which is ideal for applications requiring high insertion cycles.
What is the shielding type and conductor material?
This is an STP (Shielded Twisted Pair) cable using stranded copper conductors with an aluminum foil shield to counter interference.
What are the temperature and jacket ratings for this cable?
The cable has a CMR (Riser) rating with a PVC jacket and an operating temperature range of -4° to 167°F (-20° to 75°C).
