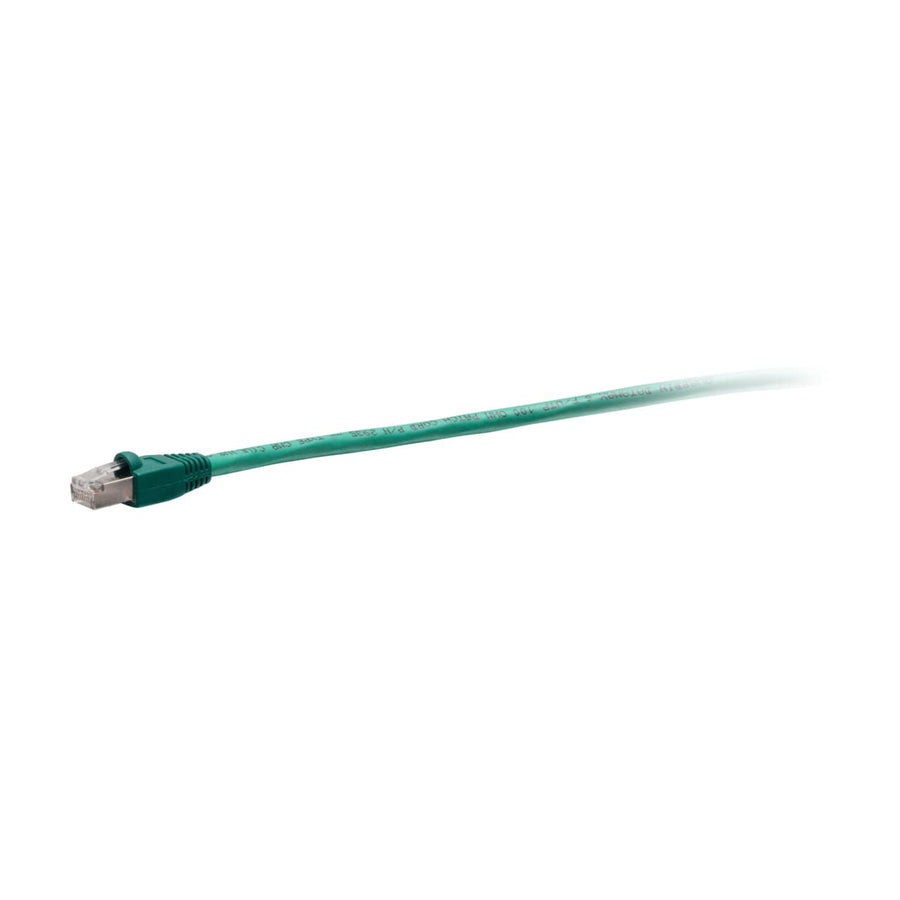

5ft (1.5m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Green
5ft Green TAA-Compliant Cat6 Snagless Shielded (STP) Network Cable
The C2G43740 is a 5ft (1.5 m) TAA-compliant Cat6 network cable finished in green. This shielded STP cable is engineered to protect high-speed networks from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It features snagless RJ45 connectors with 50-micron gold-plated contacts to maintain signal integrity and prevent clips from snapping during high-frequency insertion cycles. Constructed with high-quality, stranded copper cabling made in the USA, this passive cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. The cable uses a T568B wiring scheme and is rated for CMR (Riser) jacket applications. It is suitable for use in network adapters, hubs, switches, routers, and servers in environments requiring TAA compliance for United States government projects. This cable operates within a temperature range of -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437406 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43740 TAA compliant?
Yes, this Cat6 cable is TAA compliant, making it approved for use in United States government projects and facilities.
What is the wiring scheme for the C2G43740?
The C2G43740 uses a standard T568B wiring scheme for its RJ-45 male connectors.
Can I use this cable in a riser application?
Yes, this cable has a CMR (Riser) rated PVC jacket, which is suitable for riser applications.
How does the snagless design benefit installers?
The snagless RJ45 connector design protects the clips from being easily snapped off, which is particularly useful in applications with high insertion cycles.
What is the maximum operating temperature for this cable?
The operating temperature range for this cable is -4°F to 167°F (-20°C to 75°C).
