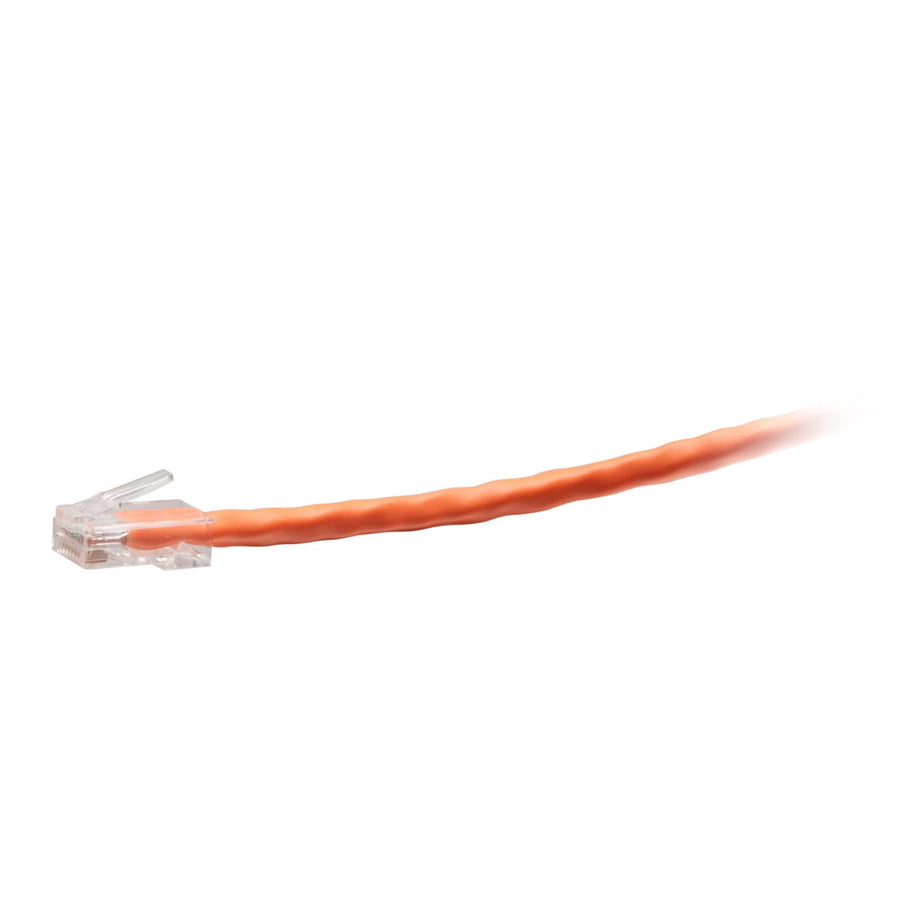

5ft (1.5m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Orange
5ft Orange Cat6 UTP network cable, TAA-compliant with 24 AWG stranded copper conductors and RJ-45 male connectors
The C2G43664 is a 5ft (1.5m) TAA-compliant F-Series Cat6 non-booted unshielded (UTP) network cable in orange. Built for professional environments, this cable is approved for use in United States government projects and facilities that require TAA compliance. It features high-quality, made in the USA raw copper cabling with a 24 AWG wire gauge and stranded conductors to ensure consistent, reliable performance. This passive cable supports 1000BASE-T (1 Gigabit Ethernet) and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, offering an enhanced 600 MHz maximum frequency for improved performance over standard Cat6. The cable is CMR rated for riser applications and features PVC jacket material. Both ends are terminated with RJ-45 male connectors featuring 50-micron gold-plated contacts to maintain high signal integrity. This orange cable is a reliable solution for connecting network adapters, hubs, switches, routers, and servers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436645 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Trio Combo Module with Cat6 Data
CO1166$119.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
12-Port Blank Keystone/Multimedia Patch Panel
CG03857$25.99
Surface Mount Box 2-Port in White
WP3502WH$2.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
Questions about this part
Is the C2G43664 TAA compliant for government projects?
Yes, this C2G43664 cable meets TAA compliant requirements and is approved for use in United States government projects and facilities.
What is the maximum frequency and speed supported by this Cat6 cable?
This Cat6 cable supports 1000BASE-T (1 Gigabit Ethernet) and features an enhanced 600 MHz maximum frequency for improved performance.
Can I use this cable in a riser application?
Yes, this cable has a CMR jacket rating, making it suitable for riser applications.
What are the connector types on the C2G43664?
The cable is equipped with two RJ-45 male connectors featuring 50-micron gold-plated contacts for signal integrity.
What other products is this cable compatible with?
This cable is compatible with various components such as the CG37200 48-Port Cat6 110-Type Patch Panel and the CG37199 24-Port Cat6 110-Type Patch Panel.
