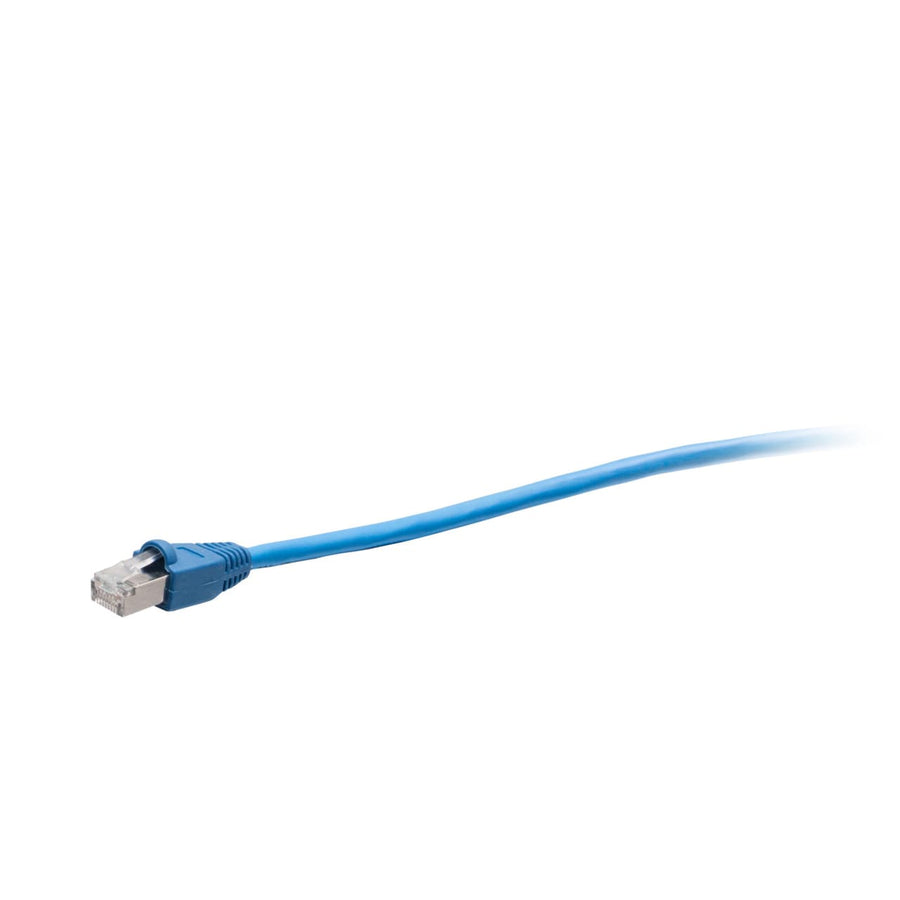

5ft (1.5m) TAA-Compliant F-Series Cat5e Snagless Shielded (STP) Network Cable - Blue
5ft Blue Cat5e STP snagless shielded network cable, TAA-compliant and CMR rated for high-EMI environments
The C2G43432 is a 5ft (1.5m) TAA-compliant Cat5e Snagless Shielded (STP) Network Cable in Blue. Designed for mission-critical environments requiring strict adherence to United States government project requirements, this cable is fully TAA compliant. It features high-quality, made-in-the-USA stranded copper conductors and 26 AWG wire gauge to ensure consistent and reliable performance across 1000BASE-T (1 Gigabit Ethernet) applications. An aluminum foil shield provides 100% coverage to protect data transmission from RFI and EMI in noisy electrical environments. The snagless RJ45 connectors include 50-micron gold-plated contacts for improved signal integrity and a molded boot to provide extra strain relief. This CMR rated, riser-rated cable is constructed with a PVC jacket and is suitable for use in network adapters, hubs, switches, routers, and servers. It meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434320 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43432 TAA compliant?
Yes, this C2G43432 cable is TAA compliant and meets the requirements for use in United States government projects and facilities.
What is the shielding type for this Cat5e cable?
The C2G43432 utilizes Shielded STP (Shielded Twisted Pair) construction with an aluminum foil shield providing 100% coverage to protect against EMI and RFI.
What is the maximum operating temperature for this cable?
This cable is rated to operate in temperatures ranging from -4°C to 167°F (-20°C to 75°C).
What is the wiring scheme for the C2G43432?
This network cable follows the T568B wiring scheme and features 26 AWG stranded copper conductors.
Does this cable support Gigabit Ethernet?
Yes, the C2G43432 meets ANSI/TIA-568.2-D standards for supporting applications including 1000BASE-T (1 Gigabit Ethernet).
