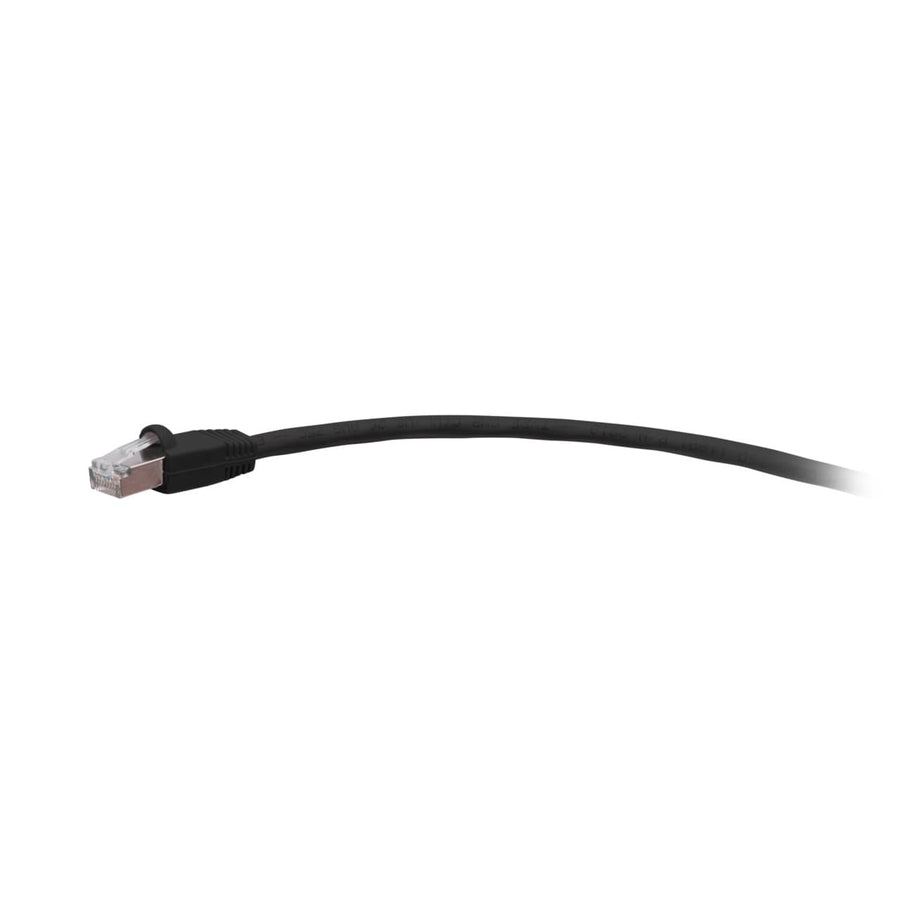

5ft (1.5m) TAA-Compliant F-Series Cat5e Snagless Shielded (STP) Network Cable - Black
5ft TAA-compliant Cat5e shielded patch cable, featuring snagless RJ-45 connectors and black PVC jacket
The C2G43438 is a 5ft (1.5 m) TAA-compliant Cat5e snagless shielded (STP) network cable designed for mission-critical connectivity in demanding environments. This passive patch cable is built with high-quality, made-in-the-USA copper stranded conductors and features 50-micron gold-plated contacts to maintain signal integrity. An aluminum foil shield provides 100% coverage to protect against RFI and EMI, making it a reliable choice for connections near power lines or in noisy server rooms. This CMR-rated cable features a PVC jacket and is rated for riser applications, meeting ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards for 1000BASE-T Gigabit Ethernet. The snagless RJ-45 male connectors include a molded boot for added strain relief, protecting the clips from damage during high-frequency insertion cycles. This black cable is suitable for use in network adapters, hubs, switches, routers, and servers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 5 ft (1.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434382 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43438 TAA compliant?
Yes, this is a TAA-compliant cable, making it approved for use in United States government projects and facilities.
What is the maximum data rate for this Cat5e cable?
This cable meets ANSI/TIA-568.2-D standards and supports 1000BASE-T (1 Gigabit Ethernet) applications.
What makes the snagless design beneficial for installers?
The snagless RJ-45 design features a molded boot that protects the connector clips from being snapped off during high insertion cycles.
Can this cable be used in noisy electrical environments?
Yes, the shielded STP construction uses an aluminum foil shield to protect data transmission from RFI and EMI interference.
What is the jacket rating for this cable?
This is a CMR rated riser cable with a PVC jacket, suitable for use in riser applications.
