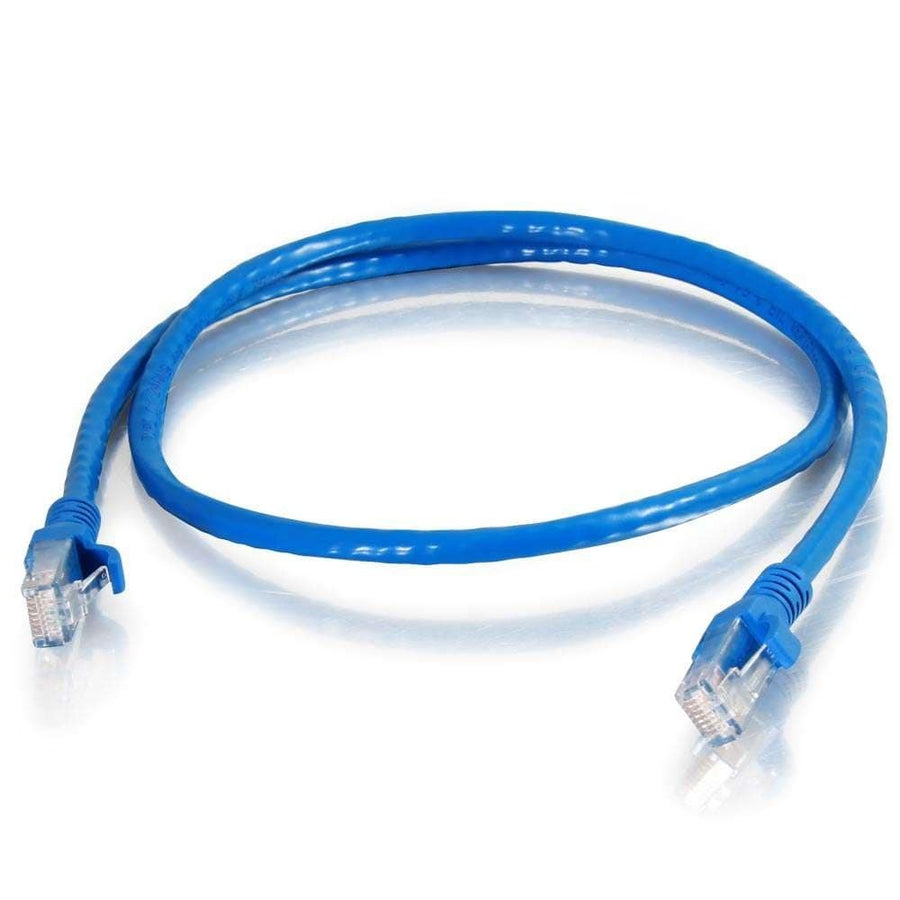

5ft (1.5m) Cat6 Snagless UTP Unshielded Ethernet Network Patch Cable - Blue
5ft Blue Cat6 UTP snagless patch cable with RJ-45 male connectors for bandwidth-intensive networking applications
The C2G CG10314 is a 5ft (1.5m) Cat6 UTP patch cable designed for high-bandwidth voice, data, and video distribution. This blue unshielded twisted pair (UTP) cable utilizes 24 AWG stranded copper conductors to support demanding network environments. It features a T568B wiring scheme and is constructed with a PVC jacket. The design includes a molded, snag-free boot that provides extra strain relief and prevents accidental snags during installation. The connector type consists of two RJ-45 male ends with a snagless design to minimize Near-End Crosstalk (NEXT) levels. This cable meets all TIA/ANSI standards and is TAA compliant, making it suitable for government or institutional projects requiring products manufactured in countries on the Trade Agreement Act list. This specific SKU is part of a larger series available in various lengths and colors, including black and gray.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.16 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
All other specifications 13
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120103141 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Surface Mount Box
WP3506WH$6.99
Cable Management Strap - 12 Piece
TW12$25.20
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
32-Port Blank Keystone/Multimedia Patch Panel
CG03860$42.99
Questions about this part
Is the C2G CG10314 TAA compliant?
Yes, this cable is TAA compliant and meets the requirements for procurement from countries on the Trade Agreement Act list.
What is the wiring scheme for this Cat6 cable?
The CG10314 uses the T568B wiring scheme and features stranded copper conductors.
Can I use this cable for high-bandwidth video distribution?
Yes, this Cat6 UTP cable is designed to handle bandwidth-intensive applications for voice, data, and video distribution.
What is the difference between this and other C2G Cat6 cables?
This SKU is the 5ft blue variant; the series is also available in other colors like black and gray and different lengths.
Does this cable include snagless protection?
Yes, the RJ-45 male connectors feature a molded, snagless boot to provide extra strain relief and prevent snags.
