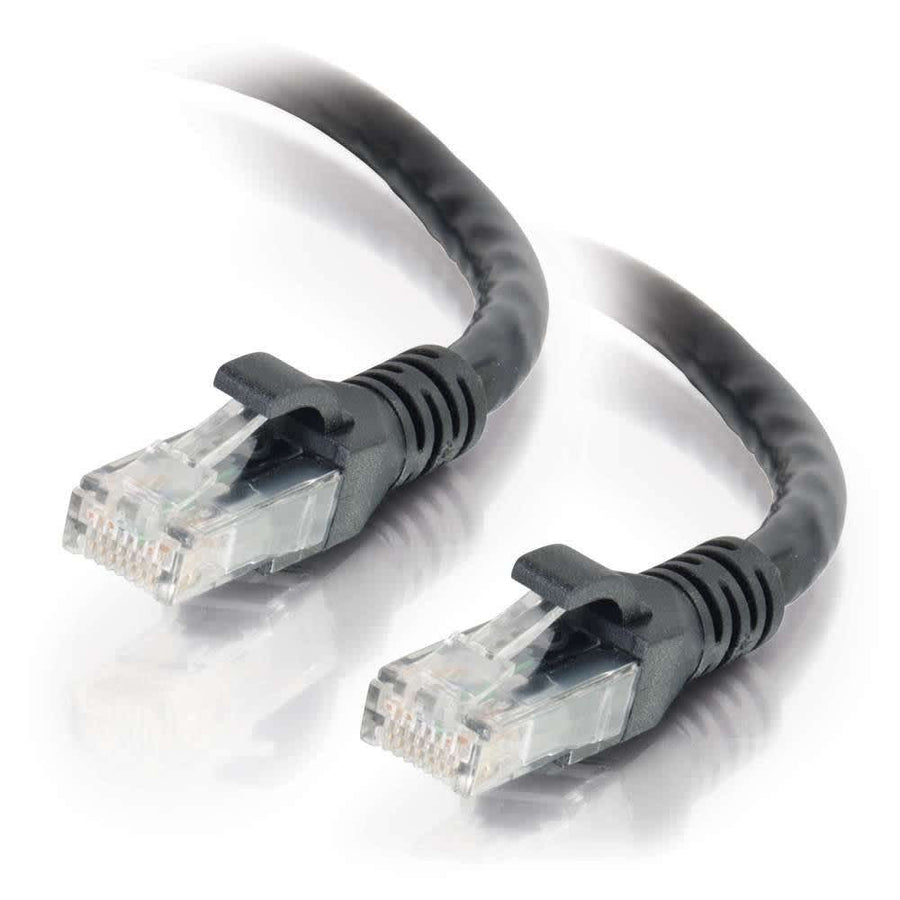

5ft (1.5m) Cat6 Snagless UTP Unshielded Ethernet Network Patch Cable - Black
5ft Cat6 UTP snagless patch cable in black, TAA compliant for secure data and voice distribution
The C2G CG10292 is a 5ft (1.5m) Cat6 Unshielded Twisted Pair (UTP) Ethernet patch cable designed for bandwidth-intensive voice, data, and video distribution. This black cable features a snagless, booted connector design to provide extra strain relief and prevent accidental snags during installation. It is constructed with stranded copper conductors and a PVC jacket to maintain signal integrity. For projects requiring strict procurement standards, this cable is TAA compliant and meets NDAA 889 requirements. The wiring scheme follows the T568B standard, and the molded, short-body plug is engineered to minimize Near-End Crosstalk (NEXT) levels. This Cat6 cable is suitable for high-speed networking environments where compliance and reliable physical connectivity are required. It is a component within the Cat6 TAA Snagless Patch Cable Series and is available in other colors such as Blue and Gray.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 5 ft (1.5 m) |
| Shield Type | UTP |
| Shipping Weight | 0.15 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
All other specifications 13
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120102922 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Surface Mount Box
WP3506WH$6.99
Cable Management Strap - 12 Piece
TW12$25.20
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
Surface Mount Box 1-Port in White
WP3501WH$1.99

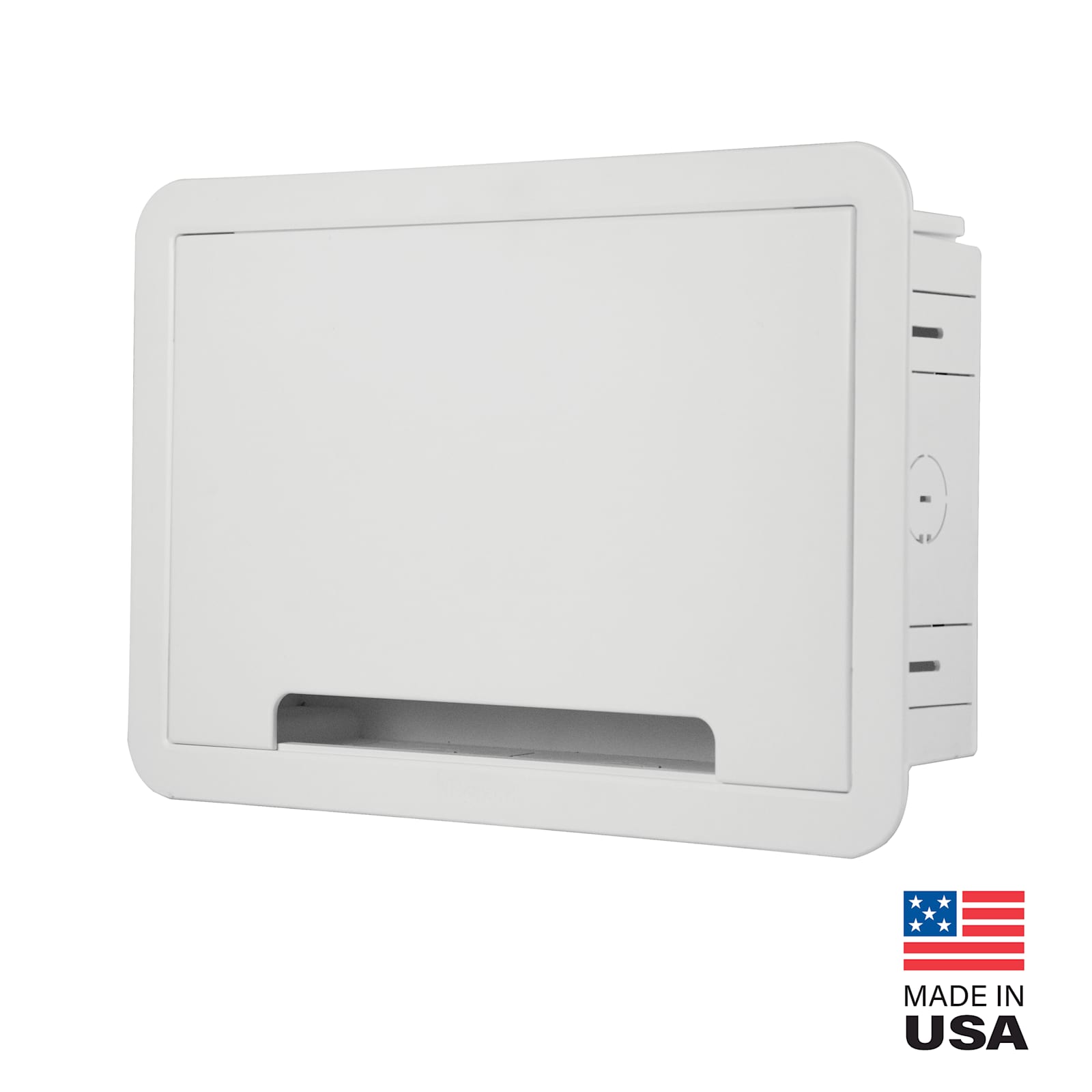

9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
32-Port Blank Keystone/Multimedia Patch Panel
CG03860$42.99
Questions about this part
Is the C2G CG10292 TAA compliant?
Yes, this 5ft Cat6 cable is TAA compliant and meets NDAA 889 requirements, making it suitable for specific procurement mandates.
What is the wiring scheme for this patch cable?
The CG10292 uses the T568B wiring scheme for standard network connectivity.
What accessories are compatible with this Cat6 cable?
This cable can be used with various C2G products, including the CG37199 24-Port Cat6 Patch Panel and the WP3506WH 6-Port Surface Mount Box.
What is the diameter of the cable jacket?
The cable has a diameter of 0.24 in (6.2 mm).
Does this cable provide strain relief?
Yes, the snagless, booted RJ-45 connectors are designed to provide extra strain relief and prevent unwanted snags during installation.
