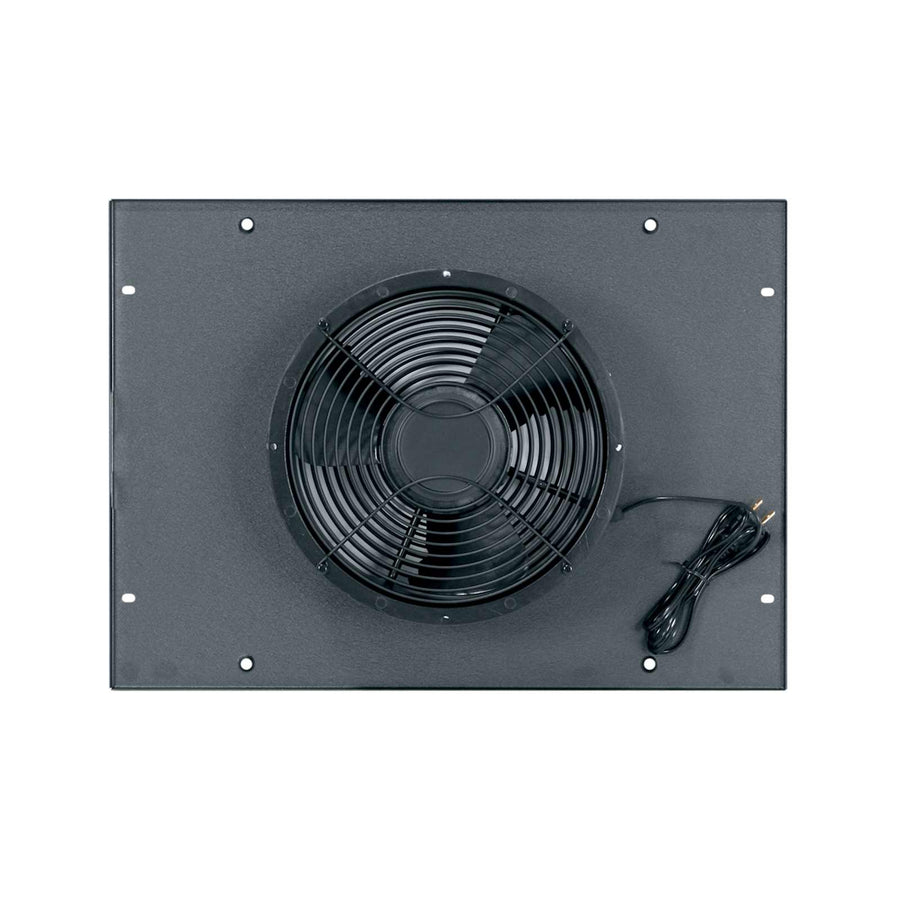

550 CFM Fan Top for ERK Series
Active 550 CFM fan top featuring one 10" fan, compatible with ERK, WMRK, and SCRK rack series
The ERK-10FT-550CFM is a pre-assembled active fan top designed to provide 550 CFM of airflow for critical thermal management. This unit features a single 10" fan (25.4-25.4 cm) and comes equipped with fan guards for protection. For installers looking to save time on-site, this component ships fully assembled and ready for integration. It is specifically engineered to fit ERK, WMRK, SCRK, and ERK-KD racks, provided the rack is 35 spaces or higher. The assembly features a black steel construction and operates on 120 VAC power. This active component is not internally controlled; to manage fan operation based on temperature, an installer can integrate compatible accessories such as the FC-2-215-1CA or FC-4-1CA thermostatic fan controllers. The unit's physical footprint is 19.75 in (50.2 cm) wide, 14.38 in (36.5 cm) high, and 4.06 in (10.3 cm) deep.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| CFM | 550 |
| Depth | 4.06 in (10.3 cm) |
| Fan Size | 10-10 in (25.4-25.4 cm) |
| Height | 14.38 in (36.5 cm) |
| Shipping Weight | 8 lbs (3.6 kg) |
| Volts AC | 120 VAC |
| Width | 19.75 in (50.2 cm) |
| Available Internationally | NoNo |
All other specifications 9
| Base Series | ERKERK |
| Component Type | Active |
| Controlled | No |
| Fan Controller Included | NoNo |
| Manufacturer | Middle AtlanticMiddle Atlantic |
| Power Type | AC |
| UPC | 656747093494 |
| Certifications | UL Listed |
| Warranty | 3 years3 years |
Resources
You'll need these with it
Questions about this part
Will the ERK-10FT-550CFM fit my ERK rack?
Yes, this fan top fits ERK, WMRK, and SCRK racks. It is also compatible with ERK-KD racks, as long as the rack is 35 spaces or higher.
Do I need to buy a controller to operate this fan?
The ERK-10FT-550CFM is an active component but does not include an internal fan controller. You can add external thermostatic control using the FC-2-215-1CA or FC-4-1CA controllers.
Does this fan top require special mounting hardware?
This is a pre-assembled integrated top that fits directly onto the top of the compatible rack series; refer to the ERK Top Option Instruction Sheet (PDF) for specific mounting details.
What are the power requirements for this unit?
This fan top operates on standard 120 VAC power and is UL Listed for safety.
What is included with this fan top assembly?
The ERK-10FT-550CFM ships pre-assembled and includes the 10" fan and the necessary fan guards.
