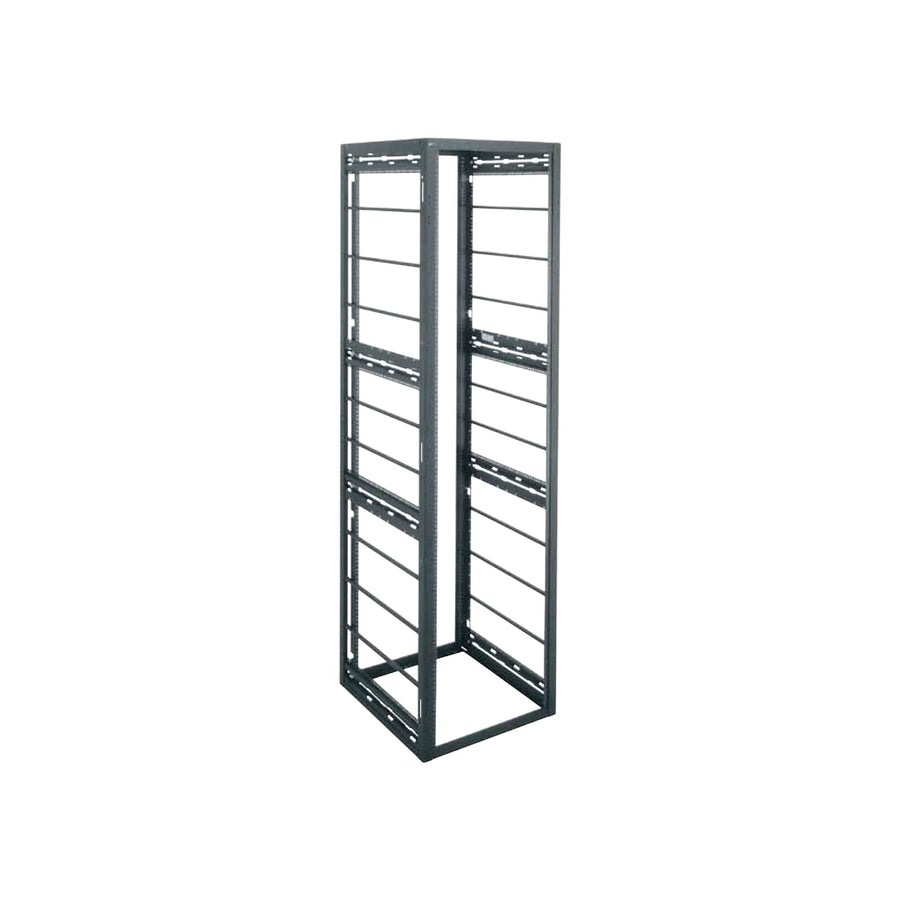

52 RU GRK Series Broadcast Rack, 36 Inches Deep
52 RU broadcast rack, 36 inches deep, 1,500 lb. capacity, TAA compliant and built for high-density video cable management
The Middle Atlantic GRK-52-36HLRD is a 52 RU welded gangable rack designed for high-density video environments requiring efficient cable management. This 36 in (91.4 cm) deep rack is optimized for managing large video cable bundles, utilizing horizontal cable management bars designed for tie-and-slide lacing. The construction features a solid frame top and bottom to ensure a robust structure capable of supporting a 1,500 lbs (680.4 kg) weight capacity. For ease of installation, the rack includes numbered rackspace increments and standard grounding and bonding studs on the top and bottom. It is finished in a durable black textured powder coat and is UL Listed and TAA compliant. The design allows for straight vertical cable runs through the fully open top and bottom, which feature finished edges to prevent cable chafing and maintain a professional appearance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 36 in (91.4 cm) |
| Height | 94 in (238.8 cm) |
| Rack Units | 52 RU |
| Shipping Weight | 280 lbs (127 kg) |
| Weight Capacity | 1500 lbs (680.4 kg) |
| Federal Ops Country of Origin | USA |
| Rear Door | No |
| TAA Compliant | Yes |
| UPC | 656747062513 |
| Certifications | cULusTAAUL Listed |
Resources
You'll need these with it
100 CFM Fan Panel, Textured
QTFP-2$243.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
100 CFM Fan Panel, Anodized
QFP-2$252.90
PDT Low Profile Vertical Power Strip, 20 Outlet, 20A
PDT-2020C-NS$406.80

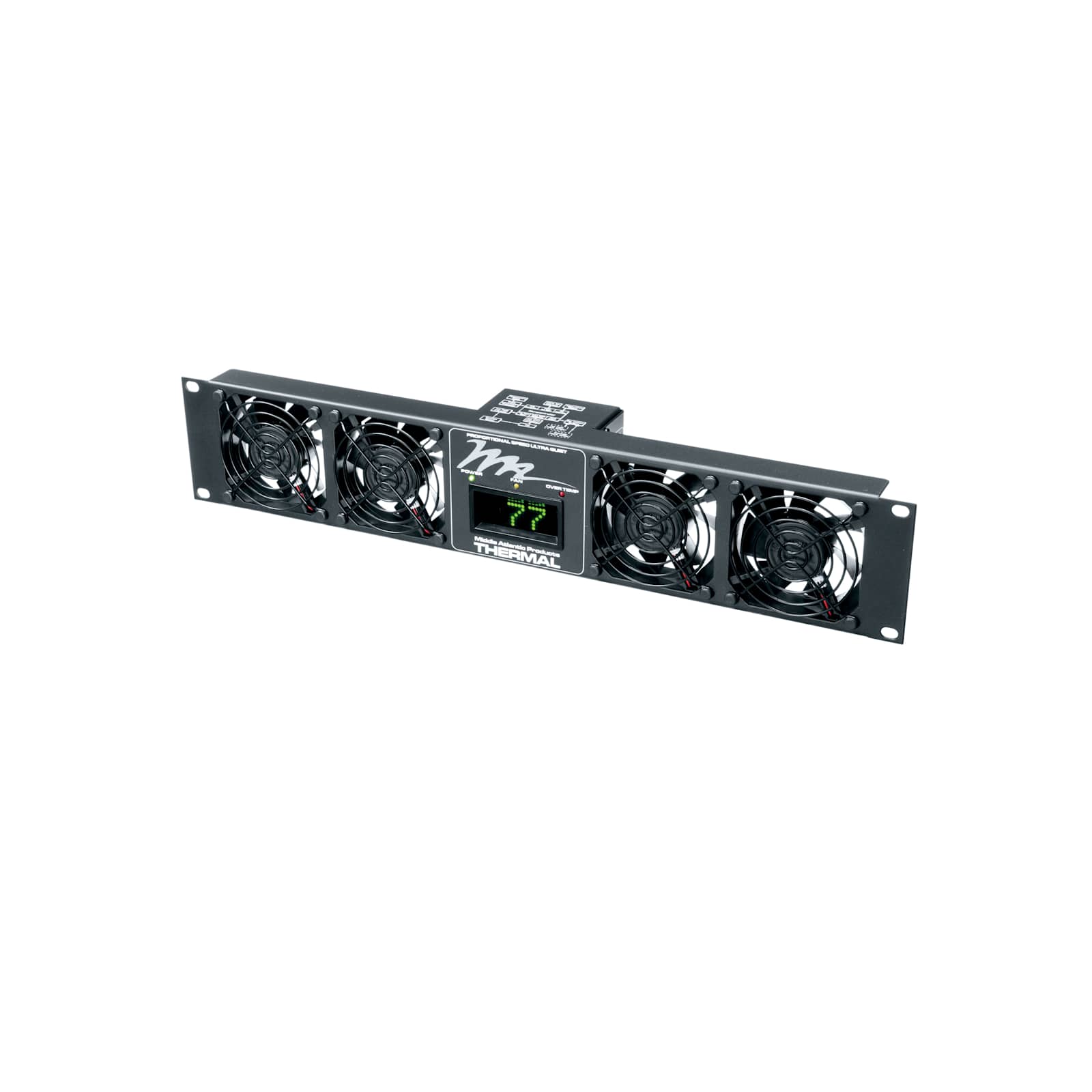

100 CFM Fan Panel with Display, 27dB
UQFP-4D$1,026.90

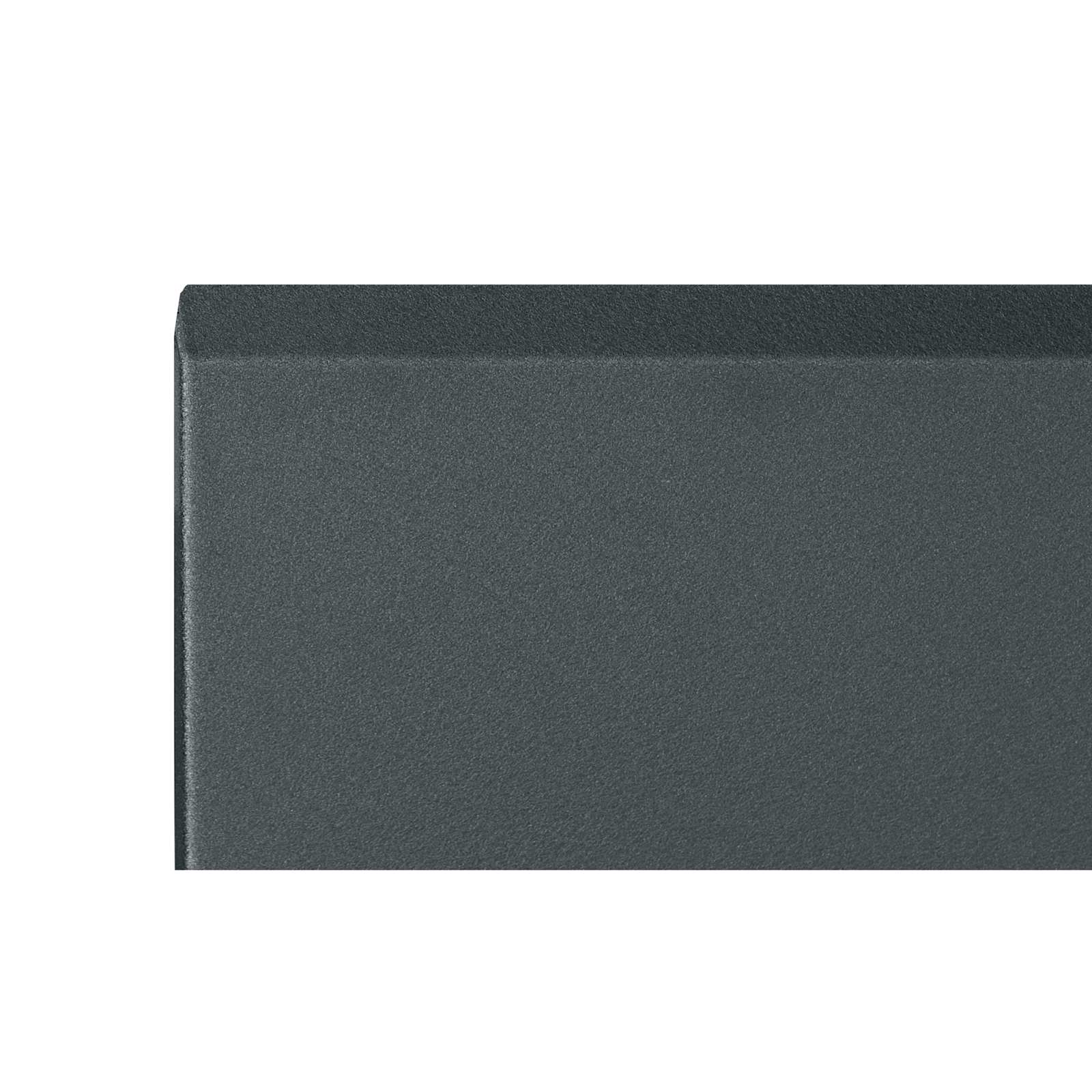

52RU Solid Front/Rear Door for GRK
GFRD-52$478.80

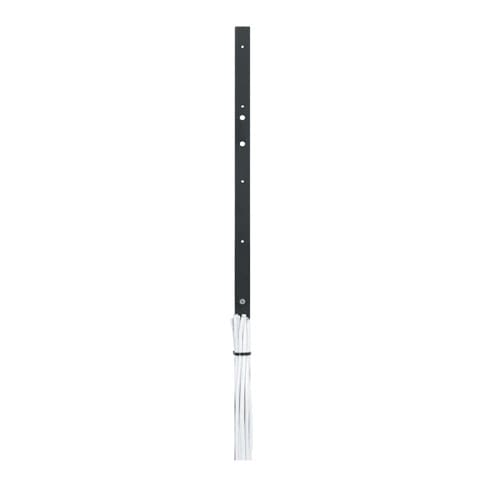

52 RU Steel Lace Bar, 1 Inch - 6 Piece
LACE-G52-1P

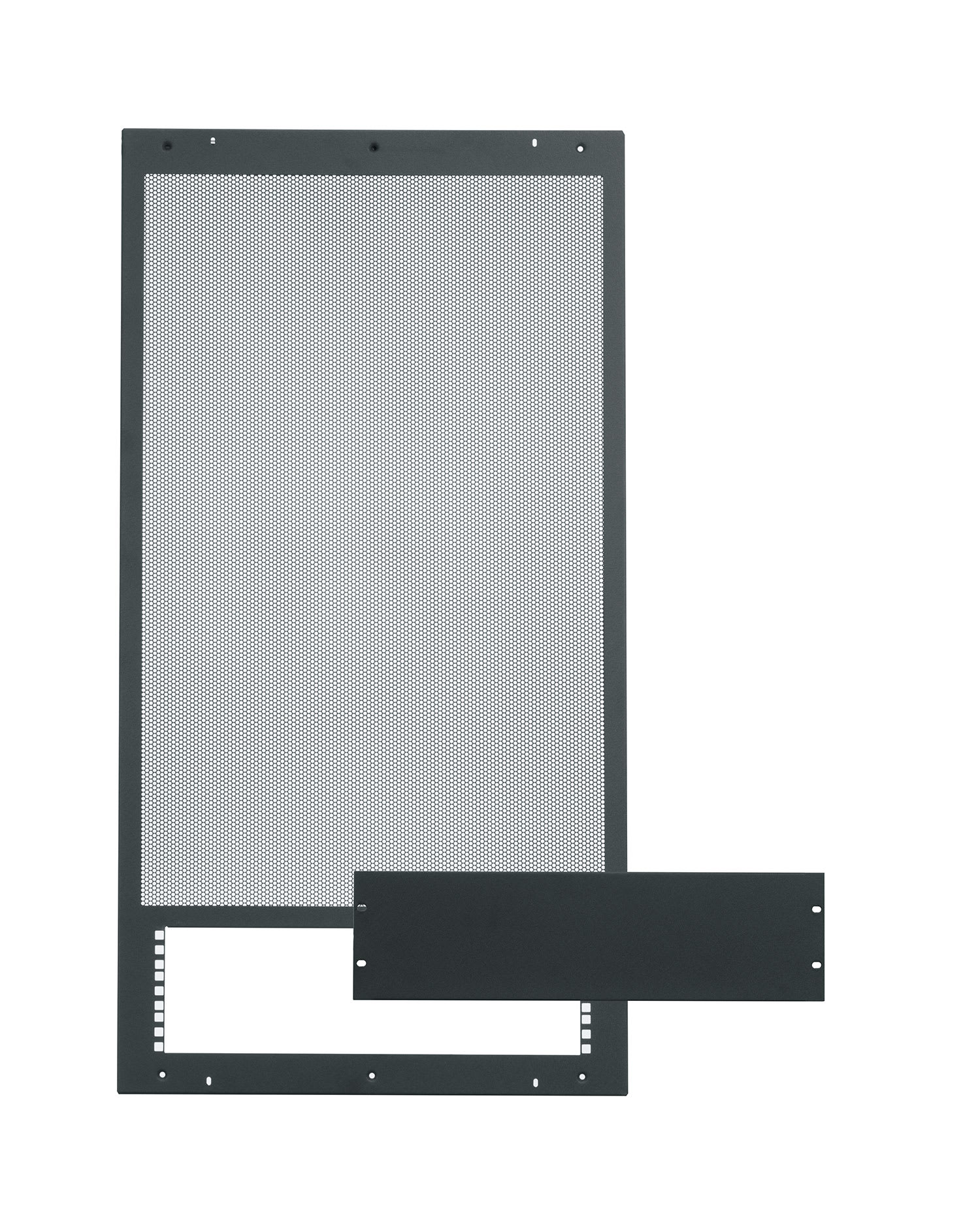

Vented Top for 36 Inch Deep GRK Racks
GRK-LVT36$370.80

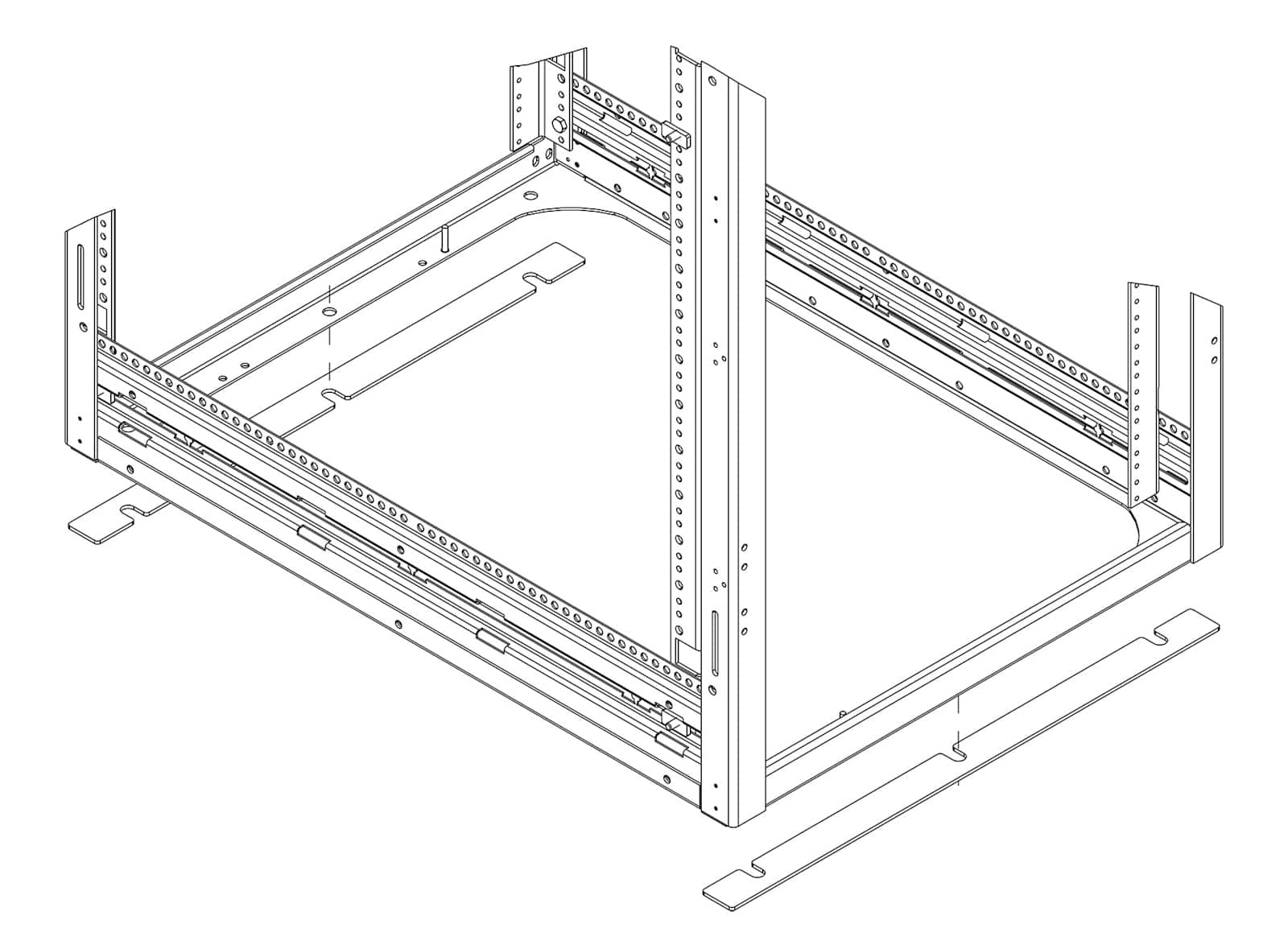

GRK Isolation Kit
GRK-ISO$90.90
52 RU Rackrail 10-32 for GRK Series
GRK-RR52$260.10

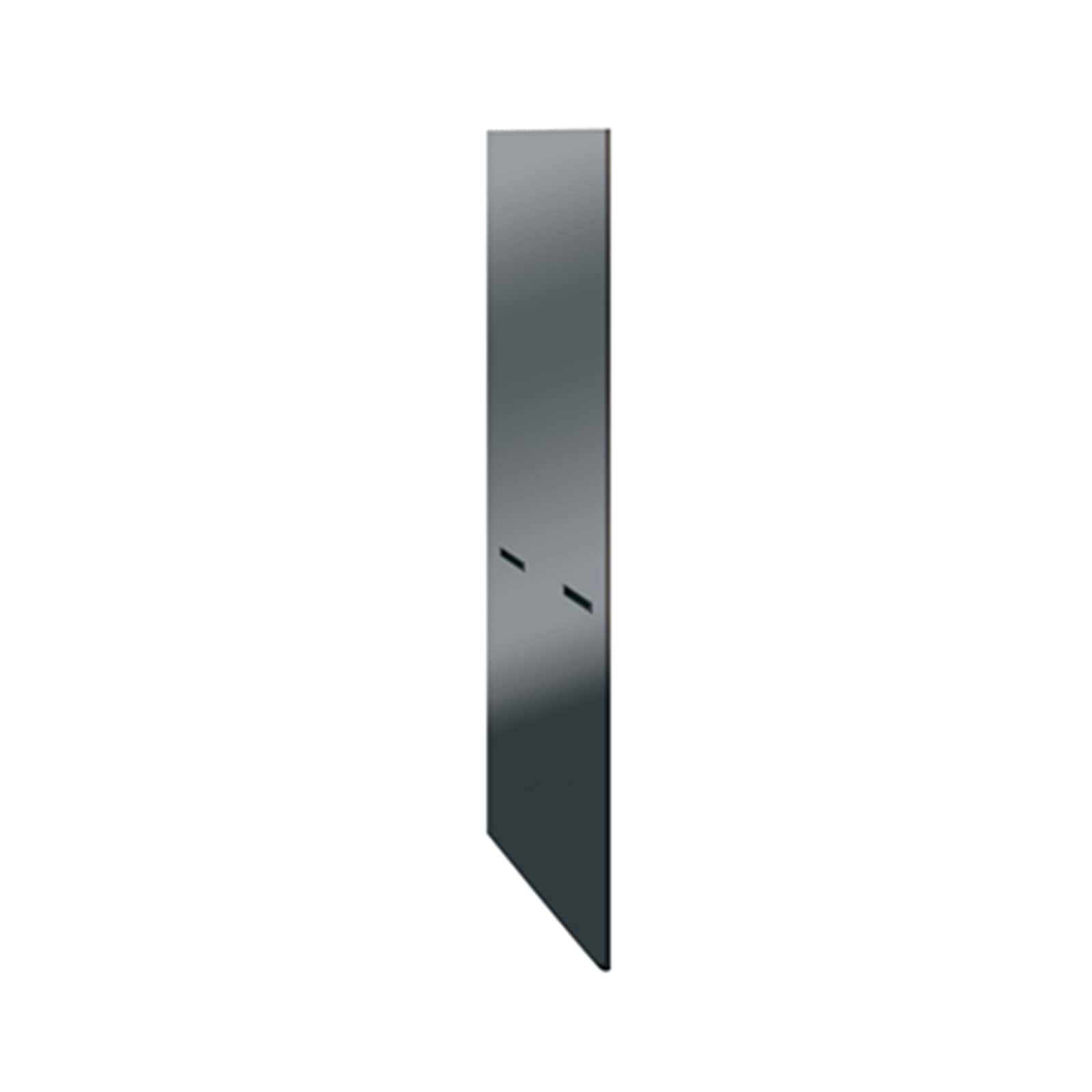

52 RU Side Panels for 36 Inch Deep GRK Racks
SPNG-52-36$1,280.70
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Questions about this part
What is the weight capacity of the GRK-52-36HLRD?
The GRK-52-36HLRD supports a total weight capacity of 1,500 lbs (680.4 kg).
Can I add doors or side panels to this rack?
Yes, compatible accessories include 52 RU side panels (SPNG-52-36) and 52 RU solid front/rear doors (GFRD-52).
Is the GRK-52-36HLRD TAA compliant for government projects?
Yes, this rack is TAA compliant and is manufactured in the USA.
What cable management options are included?
The rack features horizontal cable management bars for tie-and-slide lacing and provides an open top and bottom for straight vertical cable runs.
How can I manage power within the GRK-52-36HLRD?
You can integrate various power solutions such as the Select Series PDT Low Profile Vertical Power Strip (PD-2420SC-NS) or MPR Power Modules.
