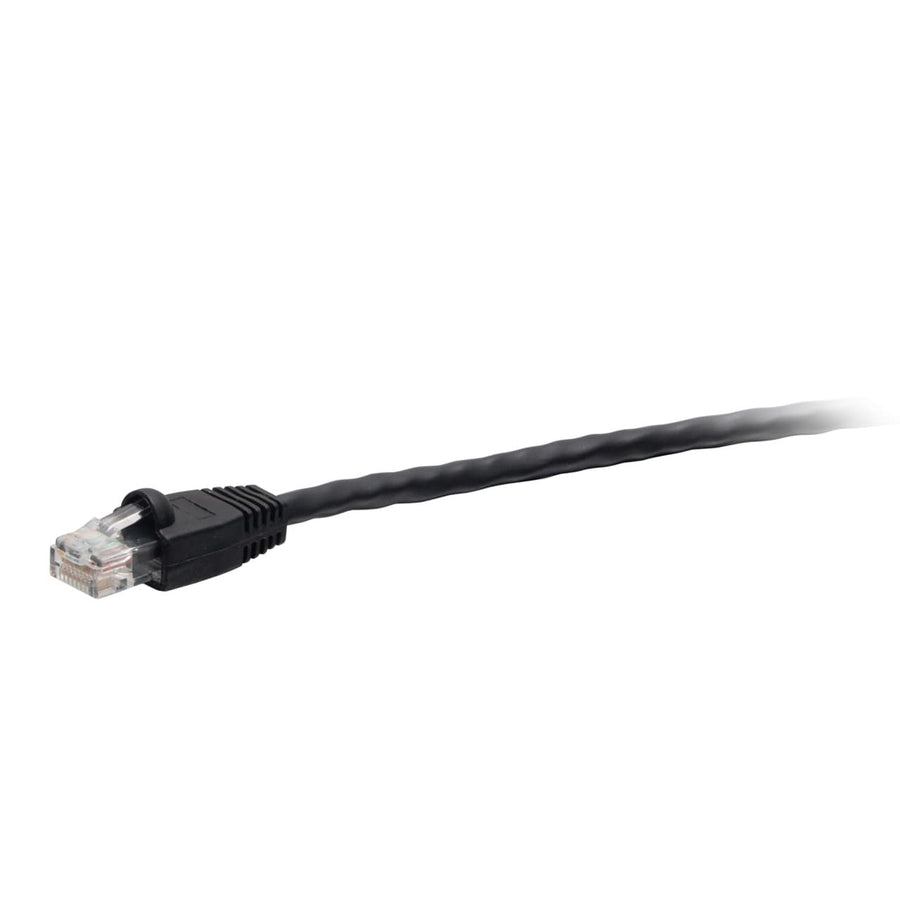

50ft (15.2m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Black
50ft TAA-compliant Cat6 snagless UTP network cable, black, with 600 MHz frequency support and 50-micron gold-plated contacts
The C2G43482 is a 50ft (15.2 m) TAA-compliant Cat6 snagless unshielded (UTP) network cable designed for high-performance connectivity in professional environments. This passive cable is suitable for use with network adapters, hubs, switches, routers, and servers, meeting or exceeding ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. It provides 1000BASE-T (1 Gigabit Ethernet) support and features a maximum frequency of 600 MHz, enabled by high-quality, made in the USA copper cabling. The unshielded twisted pair (UTP) construction uses 24 AWG stranded copper conductors. For durability in high-use environments, the snagless RJ-45 male connectors feature molded boots to protect the clips from snapping and 50-micron gold-plated contacts for signal integrity. This CMR rated riser cable is housed in a black PVC jacket and operates in temperatures from -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 50 ft (15.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 1.12 lbs (0.5 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434825 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Trio Combo Module with Cat6 Data
CO1166$119.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
12-Port Blank Keystone/Multimedia Patch Panel
CG03857$25.99
Surface Mount Box 2-Port in White
WP3502WH$2.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
Questions about this part
Is the C2G43482 TAA compliant for government contracts?
Yes, this is a TAA-compliant cable, making it approved for use in United States government projects and facilities.
What is the maximum bandwidth of this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency, providing higher performance than standard Cat6 cables for 1000BASE-T applications.
What type of installation is this cable rated for?
This is a CMR rated riser cable, suitable for use in vertical pathways within a building.
What accessories are compatible with this network cable?
You can pair this cable with various components including the CG29826 USB-C to Ethernet Network Adapter Converter or the CG37200 48-Port Cat6 110-Type Patch Panel.
What is the wiring standard for the RJ-45 connectors?
The C2G43482 is wired according to the T568B scheme and features one RJ-45 male connector on each end.
