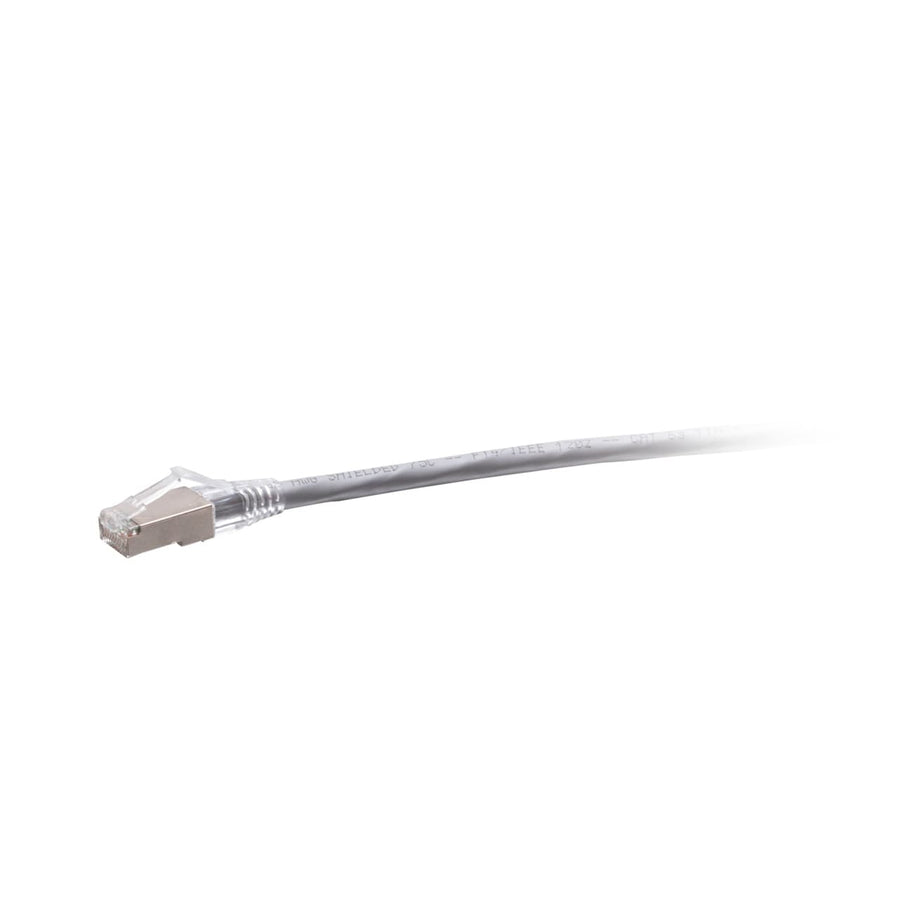

4ft (1.2m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Gray
4ft Cat6a Snagless Shielded (STP) network cable, TAA-compliant, Gray
The C2G43795 is a 4ft (1.2m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable in Gray. Designed to meet stringent TAA requirements, this cable is approved for use in United States government projects and facilities. This passive, stranded copper cable features 50-micron gold-plated contacts to improve signal integrity and is constructed with high-quality, made in the USA raw cable for consistent, reliable performance. The shielded STP construction, including an aluminum foil shield, is engineered to protect high-speed 10 Gigabit (10GBase-T) network connections from noise, EMI, RFI, and alien crosstalk. It is suitable for bandwidth-intensive applications involving network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. This cable utilizes a snagless RJ-45 connector design to protect the clips from damage during high insertion cycles and is rated for CMR riser applications. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 4 ft (1.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437956 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43795 TAA compliant?
Yes, this is a TAA-compliant F-Series network cable approved for United States government projects and facilities.
What is the maximum bandwidth capability of this cable?
This Cat6a cable supports 10GBase-T (10 Gigabit Ethernet) applications and meets ANSI/TIA-568.2-D standards.
Will this cable work for shielded network environments?
Yes, the cable uses Shielded STP construction with an aluminum foil shield to counter EMI, RFI, and alien crosstalk.
What is the jacket rating for this C2G cable?
This cable features a PVC jacket with a CMR riser rating.
What is the wiring configuration for the C2G43795?
This cable is wired using the T568B scheme with 26 AWG stranded copper conductors.
