4ft (1.2m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Blue
4ft Cat6a snagless shielded patch cable, TAA-compliant for government projects, blue finish

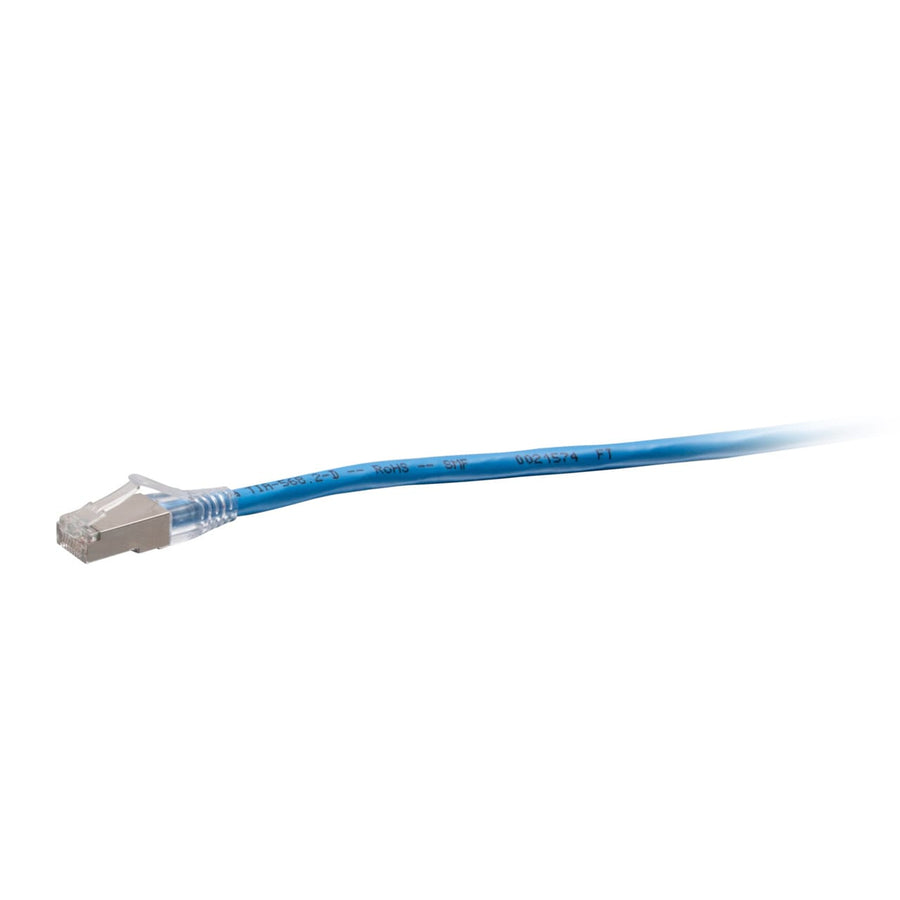

The C2G43816 is a 4ft (1.2 m) TAA-compliant F-Series Cat6a Snagless Shielded (STP) network cable in blue. Specifically designed for high-speed 10GBase-T equipment, this passive patch cable is suitable for use with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. It features a shielded STP construction with aluminum foil to protect 10 Gigabit network connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. This cable utilizes stranded copper conductors with a 26 AWG wire gauge and a T568B wiring scheme. For improved signal integrity, the RJ-45 male connectors are equipped with 50-micron gold-plated contacts. The cable is protected by a snagless design to prevent the RJ45 clips from breaking during high insertion cycles. This riser-rated (CMR) cable features a PVC jacket and is rated for operation in temperatures ranging from -4°F to 167°F (-20°C to 75°C). The assembly complies with ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 4 ft (1.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438168 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
