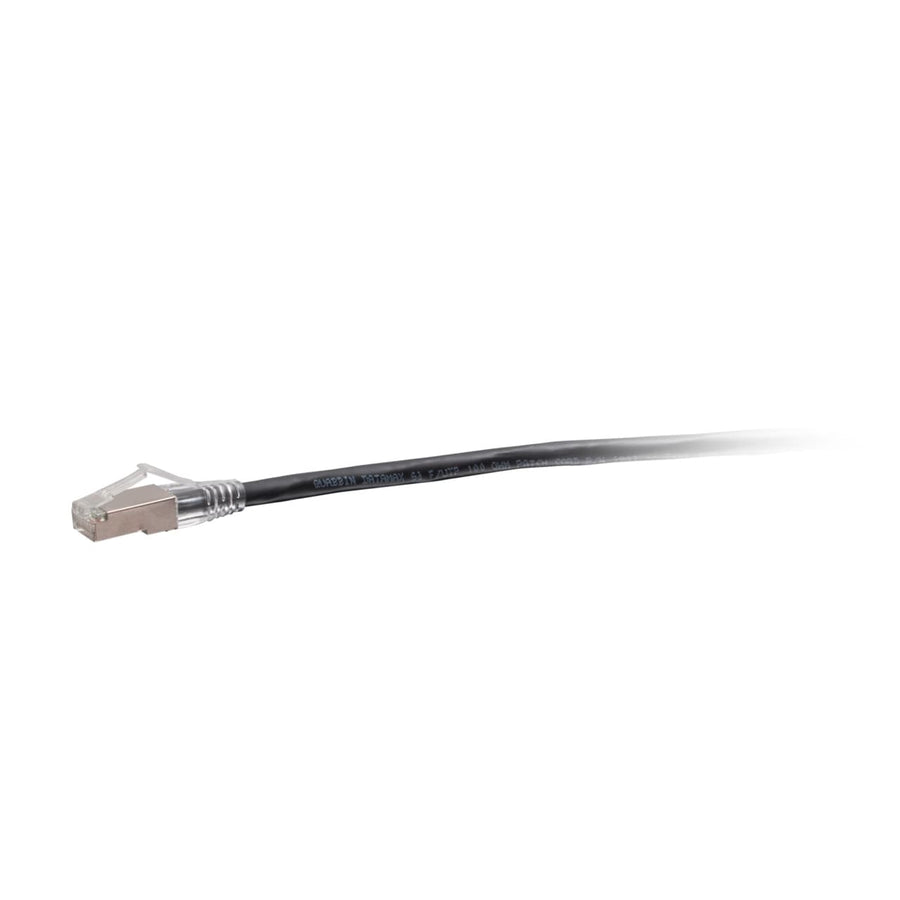

4ft (1.2m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Black
4ft TAA-compliant Cat6a STP snagless network cable, shielded to protect 10GBase-T connections from EMI and RFI interference
The C2G43837 is a 4 ft (1.2 m) TAA-compliant Cat6a snagless shielded (STP) network cable designed for high-bandwidth 10GBASE-T environments. This passive cable is built for 10 Gigabit Ethernet applications, providing a reliable connection for network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. The construction features high-quality, made in the USA stranded copper conductors with a 26 AWG wire gauge. To ensure signal integrity in high-speed environments, the cable includes 50-micron gold-plated contacts on the RJ-45 male connectors. The shielded STP construction, utilizing an aluminum foil shield, is engineered to protect critical 10 Gigabit network connections from noise, electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. This cable is rated for CMR riser applications and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. The snagless RJ45 design is intended to protect the clips from damage during high-frequency insertion cycles. This black, PVC-jacketed cable is TAA compliant, making it suitable for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 4 ft (1.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438373 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Will this Cat6a cable work for 10 Gigabit Ethernet?
Yes, this C2G43837 cable is designed for 10GBase-T ports and equipment, such as switches, routers, and network adapters, providing protection for high-speed connections.
Is this cable TAA compliant for government contracts?
Yes, the C2G43837 is TAA compliant and is approved for use in United States government projects and facilities.
What type of shielding does this Cat6a cable use?
This is a Shielded STP (ScTP) cable that uses an aluminum foil shield to counter EMI, RFI, and alien crosstalk in bandwidth-intensive applications.
What is the difference between this and other C2G series cables?
The C2G43837 is part of the TAA-Compliant F-Series, which features a snagless RJ45 design to protect the clips during frequent use.
Which document should I use for submittals for this part?
You can refer to the 'TAA Compliant F-Series Cat6a Snagless Shielded Network Cable' PDF document for detailed technical information.
