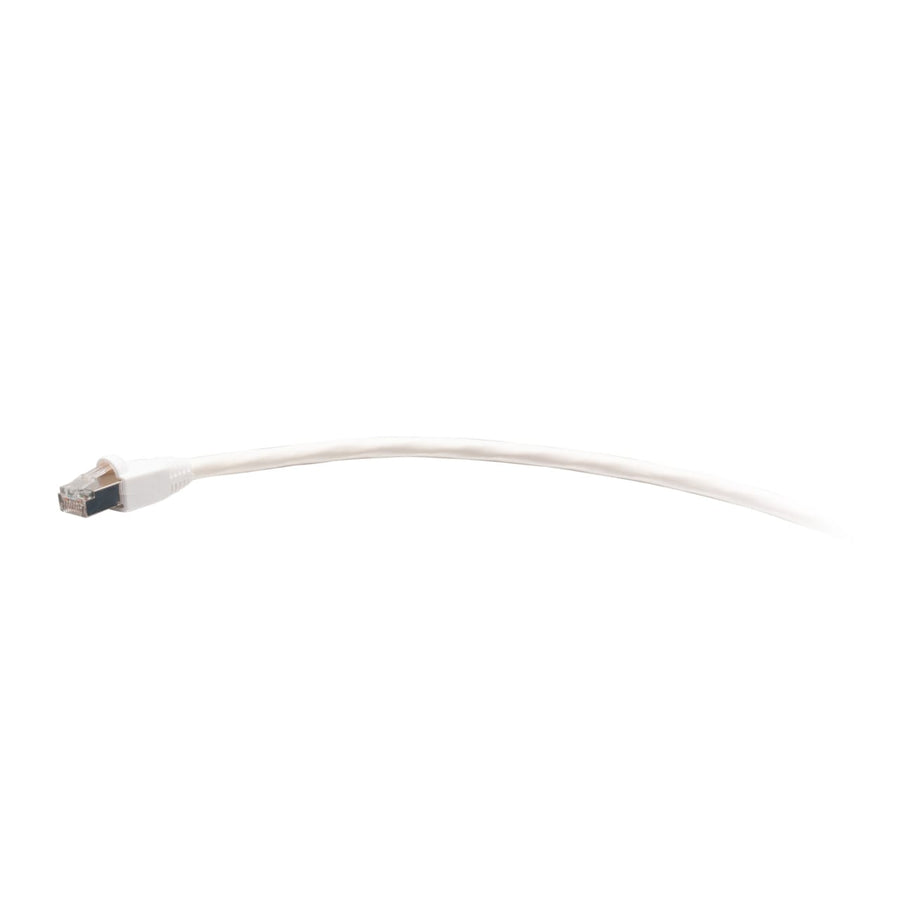

4ft (1.2m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - White
4ft TAA-compliant Cat6 STP shielded network cable in white, featuring snagless RJ45 connectors and CMR riser-rated PVC jacket
The C2G43781 is a 4ft (1.2m) TAA-compliant Cat6 snagless shielded (STP) network cable designed for mission-critical environments. This white, passive network cable is manufactured in the USA using high-quality copper conductors with stranded construction to ensure consistent and reliable performance. It features an aluminum foil shield (STP) to protect high-speed networks from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. Built to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, it supports 1000BASE-T (1 Gigabit Ethernet) applications. The cable utilizes 50-micron gold-plated contacts to maintain signal integrity and features a snagless RJ45 connector design, which protects the clips from damage during high insertion cycles. This CMR riser-rated cable with a 0.26 in (6 mm) diameter is suitable for connecting network adapters, hubs, switches, routers, and servers in environments requiring TAA compliance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 4 ft (1.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437819 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43781 TAA compliant for government contracts?
Yes, this is a TAA-compliant cable specifically approved for use in United States government projects and facilities.
What is the wiring scheme and connector type for this cable?
This cable features an RJ-45 male to RJ-45 male configuration using the T568B wiring scheme.
What type of shielding does the C2G43781 provide?
It uses Shielded Twisted Pair (STP) construction with an aluminum foil shield to protect against EMI, RFI, and alien crosstalk.
Is this cable suitable for riser applications?
Yes, this cable has a CMR rated jacket, making it suitable for riser applications.
What is the warranty for this network cable?
This product is backed by a lifetime warranty from C2G.
