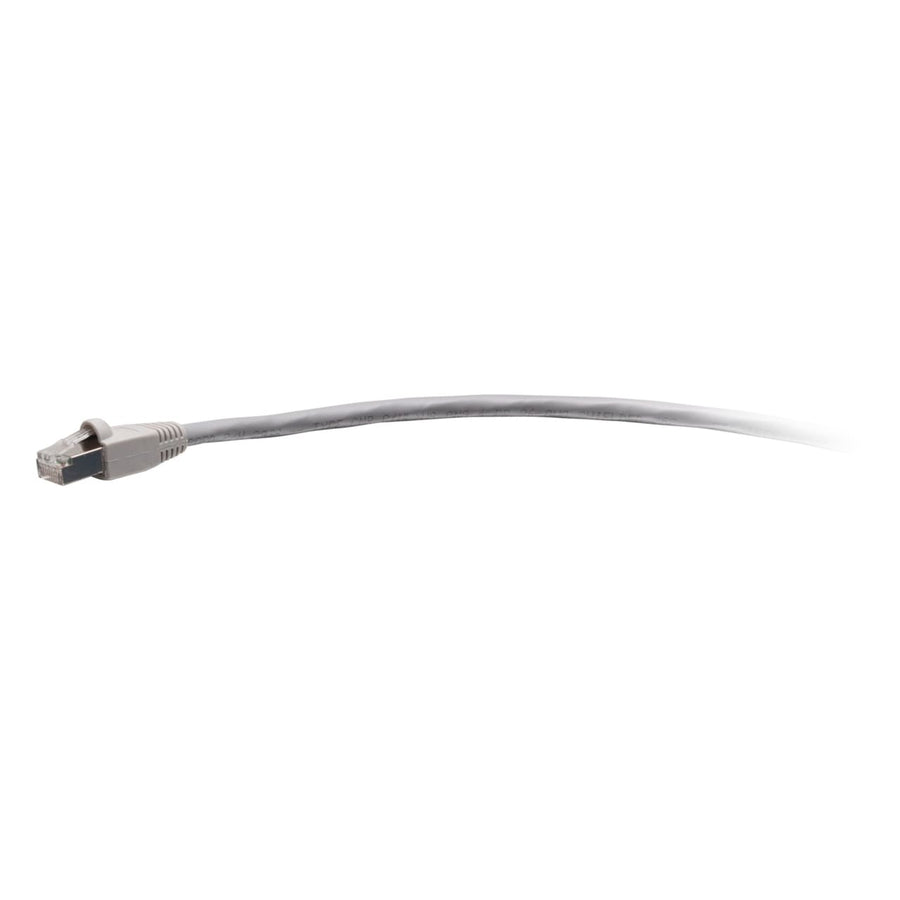

4ft (1.2m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Gray
4ft TAA-compliant Cat6 shielded STP patch cable with snagless RJ45 connectors and CMR rating
The C2G43711 is a 4 ft (1.2 m) TAA-compliant Cat6 shielded STP network cable designed for environments requiring high-speed connectivity with protection against electromagnetic interference. This passive cable utilizes an aluminum foil shield (STP) to counter EMI, RFI, and alien crosstalk, making it suitable for connecting network adapters, hubs, switches, routers, and servers. The cable features a snagless RJ45 connector design that protects the clips from accidental breakage, which is particularly beneficial for applications with high insertion cycles. Constructed with high-quality, made-in-the-USA copper stranded conductors, the cable ensures consistent and reliable performance. It is a CMR rated, riser-rated cable with a PVC jacket, meeting ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. For maximum signal integrity, the connectors include 50-micron gold-plated contacts. This gray cable is TAA compliant, making it approved for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 4 ft (1.2 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437116 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43711 TAA compliant?
Yes, this is a TAA-compliant F-Series network cable approved for United States government projects and facilities.
What is the wiring scheme for this Cat6 cable?
The C2G43711 follows the T568B wiring scheme and is a passive cable.
What type of shielding does this cable use to prevent interference?
This cable uses Shielded STP (Shielded Twisted Pair) with an aluminum foil shield to protect against EMI, RFI, and alien crosstalk.
Will this cable work for 1 Gigabit Ethernet applications?
Yes, it meets or exceeds ANSI/TIA-568.2-D standards for supporting applications including 1000BASE-T (1 Gigabit Ethernet).
What is the operating temperature range for the C2G43711?
The cable is rated for operating temperatures ranging from -4°F to 167°F (-20°C to 75°C).
