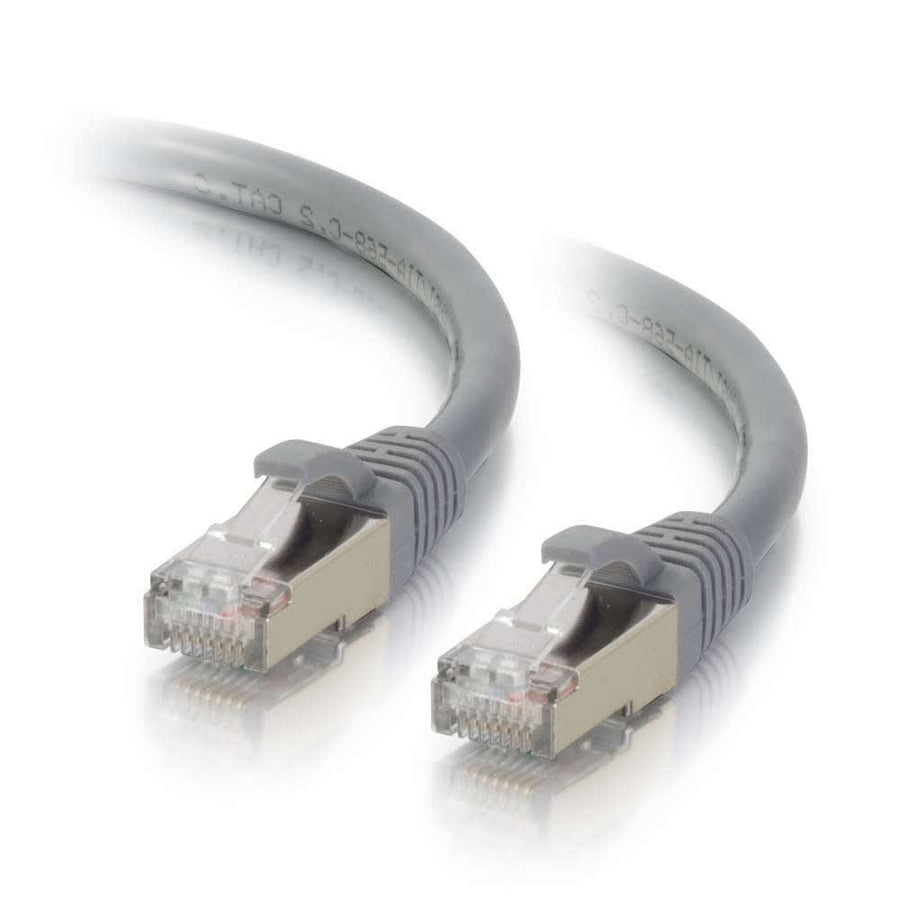

4ft (1.2m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Gray
4ft Cat6a snagless shielded STP patch cable, gray, designed for 10GBase-T high-speed networking applications
The C2G CG00641 is a 4ft (1.2m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable designed to support high-bandwidth 10GBase-T applications. This gray cable is engineered for use with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels, providing critical protection against noise and electromagnetic interference in sensitive environments. It features a stranded SSTP construction with 26AWG bare copper conductors to help maintain twist-spacing and reduce Near-End Crosstalk (NEXT) levels. Each individual pair is bonded to minimize impedance and structural return loss (SRL). The cable uses FMPE (Foam Polyethylene) insulation and a PVC jacket, with a minimum bend radius of 1.95 in (49.6 mm). This patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring reliable performance for voice, data, and video distribution.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 4 ft (1.2 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 544 lbs (246.8 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006411 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
4-Port Surface Mount Box
WP3504WH$4.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANsmart TDR Cable Tester
CG39002$786.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What applications is the C2G CG00641 suitable for?
This Cat6a patch cable is designed for 10GBase-T ports and equipment, including switches, routers, hubs, network adapters, and patch panels.
Is this cable suitable for high-interference environments?
Yes, the shielded STP (SSTP) construction is designed to protect high-speed 10 Gigabit network connections from noise and electromagnetic interference.
What are the physical dimensions of this patch cable?
The cable is 4 ft (1.2 m) in length with a cable diameter of 0.24 in (6.2 mm) and a bend radius of 1.95 in (49.6 mm).
What wiring scheme does this cable use?
The CG00641 follows the 568B wiring scheme for standard installation.
What certifications does this product hold?
This cable is tested to ANSI/TIA 568 C.2 Cat6a component requirements and carries CE, RoHS, and REACH certifications.
