45W Multi-Mount Universal DC Power Distribution for Small to Medium Devices
45W DC power distribution unit with 12 outputs, providing 5V and 12V power for small to medium devices
The Middle Atlantic PD-DC-45 is a DC Power Distribution unit designed to consolidate messy wall warts and power strips into a single rack-mountable solution for AV, security, and networking applications. This unit provides 45W of total power across 12 outputs, specifically splitting between 5V and 12V DC voltages to support a variety of small to medium devices. The PD-DC-45 features a 120 VAC input with a NEMA 5-15P plug and an included 6 ft (1.8 m) US cord. To protect connected equipment, the unit includes 2-stage surge protection and overload protection on the AC input, alongside auto-resetting PTC overload protection on each individual output. The unit's 1.69 in (4.3 cm) height and 9.93 in (25.2 cm) width allow it to fit into standard rack spaces, while reversible, adjustable mounting ears allow for installation in a typical rack, small enclosure, or wall box. For easier cable management, installers can trim the power cords to a desired length. The unit is equipped with an ultra-quiet, thermostatic temperature-controlled fan that provides automatic speed adjustment to prevent overheating during operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 VAC |
| Amps | 10 Amp |
| Cord Length | 6 ft (1.8 m) |
| Depth | 5.03 in (12.8 cm) |
| Height | 1.69 in (4.3 cm) |
| Shipping Weight | 4.5 lbs (2 kg) |
| Storage Temperature | -40° F to 185° F (-40° C to 85° C) |
| Volts DC | 5 V, 12 V |
All other specifications 13
| Watts | 45 W |
| Width | 9.93 in (25.2 cm) |
| Available Internationally | No |
| Cable Type | Corded |
| Color | Black |
| Multi-Mount | No |
| Outlet Count | 12 |
| Plug Type | NEMA 5-15P |
| Power Cord | US Cord |
| Surge Protection Type | 2-Stage |
| TAA Compliant | No |
| UPC | 656747258343 |
| Certifications | UL Listed |
Resources
Questions about this part
What DC voltages can I get from the PD-DC-45?

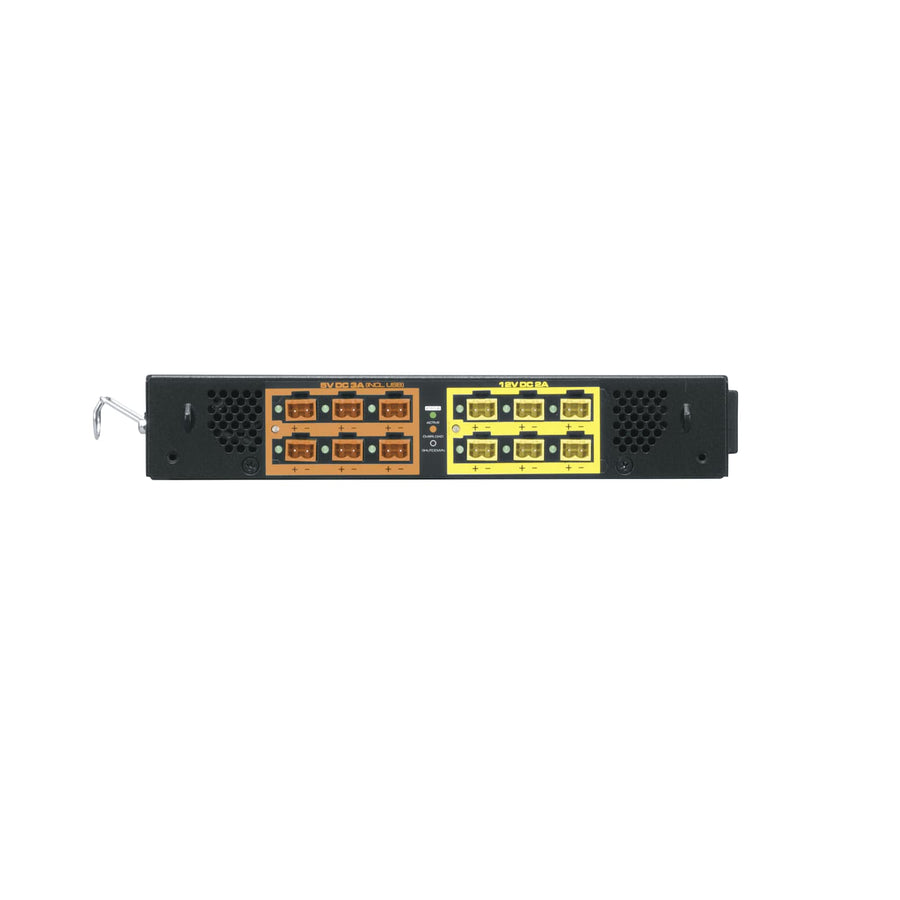

This unit provides two voltage options: 5V and 12V DC. The 5V outputs are identified by orange connectors, while 12V outputs use yellow connectors.
Will the PD-DC-45 work with my 24V or 18V devices?
No, the PD-DC-45 is specifically configured for 5V and 12V outputs only. Other voltages like 18V and 24V are not supported by this specific model.
What is the power capacity of this distribution unit?
The PD-DC-45 provides a total of 45W of power across its 12 outputs, utilizing a 120 VAC input with a 10 Amp capacity.
How is the unit protected against power surges?
The unit features 2-stage surge protection and overload protection on the AC input. Additionally, each individual output features auto-resetting PTC overload protection.
What tools are needed for installation?
Installers will need tools to mount the unit, as it features reversible, adjustable mounting ears for rack, enclosure, or wall box mounting.
