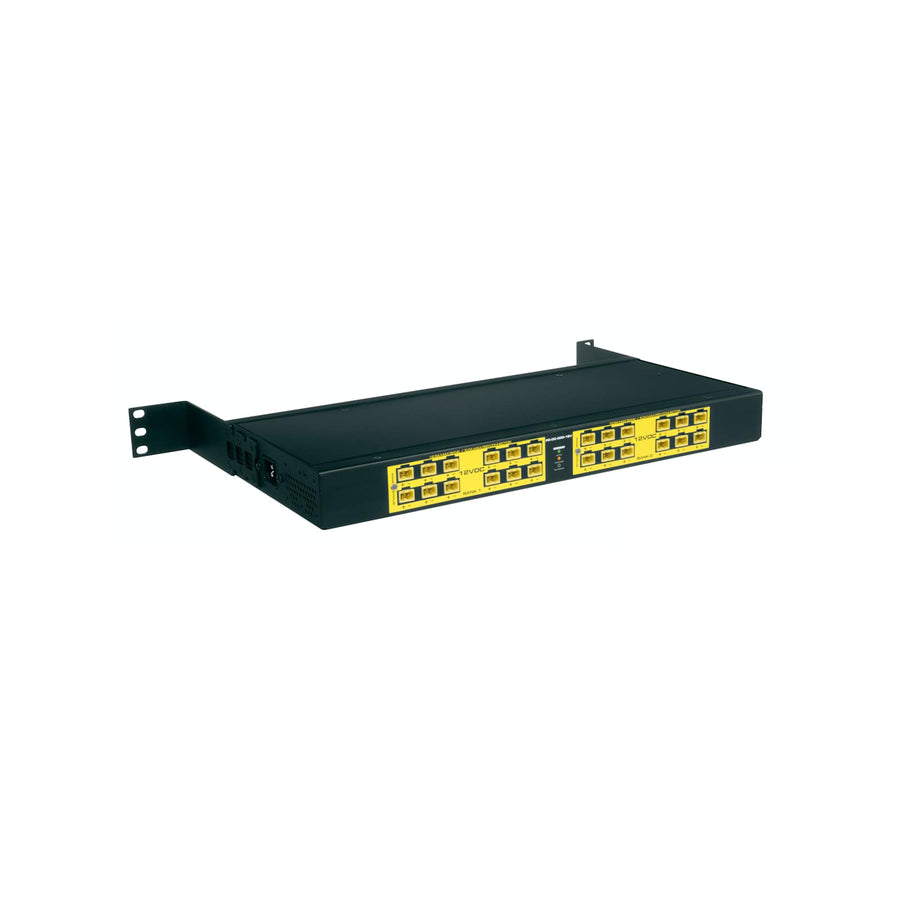

300W Maximum Power DC Power Distribution With 12V Outputs
300W DC power distribution with 24 12VDC outputs, featuring color-coded terminals and 2-stage surge protection
The Middle Atlantic PD-DC-300-12V is a 300W Select Series DC Power Distribution unit designed to consolidate messy wall warts and power strips into a clean rack-mounted solution. This unit provides 12VDC power through 24 individual screw terminal outputs, allowing installers to manage high current requirements for security, networking, or AV equipment within a single 1U chassis. Each output features auto-resetting PTC overload protection and an individual LED indicator light to monitor activity and capacity. To facilitate easier wire management, the included power cords can be trimmed to the exact length required for the installation. The unit includes 2-stage surge protection and overload protection on the AC input to protect connected equipment. Cooling is managed by an ultra-quiet, thermostatic temperature-controlled fan that automatically adjusts its speed to prevent overheating. For installation versatility, the PD-DC-300-12V features reversible, adjustable mounting ears that allow for rack mounting, side mounting, or mounting to the back of a rack.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 100-240 V |
| Amps | 10 Amp |
| Cord Length | 6 ft (1.8 m) |
| Depth | 7.26 in (18.4 cm) |
| Height | 1.75 in (4.4 cm) |
| Shipping Weight | 8.1 lbs (3.7 kg) |
| Storage Temperature | -40° F to 185° F (-40° C to 85° C) |
| Volts DC | 12 VDC |
All other specifications 13
| Watts | 300 W |
| Width | 19 in (48.3 cm) |
| Available Internationally | No |
| Cable Type | Corded |
| Color | Black |
| Multi-Mount | Yes |
| Outlet Count | 24 |
| Plug Type | NEMA 5-15P |
| Power Cord | US Cord |
| Surge Protection Type | 2-Stage |
| TAA Compliant | No |
| UPC | 656747346484 |
| Certifications | UL Listed |
Resources
Questions about this part
The PD-DC-300-12V is designed for standard 19-inch rack widths and includes adjustable, reversible mounting ears for flexible installation in racks, on sides, or on the back of a rack enclosures.
The PD-DC-300-12V is designed for standard 19-inch rack widths and includes adjustable, reversible mounting ears for flexible installation in racks, on sides, or on the back of rack enclosures.
What is the maximum power capacity for this unit?
This unit provides 300W of total power at 12VDC, supporting up to 24 individual device outputs via screw terminal connectors.
What do the different colored connectors on the PD-DC-300-12V represent?
The unit uses color-coded screw terminal connectors for quick identification: orange for 5V, yellow for 12V, red for 24V, and blue for 18V.
How do I know if an output is overloaded or inactive?
Each of the 24 outputs features an individual LED indicator light that displays activity and alerts you when a voltage bank has reached maximum capacity.
What document should I use for submittals or installation?
For technical installation details, you can refer to the PD-DC-300-12V Instruction Sheet or the DC Power Technical Specification (dwg) available in the resources tab.
