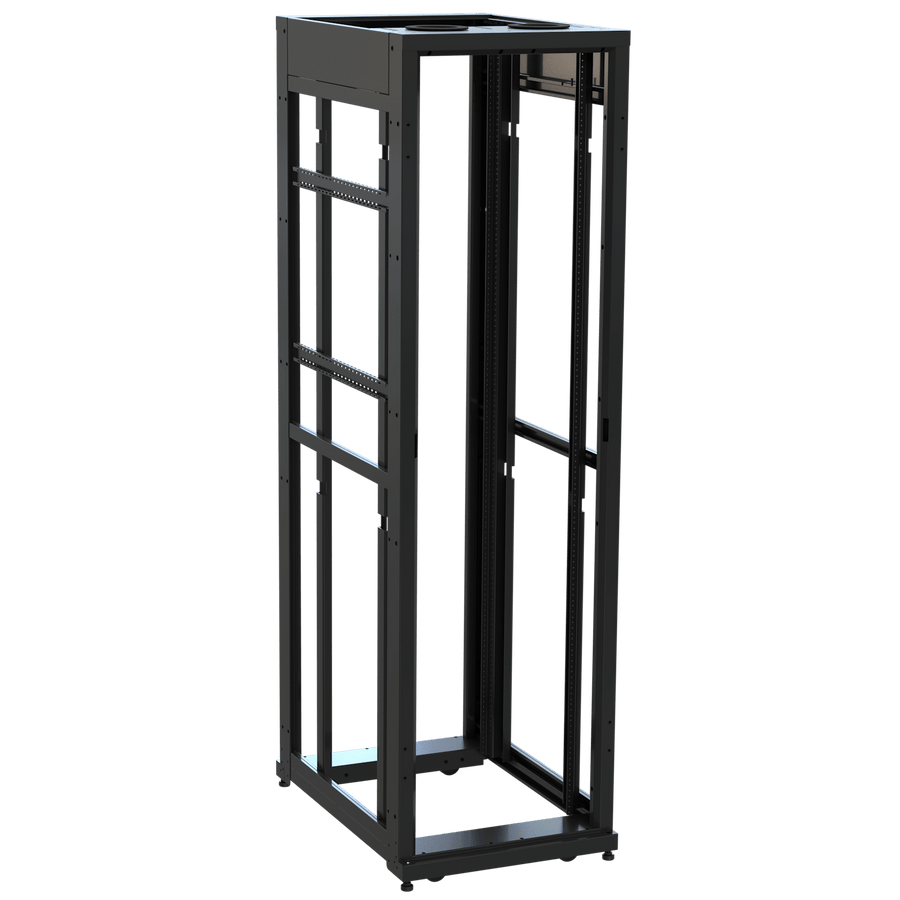

45 RU SNE Series Rack Frame, 36 Inches Deep, 24 Inches Wide with 10-32 Rackrail
45 RU SNE Series floor-standing rack frame, 24.04" W x 36" D, seismic rated, TAA compliant, and UL listed
The SNE24F-4536 is a 45 RU SNE Series Rack Frame designed for high-performance security and network infrastructure. This floor-standing frame provides a robust foundation for IP networking, analog, digital, and hybrid systems. It features a width of 24.04 in (61.1 cm) and a depth of 36 in (91.4 cm), offering a usable depth of 32.48 in (82.5 cm) and a usable height of 78.75 in (200 cm). This frame is engineered for demanding environments, holding a UL Load Capacity of 3000 lbs (1,360.8 kg). It is seismic rated and TAA compliant, making it suitable for secure federal or high-traffic installations. The unit is gangable, allowing for expansion in larger configurations. It ships with four leveling feet and four casters to facilitate precise installation and mobility. This specific SKU is part of a series being discontinued on December 1, 2026; the recommended replacement is the WMRK-4536.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 36 in (91.4 cm) |
| Height | 84.9 in (215.7 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 221 lbs (100.2 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 32.48 in (82.5 cm) |
| Usable Height | 78.75 in (200 cm) |
| Width | 24.04 in (61.1 cm) |
All other specifications 9
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Rack Rail Type | 10-32 |
| Seismic Rated | Yes |
| System Type | Frame only |
| TAA Compliant | Yes |
| UPC | 656747232138 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
45 RU Vertical Cable Fingers
SNE-IVCMF-45$173.70
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30

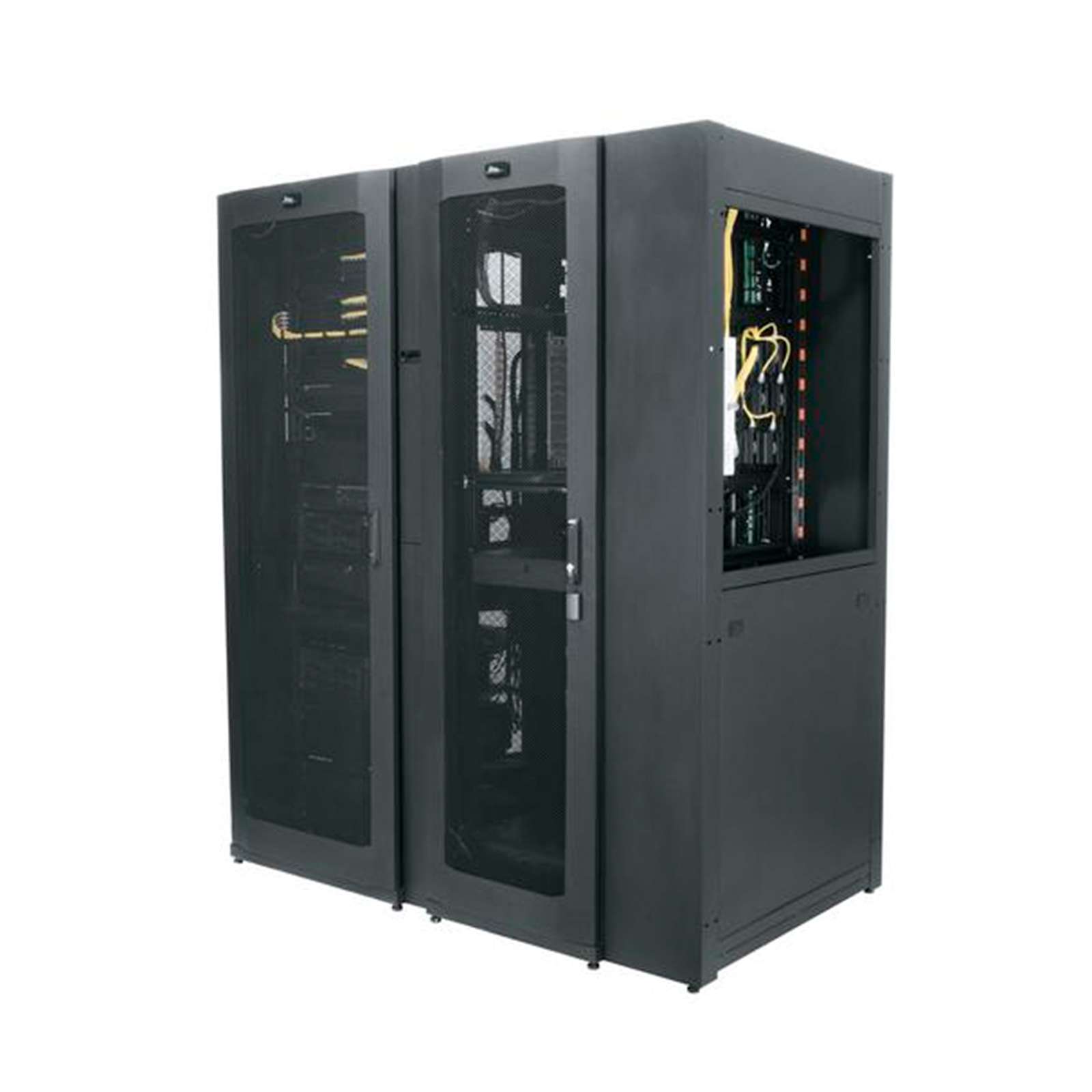

45 RU SNE Series Cable Chase, 36 Inches Deep
SNE-CCE12-4536$1,188.90
45 RU Cable Chase Front/Back Section
SNE-CC-45FB$365.40
45 RU Rackrail 10-32 for 24 Inch Wide SNE Series
SNE24-1032-RR45$360.00
45 RU Side Panels for 36 Inch Deep SNE Racks
SNE-SPN-4536$691.20
45 RU Vented Door (64%) for 24 Inch SNE Rack
SNE24-LVD-45$562.50

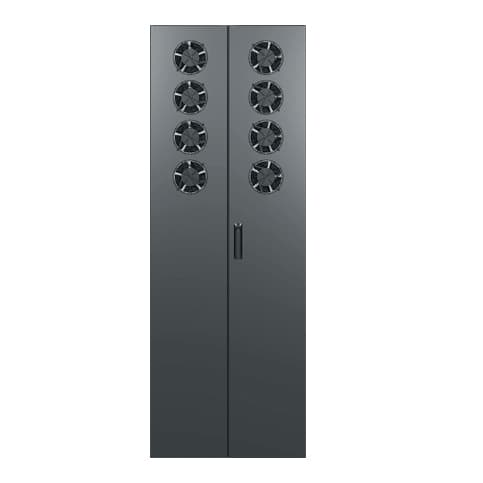

45 RU Split Fan Door for 24 Inch SNE Rack
SNE24-CFD-45$2,095.20

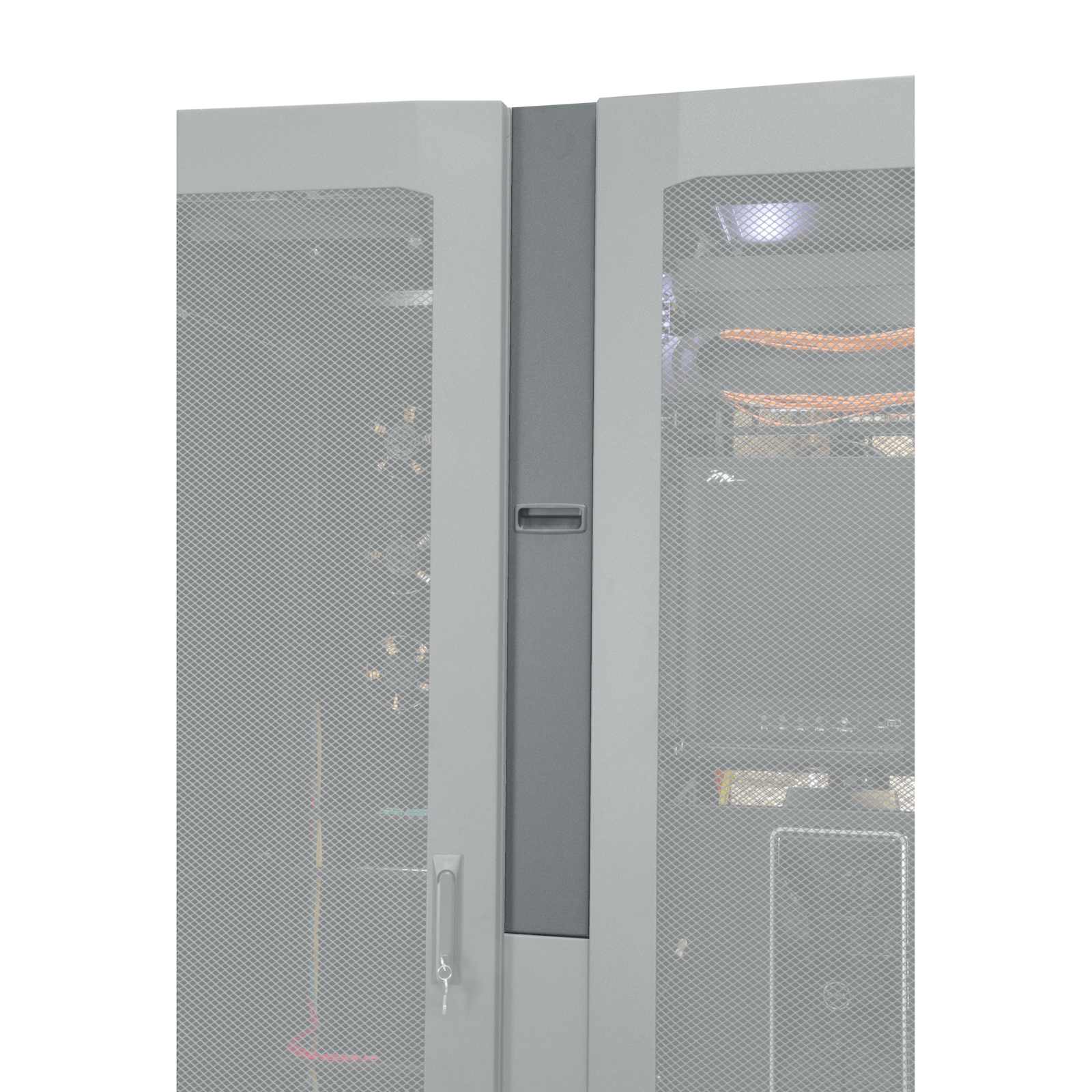

Cable Chase Top Section 36 Inches Deep for SNE-CC Series
SNE-CC-36LT$117.00
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Questions about this part
Will the SNE24F-4536 fit my equipment depth?
The frame has a 36 in (91.4 cm) total depth and provides 32.48 in (82.5 cm) of usable depth for your equipment.
What accessories are needed to complete this rack enclosure?
This is a frame-only system. To create a full enclosure, you may need side panels (SNE-SPN-4536), a vented door (SNE24-LVD-45), or a split fan door (SNE24-CFD-45).
Is this rack suitable for seismic-prone areas?
Yes, the SNE24F-4536 is seismic rated and UL listed, making it suitable for environments requiring high structural integrity.
Does this rack support vertical cable management?
The frame is compatible with SNE-IVCMF-45 45 RU Vertical Cable Fingers to assist with cable routing.
What is the recommended replacement for this model?
As this product is being discontinued on December 1, 2026, Middle Atlantic recommends the WMRK-4536 as the replacement.
