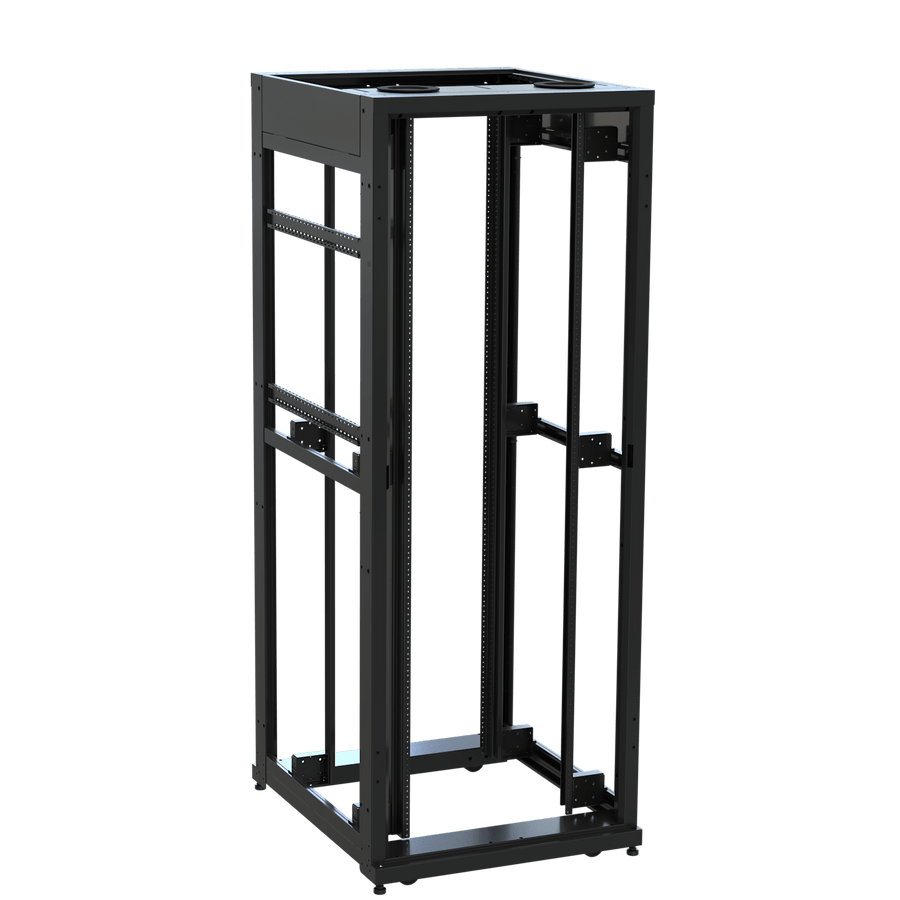

42 RU SNE Series Rack Frame, 36 Inches Deep, 30 Inches Wide with 10-32 Rackrail
42 RU floor-standing rack frame, 36" deep, 30" wide, featuring seismic rating and 10-32 threaded rackrails
The Middle Atlantic SNE30F-4236 is a 42 RU floor-standing rack frame designed to serve as the foundation for high-density security and network enclosures. Built to accommodate the rigorous demands of IP networking, analog, digital, and hybrid systems, this frame is seismic rated and UL listed. It features a 36 in (91.4 cm) overall depth with a usable depth of 32.48 in (82.5 cm) and an overall height of 79.65 in (202.3 cm). The 30.04 in (76.3 cm) width provides ample space for cable management, while the 10-32 threaded rackrail type allows for secure component mounting. This frame is TAA compliant and manufactured in the USA. For installations requiring modularity, the SNE30F-4236 is gangable, allowing multiple frames to be joined. This specific SKU is part of the SNE Series, which is scheduled for discontinuation on December 1, 2026; the manufacturer recommends the DRK19-44-36 as the replacement model.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 36 in (91.4 cm) |
| Height | 79.65 in (202.3 cm) |
| Rack Units | 42 RU |
| Shipping Weight | 229 lbs (103.9 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 32.48 in (82.5 cm) |
| Usable Height | 73.5 in (186.7 cm) |
| Width | 30.04 in (76.3 cm) |
All other specifications 9
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Rack Rail Type | 10-32 |
| Seismic Rated | Yes |
| System Type | Frame only |
| TAA Compliant | Yes |
| UPC | 656747232244 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
1 RU Utility Panel, 10 Piece
UP1P$190.80
1 RU Utility Panel
UP1$25.20
1 RU Plastic Cable Manager, 4 Inches Deep
PHCM-1-4$54.90
2 RU Plastic Cable Manager, 3 Inches Deep
PHCM-2-3$61.20
1 RU Plastic Cable Manager, 2 Inches Deep
PHCM-1-2$51.30
Cable Spool Panel 2 RU 3 Inches Deep
PCS-3-2H$101.70
Cable Spool Panel 2 RU 1-3/8 Inches Deep
PCS-1-2H$94.50
Lace Bar 4 Inch Offset, L-Shaped - 10 Pieces
LBP-4A$118.80
Lace Bar 2 Inch Offset, L-Shaped - 10 Pieces
LBP-2A$105.30

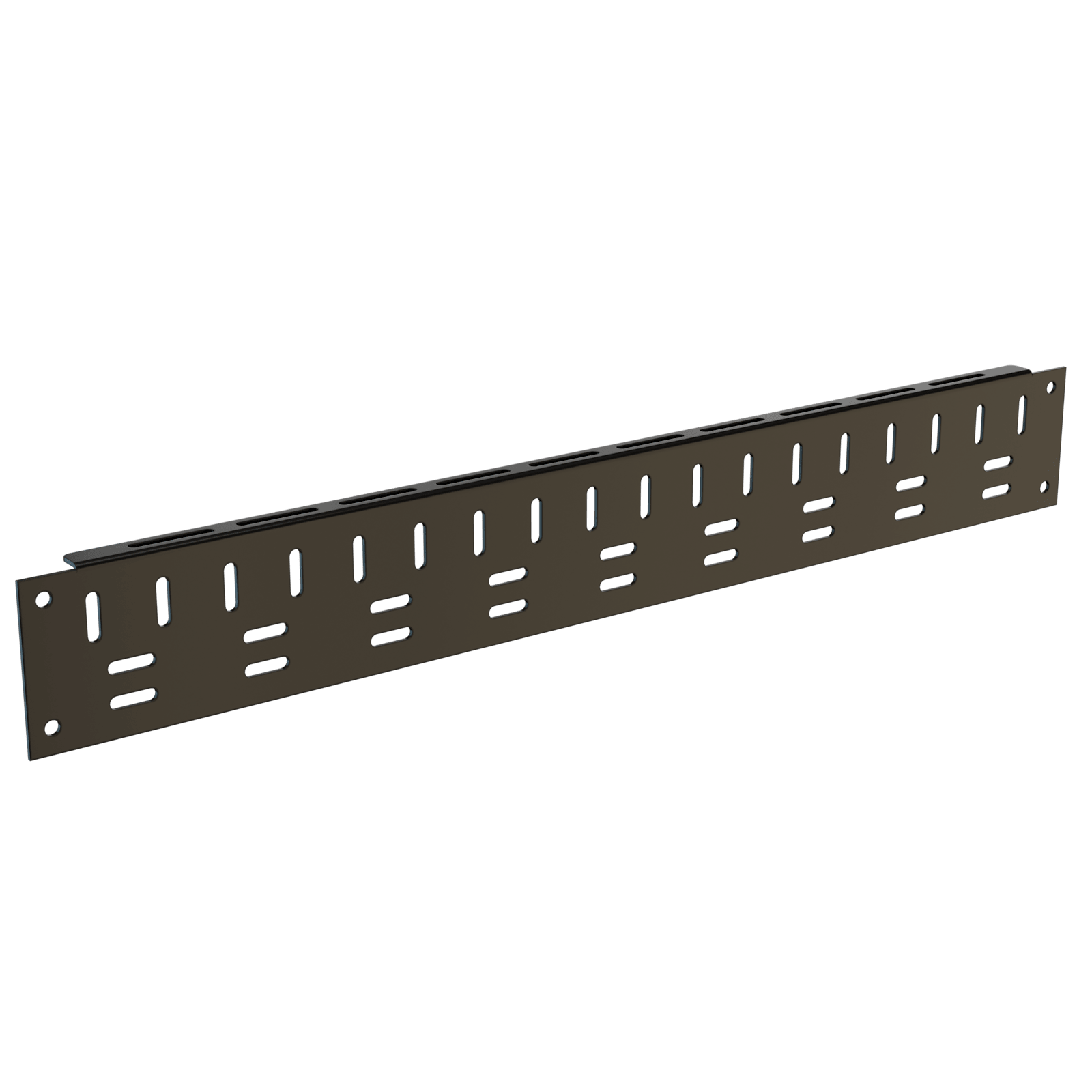

Lacer Panel 2 RU Flanged - 10 Pieces
LBP-LTF$197.10
Lace Bar 6 Inch Offset, L-Shaped - 10 Pieces
LBP-6A$130.50
Questions about this part
What is the replacement for the SNE30F-4236?
The manufacturer recommends the DRK19-44-36 as the replacement for this discontinued series.
Is the SNE30F-4236 seismic rated?
Yes, this frame is seismic rated and UL listed, making it suitable for high-security and network environments.
What type of rackrails are included with this frame?
This frame includes (2) pairs of 10-32 Threaded Rackrails.
What is the usable depth for equipment mounting?
While the overall depth is 36 in (91.4 cm), the usable depth is 32.48 in (82.5 cm).
What accessories are compatible with this rack?
This frame is compatible with various accessories, including Select Series PDUs like the RLNK-215 and various lace bars and cable managers.
