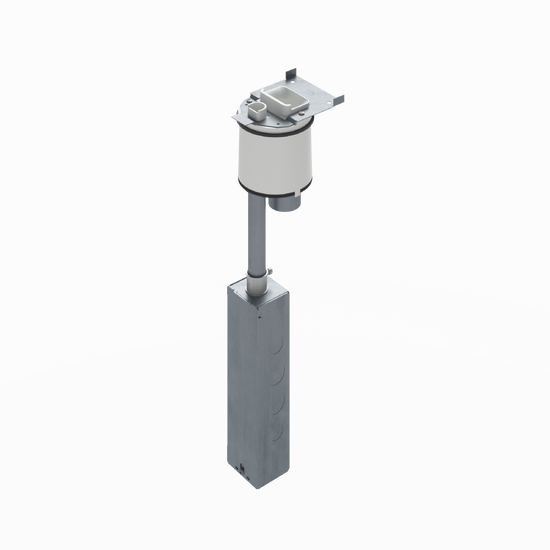

4 inch Poke Thru Transition for Connectrac Flex
4-inch poke-thru transition for Connectrac Flex Raceway, compatible with on-floor and under-carpet systems
The Connectrac CTPT4 is a 4-inch poke-thru transition designed to initiate a Connectrac Flex Raceway system at any point in a concrete floor. This allows installers to provide power and data in open floor plans where the nearest wall is too distant to feed the raceway. This unit fits into a 4" core-drilled opening, making it suitable for both new construction projects and retrofits. It is compatible with both the on-floor and under-carpet versions of the Flex Raceway system. To complete the installation of the Flex system, this unit must be paired with an appropriate entrance fitting. This transition is UL listed and features intumescent material that maintains the floor's 2-hour fire rating.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Height | 4 in (10.2 cm) |
| Length | 19 in (48.3 cm) |
| Product Weight | 0.05 lbs (0 kg) |
| Width | 5.625 in |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
You'll need these with it

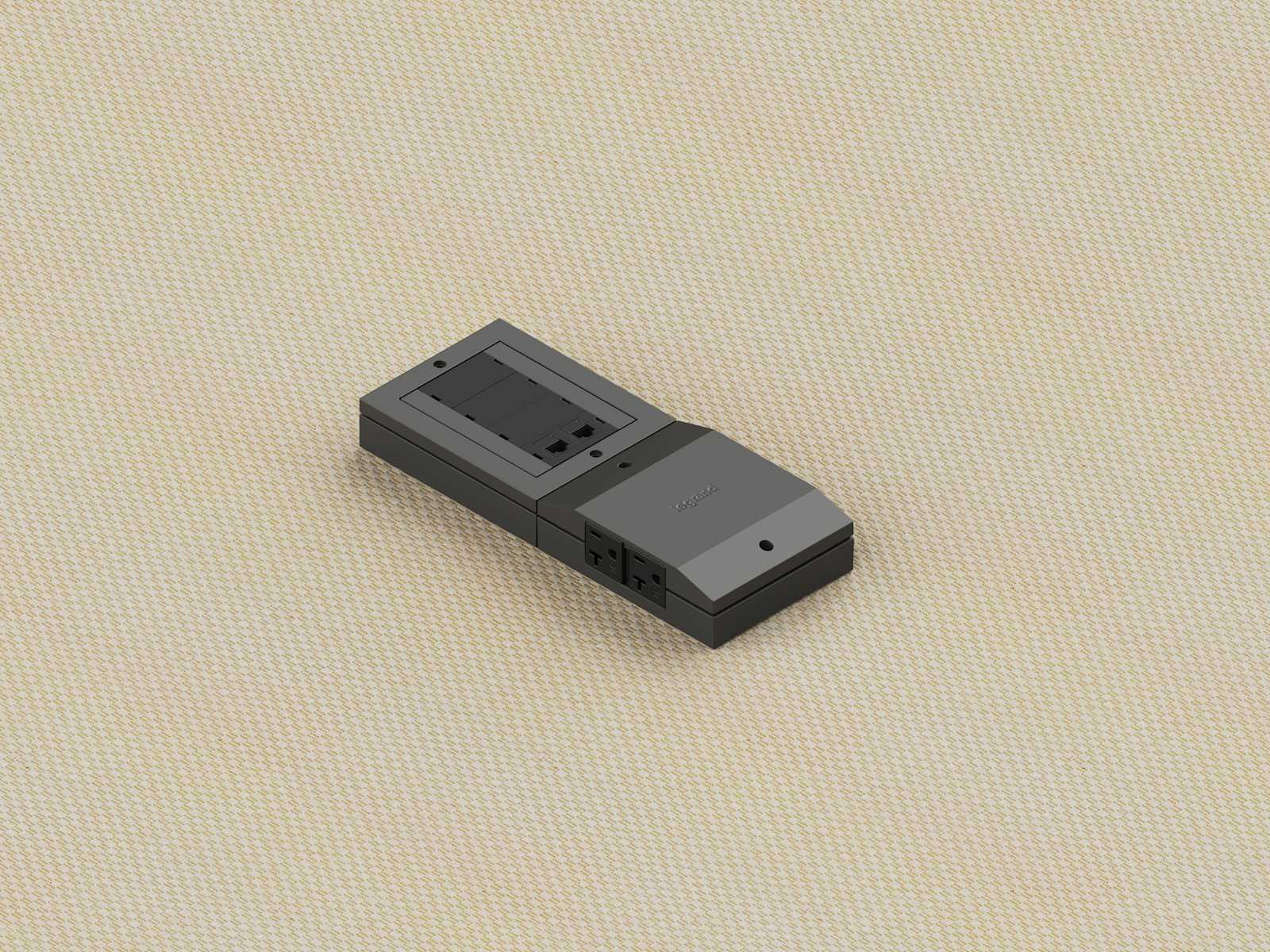

6 FT Express Under Carpet Tile Kit Tamper Resistant
XPU6KTR$1,777.77

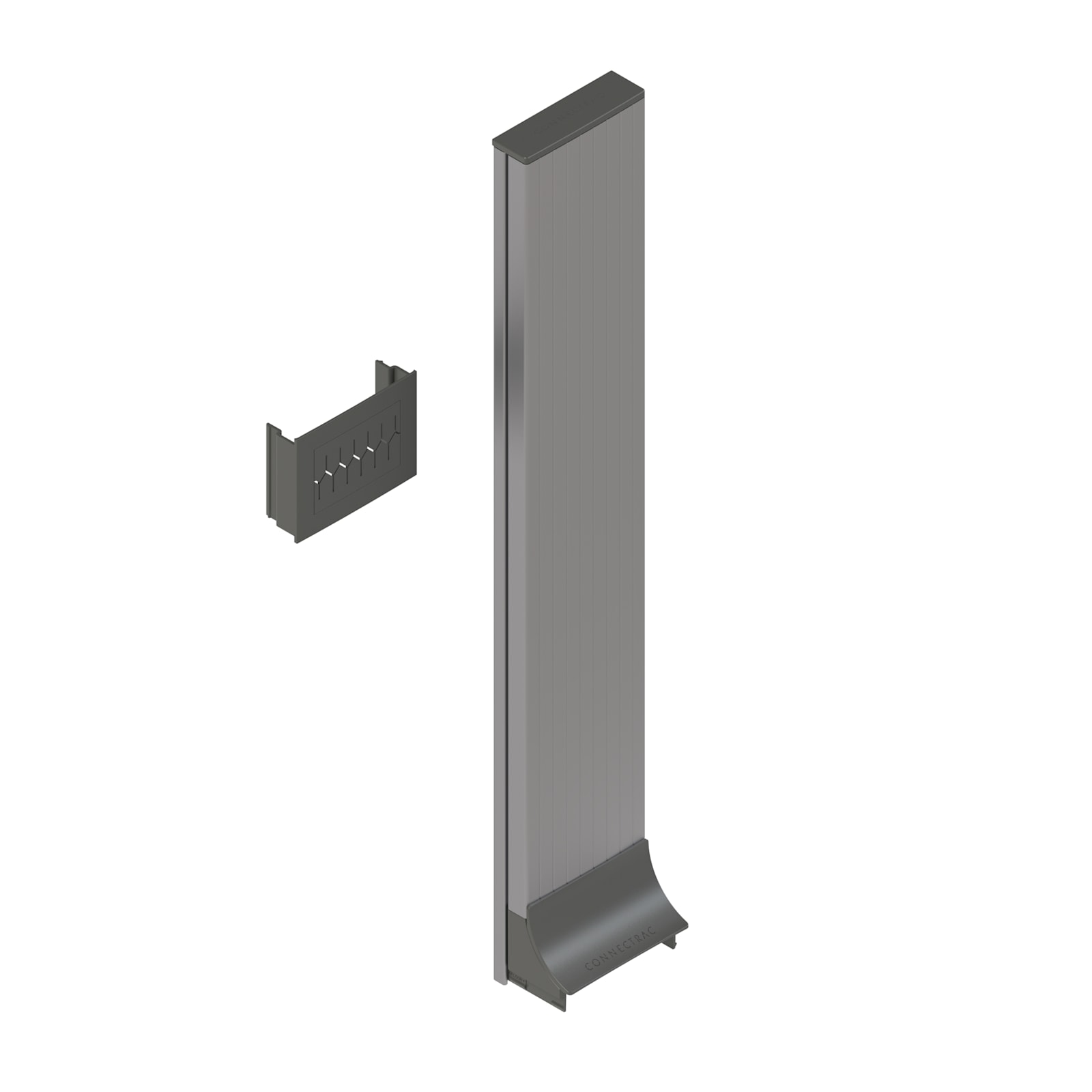

2-Foot Express Walltrac
XPWT2-SV$463.32
Flex Raceway Top Cover and Datatrac FX-XPU-3TB
FX-XPU-3TB$163.82

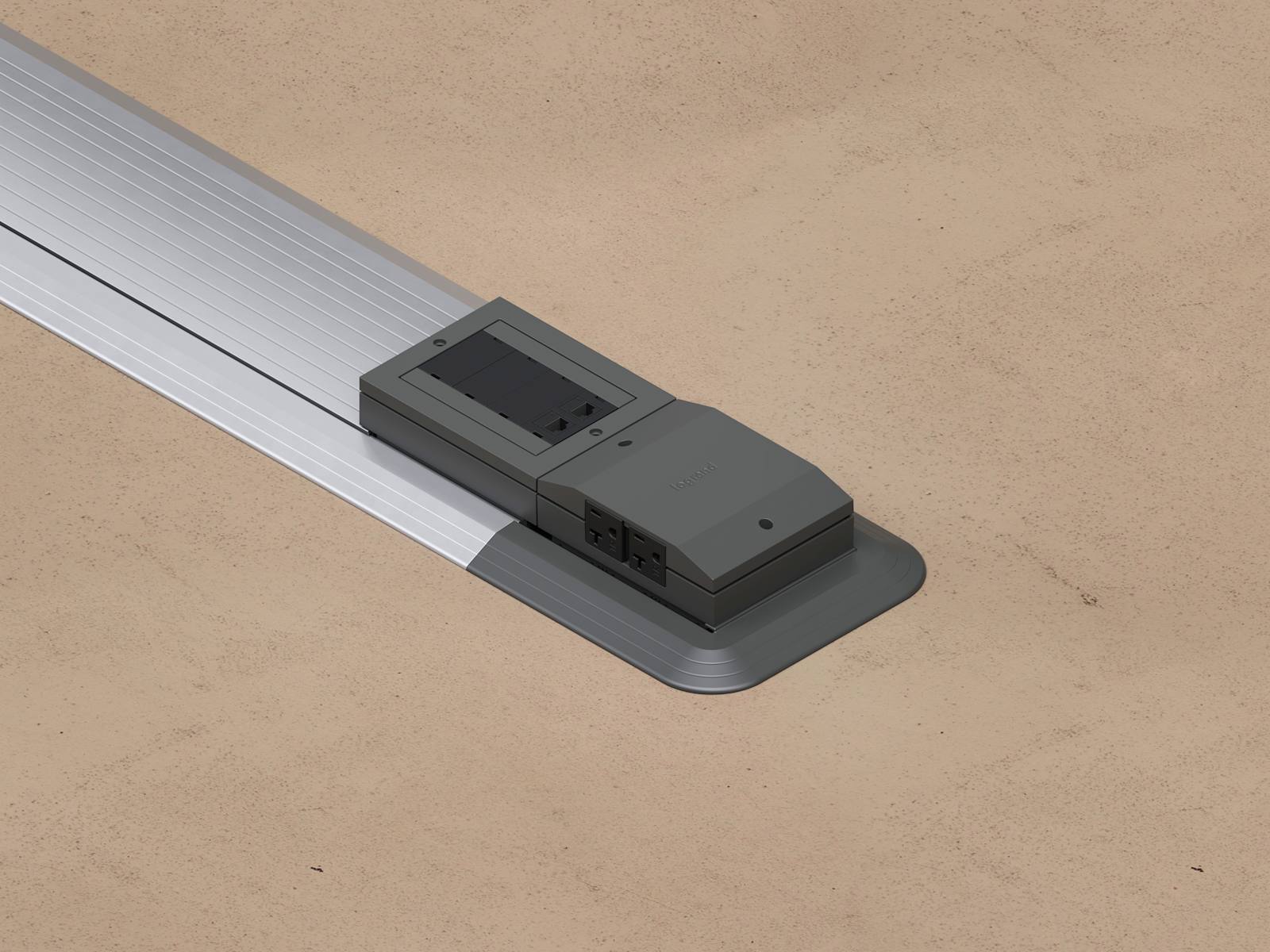

6 FT Express On-Floor Kit Tamper Resistant
XPO6KTR-SV$1,678.89

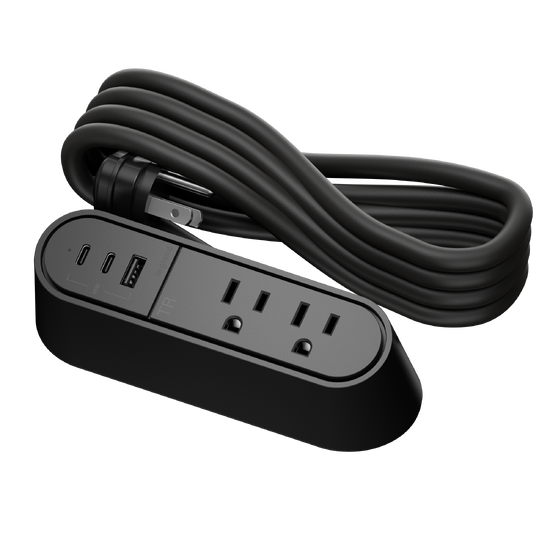

WSPC220C65BK Desktop Power Center in Black
WSPC220C65BK$137.20

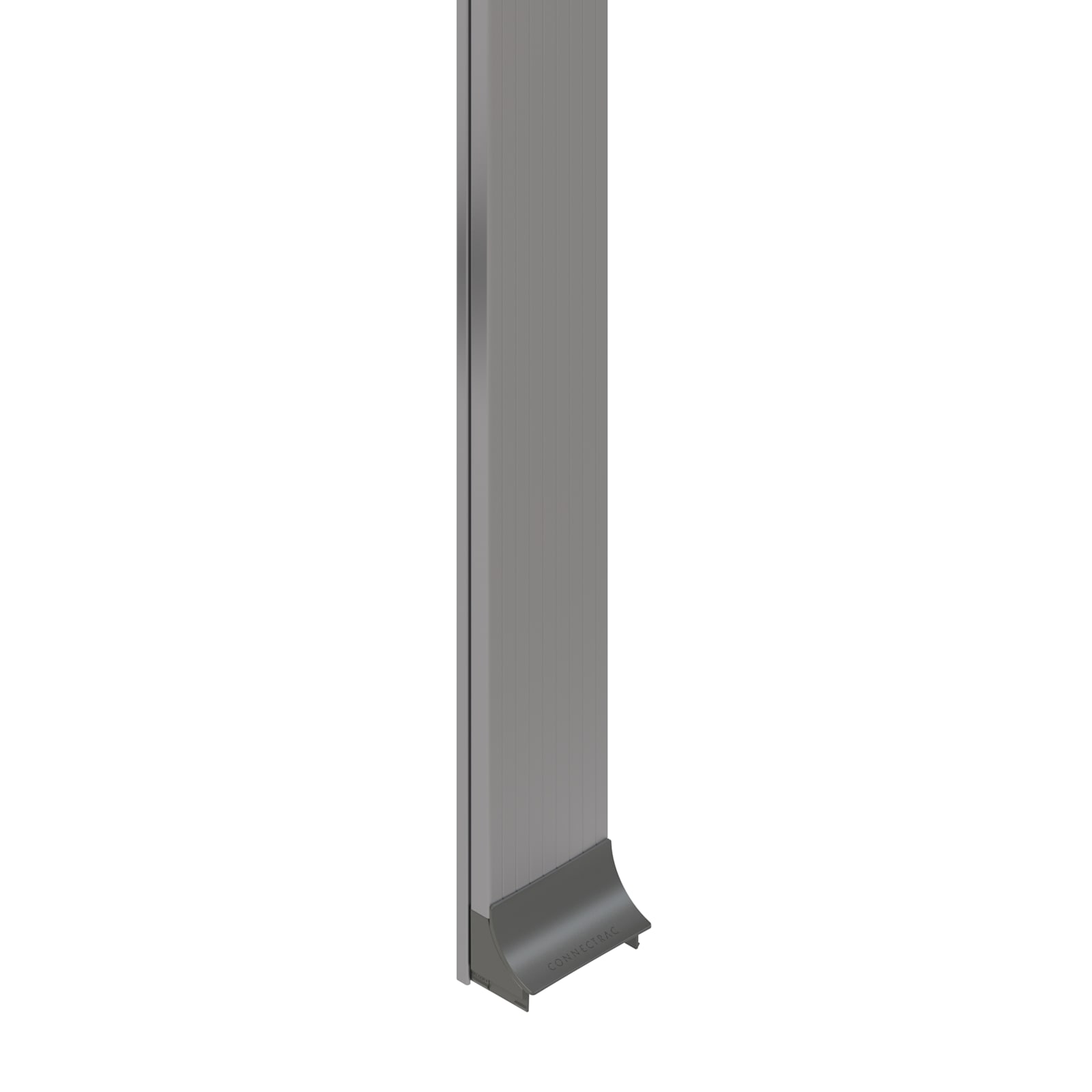

12-Foot Express Walltrac
XPWT12-SV$697.00

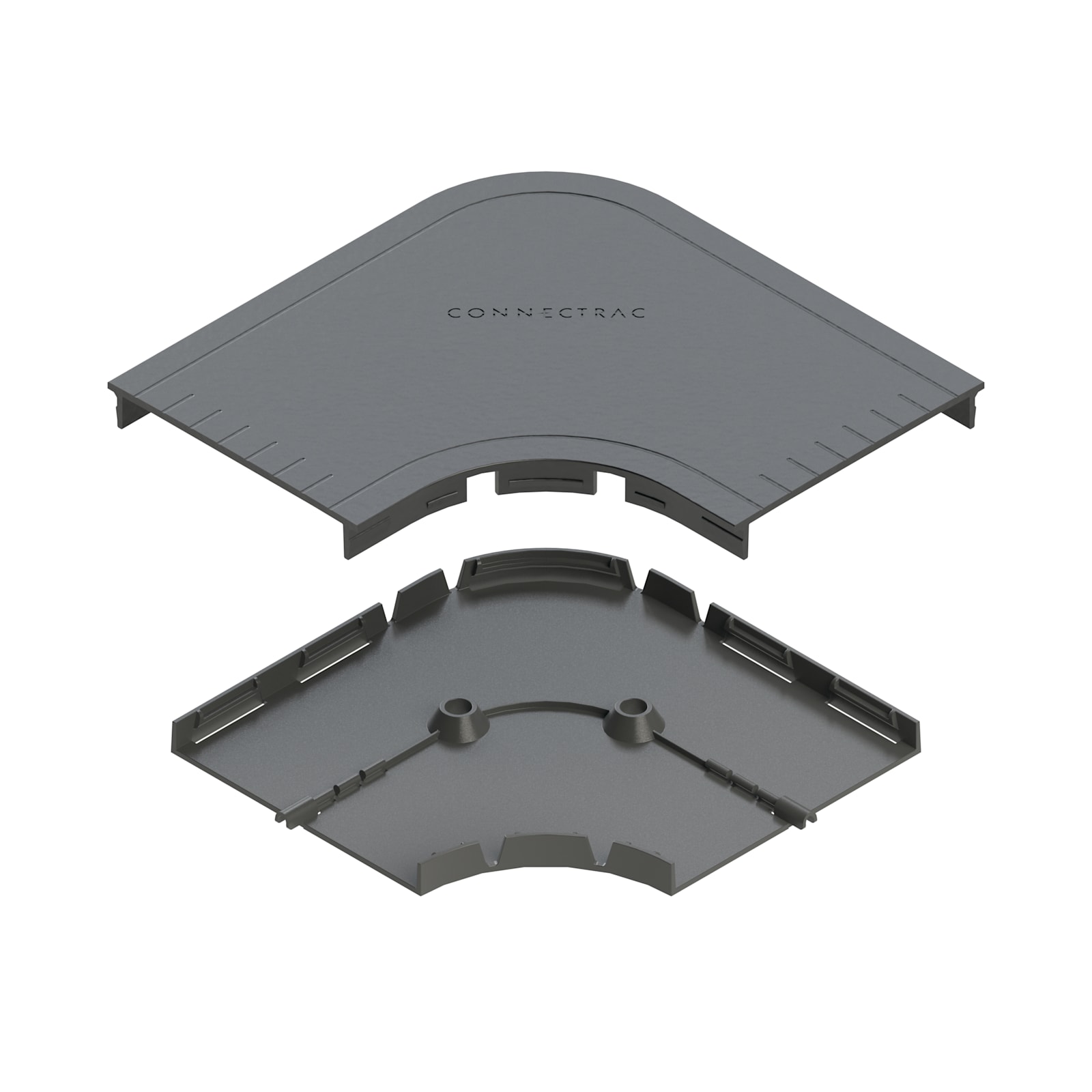

Express Under Carpet 90 Degree Corner Kit
XPU90$365.31
Flex Raceway Top Cover and Datatrac FX-XPU-6TB
FX-XPU-6TB$304.76
Questions about this part
What do I need to buy to complete a Flex Raceway installation with this poke-thru?
The CTPT4 requires a separate Connectrac Flex entrance fitting to fully start the raceway system.
Will this work with an under-carpet installation?
Yes, this transition is compatible with both the on-floor and the under-carpet Flex Raceway systems.
Does this transition help maintain the floor's fire rating?
Yes, it uses intumescent material to maintain the fire rating of the floor for up to 2 hours.
Can I use this for a retrofit in an existing core hole?
Yes, the 4" core size allows for drop-in replacement in existing 4" poke-thru openings.
Is the CTPT4 UL listed?
Yes, this product is UL listed and meets the necessary safety requirements for floor transitions.
