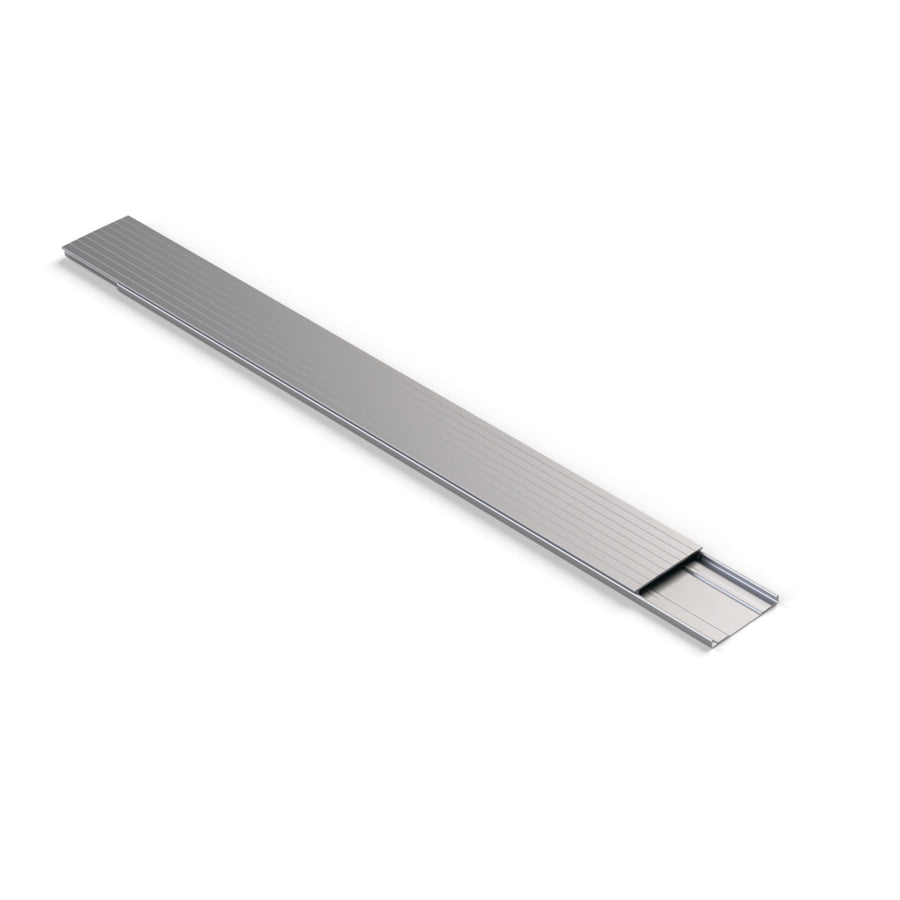

Flex Raceway Top Cover and Datatrac FX-XPU-6TB
6 ft data channel consisting of a bottom Datatrac and Top Cover to add capacity to Express Under-Carpet Kits
The FX-XPU-6TB is a 6 ft (1.8 m) data channel designed to expand the capacity of an existing installation. This product consists of both a bottom Datatrac and a Top Cover. When ganged alongside a main Express Under-Carpet Raceway Kit, these channels allow an installer to add more data capacity to a run. Each individual data channel is designed to hold up to 10 cables for the Express Under-Carpet Kit. This specific SKU is a replacement for the former part number CT.B-RCD.1-FX-06; the product itself remains unchanged under the updated naming convention for clarity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Height | 0.88 in (2.2 cm) |
| Length | 6 ft (1.8 m) |
| Product Weight | 5.73 lbs (2.6 kg) |
| Width | 4.25 in |
| UPC | 810056053109 |
Resources
You'll need these with it
Questions about this part
How do I increase data capacity in an existing Express Under-Carpet installation?
You can gang this FX-XPU-6TB data channel alongside your main Express Under-Carpet Raceway Kit to add a second channel that holds up to 10 cables.
What is the difference between the FX-XPU-6TB and the older CT.B-RCD.1-FX-06?
There is no change to the physical product; the FX-XPU-6TB is simply the updated SKU used for consistency and clarity.
Can this be used as a standalone raceway?
This SKU is a data channel designed to be used alongside the main Express Under-Carpet Raceway Kit, which includes the necessary base components.
Is this product ADA compliant?
Yes, this raceway system meets ADA compliance standards for floor-mounted installations.
What other parts are compatible with the Flex Raceway system?

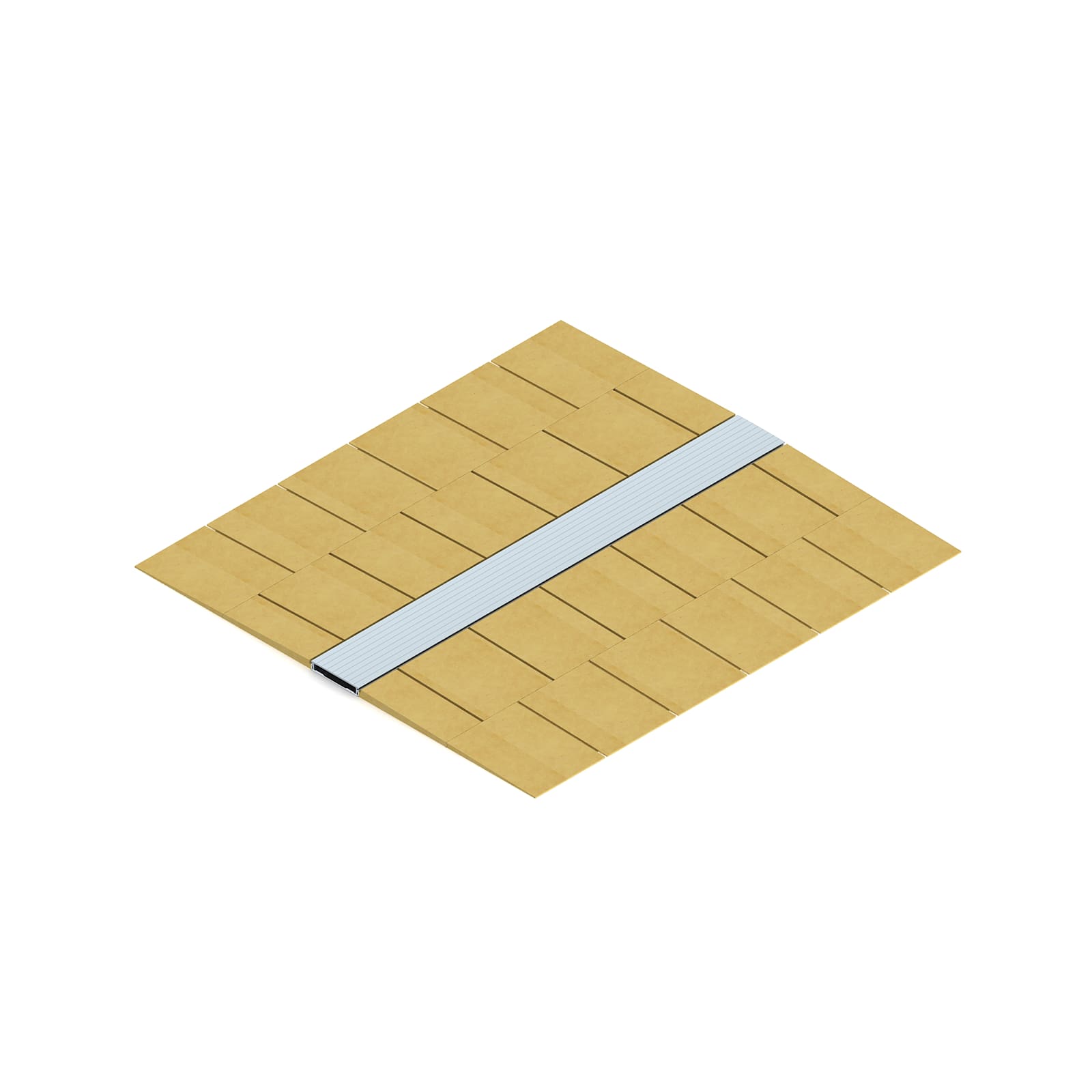

It is compatible with the 6 FT Express Under Carpet Kit (XPU6K), the Express Under Carpet 90 Degree Corner Kit (XPU90), and various extenders like the 3FT Express Under Carpet Extender Kit (XPU3E).
