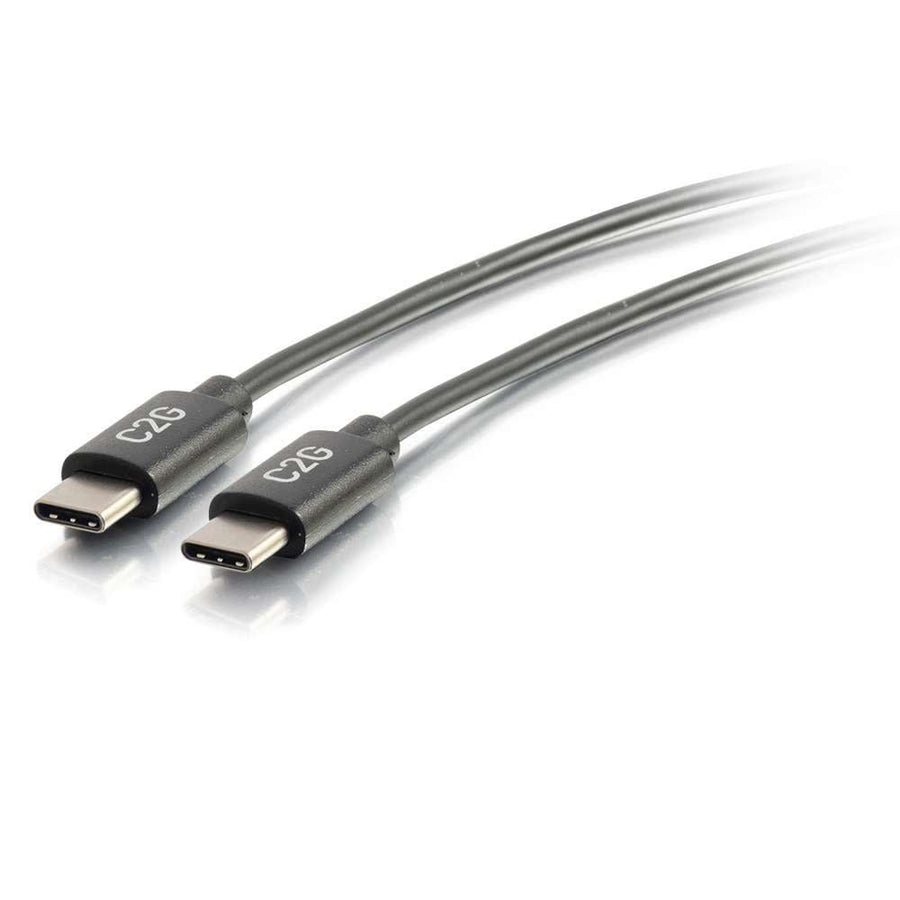

3ft (0.9m) USB-C 2.0 Male to Male Cable (3A)
3ft USB-C 2.0 Male to Male cable with 3A charging support and 480 Mbps data transfer speeds
The C2G CG28825 is a 3ft (0.9m) USB-C 2.0 Male to Male cable designed for connecting USB-C enabled devices, such as laptops, smartphones, and tablets. This cable supports bidirectional signal transmission, allowing for simultaneous charging and data transfer. It provides a 3A charging output and supports data transfer rates up to 480 MBPS. The symmetrical, reversible USB-C connector design ensures a consistent fit regardless of orientation, protecting the device's ports from damage caused by improper insertion. Built with a 32AWG wire gauge and a 0.12 in (3 mm) PVC jacket, this cable maintains a bend radius of 1.18 in (30 mm). The cable is rated for a voltage of 30 V and an operating temperature range of 32° to 122°F (0° to 50°C). For longer runs, the CG28826 is available in a 6ft (1.8m) version.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 3 Amp |
| Bend Radius | 1.18 in (30 mm) |
| Cable Diameter | 0.12 in (3 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Humidity Max | 85% RH (Non-Condensing) |
| Operating Humidity Min | 15% RH (Non-Condensing) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.06 lbs (0 kg) |
All other specifications 21
| Signal Transmission | Bidirectional |
| Storage Humidity Max | 85% RH (Non-Condensing) |
| Storage Humidity Min | 15% RH (Non-Condensing) |
| Storage Temperature | -13° to 158°F (-25°C to 70°C) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Wire Gauge | 32 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) USB-C Male(1) USB-C Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120288251 |
| Video Input Support | USB-C |
| Video Output Support | USB-C |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
0.5ft (0.15m) USB-C® Female to USB-A Male SuperSpeed USB 5Gbps Adapter Converter
CG54428$22.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
C2G54488$189.99
USB-C® Male to USB-A Female Adapter Converter - USB 3.2 Gen 1 (5Gbps)
C2G29515$17.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
6ft (1.8m) USB-C 2.0 Male to Male Cable (3A)
CG28826$19.99
USB-C® 12-in-1 Triple Display Docking Station with HDMI®, DisplayPort™, Ethernet, USB (TAA Compliant)
C2G54535Discontinued
Questions about this part
What is the data transfer speed of the C2G CG28825?
This USB 2.0 cable supports data transfer rates up to 480 MBPS.
Can I use this cable for charging and data at the same time?
Yes, the cable supports bidirectional signal transmission and a 3A charging output.
Is there a longer version of this USB-C cable available?
Yes, the CG28826 is a 6ft (1.8m) version of this USB-C 2.0 Male to Male cable.
What is the bend radius for this cable?
The CG28825 has a minimum bend radius of 1.18 in (30 mm).
Which certifications does this cable hold?
The CG28825 is compliant with RoHS, REACH, TAA-exempt (not TAA compliant), NDAA 889, TSCA, and Prop 65.
