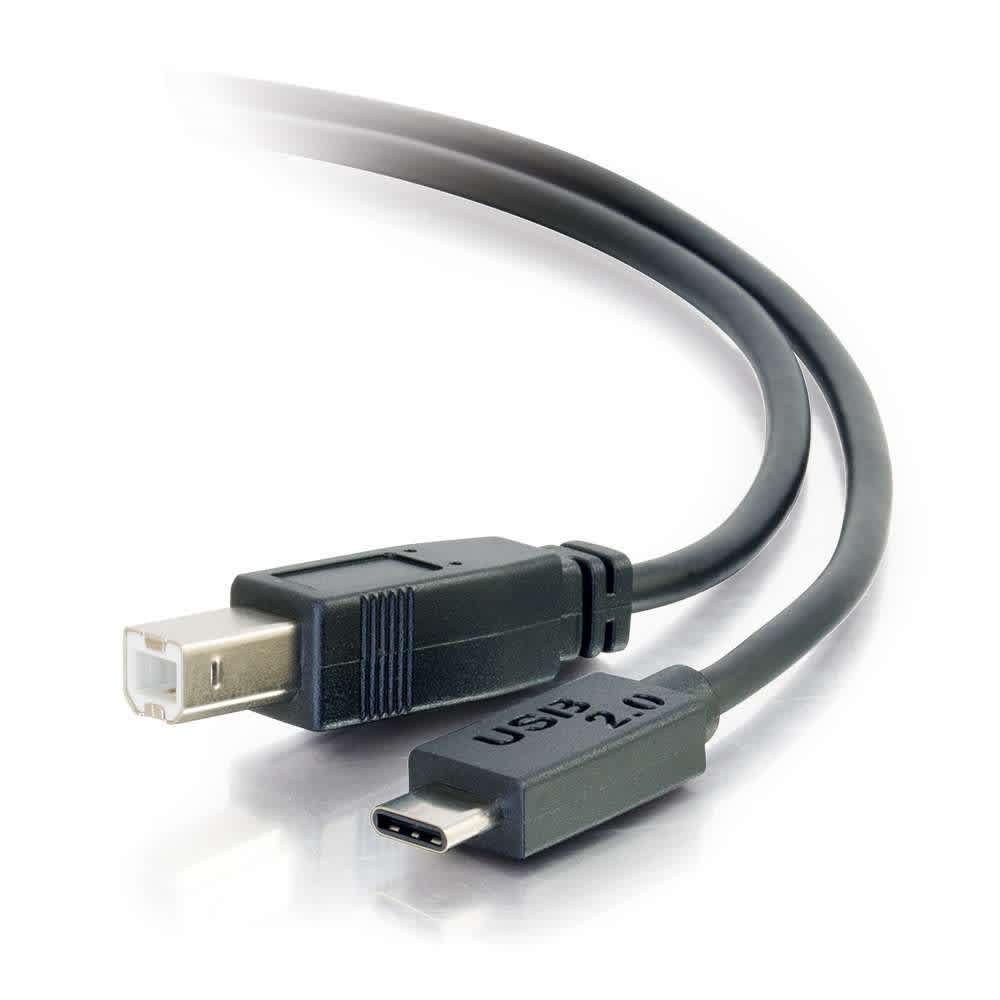

3ft (0.9m) USB 2.0 USB-C to USB-B Cable M/M - Black
3ft USB 2.0 cable connecting USB-C ports to USB-B peripherals like printers or hubs
The C2G CG28858 is a 3ft (0.9m) USB 2.0 cable designed to facilitate communication between devices with a USB Type-C port and those requiring a USB-B connection. This cable is intended for connecting computers, tablets, or other host devices to peripherals such as printers or USB hubs. It supports bidirectional signal transmission with data transfer rates up to 480 Mbps. The USB-C connector features a symmetrical design for easier insertion and is rated for up to 10,000 connection cycles. While this cable supports USB 2.0 and is backwards compatible with USB 1.1, it is not designed for USB 3.1 Gen 2 communication. The cable features a 30 AWG wire gauge and a PVC jacket, with a cable diameter of 0.15 in (3.8 mm). It operates within a temperature range of 32° to 122°F (0° to 50°C) and is rated for 1 Amp at 5 volts of power delivery.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 1 Amp |
| Bend Radius | 1.5 in (38 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Humidity Max | 85% RH |
| Operating Humidity Min | 20% RH |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.86 lbs (0.4 kg) |
All other specifications 19
| Signal Transmission | Bidirectional |
| Storage Humidity Max | 90% RH |
| Storage Humidity Min | 0% RH |
| Storage Temperature | -13° to 158°F (-25°C to 70°C) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Wire Gauge | 30 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) USB-B Male(1) USB-B Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120288589 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
0.5ft (0.15m) USB-C® Female to USB-A Male SuperSpeed USB 5Gbps Adapter Converter
CG54428$22.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
C2G54488$189.99
USB-C® Male to USB-A Female Adapter Converter - USB 3.2 Gen 1 (5Gbps)
C2G29515$17.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
6ft (1.8m) USB 2.0 USB-C to USB-B Cable M/M - Black
CG28859$20.99
USB-C® 12-in-1 Triple Display Docking Station with HDMI®, DisplayPort™, Ethernet, USB (TAA Compliant)
C2G54535Discontinued
Questions about this part
What is the maximum data transfer speed for the CG28858?
This cable supports USB 2.0 technology with data transfer rates up to 480 MBPS.
Will this cable work with my USB 1.1 printer?
Yes, this cable is backwards compatible with both USB 2.0 and USB 1.1 devices.
Is this cable suitable for USB 3.1 Gen 2 applications?
No, this cable is specifically designed to support USB 2.0 communication and is not able to support USB 3.1 Gen 2 features.
What is the length of this USB-C to USB-B cable?
The CG28858 has a cable length of 3 ft (0.9 m).
Does this cable support power for my device?
The cable provides sync and power for device operation at 5 volts and 1 Amp.
