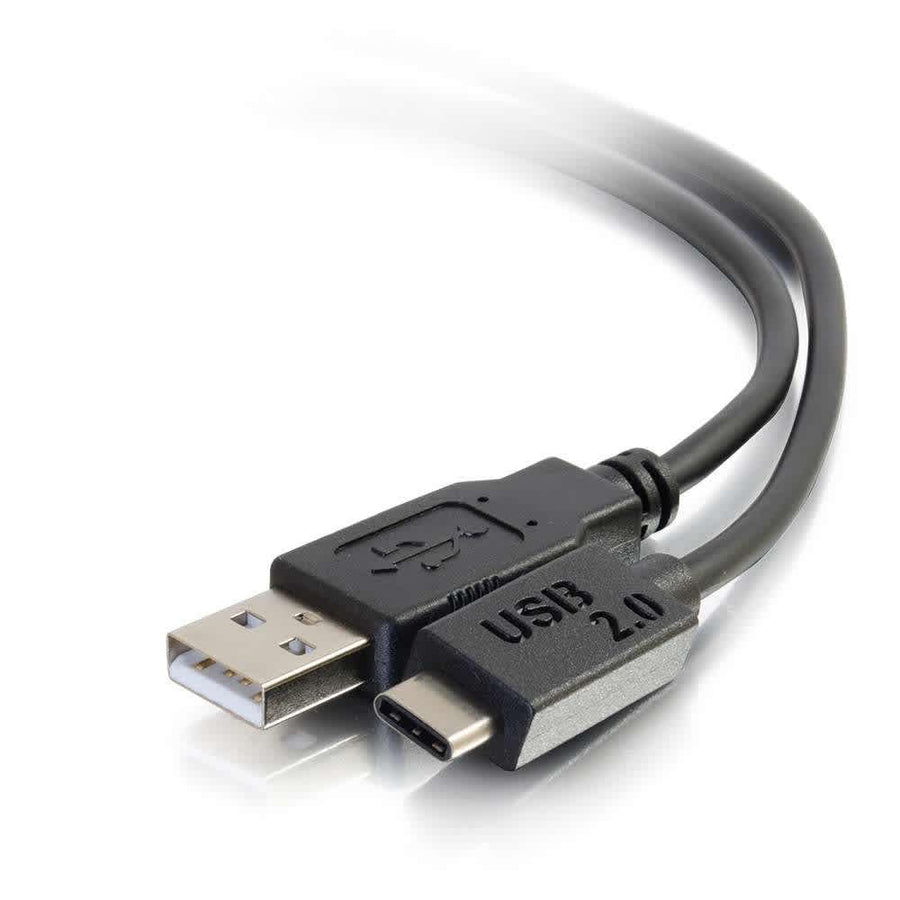

3ft (0.9m) USB 2.0 USB-C to USB-A Cable M/M - Black
USB 2.0 USB-C to USB-A Male to Male cable, 3ft (0.9m) length, 480 Mbps data transfer rate, black PVC jacket
The C2G CG28870 is a 3ft (0.9m) USB 2.0 USB-C to USB-A Male to Male cable designed to bridge the connection between mobile devices and standard computing hardware. This cable facilitates communication between a computer featuring a standard USB Type-A port and peripherals such as smartphones, tablets, or external hard drives equipped with a USB-C port. It supports bidirectional signal transmission and maintains data transfer rates of up to 480 MBPS. Designed for durability, the USB-C connector is built to withstand up to 10,000 insertion/extraction cycles and features a symmetrical, reversible design that ensures a successful connection on the first attempt without the risk of port damage. This cable is constructed with a 30 AWG wire gauge and a black PVC jacket. It is compatible with USB 1.1 devices and is capable of delivering up to 5 volts and 1 amp from a computer to a connected device. This specific model is intended for USB 2.0 communication and is not designed for USB 3.1 Gen 2 features.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.5 in (38 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.08 lbs (0 kg) |
| Signal Transmission | Bidirectional |
All other specifications 18
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature | Negative 4 to 176 F |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 30 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) USB-A Male(1) USB-A Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120288701 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
0.5ft (0.15m) USB-C® Female to USB-A Male SuperSpeed USB 5Gbps Adapter Converter
CG54428$22.99
6ft (1.8m) USB 2.0 USB-C to USB-A Cable M/M - Black
CG28871$15.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
C2G54488$189.99
USB-C® Male to USB-A Female Adapter Converter - USB 3.2 Gen 1 (5Gbps)
C2G29515$17.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
USB-C® 12-in-1 Triple Display Docking Station with HDMI®, DisplayPort™, Ethernet, USB (TAA Compliant)
C2G54535Discontinued
Questions about this part
Will this CG28870 cable work with my USB-C smartphone and USB-A laptop?
Yes, this cable provides connectivity between a USB-A laptop, tablet, or desktop and a USB-C cellphone, tablet, or external hard drive.
Is this C2G cable compatible with USB 3.0 or higher speeds?
This cable is designed specifically for USB 2.0 communication and 480 Mbps transfer rates; it cannot support USB 3.1 Gen 2 communication features.
Does this cable support charging for mobile devices?
This cable can deliver up to 5 volts and 1 amp from a computer to any connected device via the USB-C connector.
What is the difference between the CG28870 and the CG28871?
The CG28870 is the 3ft (0.9m) version of this USB 2.0 USB-C to USB-A M/M cable, while the CG28871 is the 6ft (1.8m) variant.
What tools are needed for the installation of this USB cable?
No special tools are required for the installation of this plug-and-play USB 2.0 cable.
