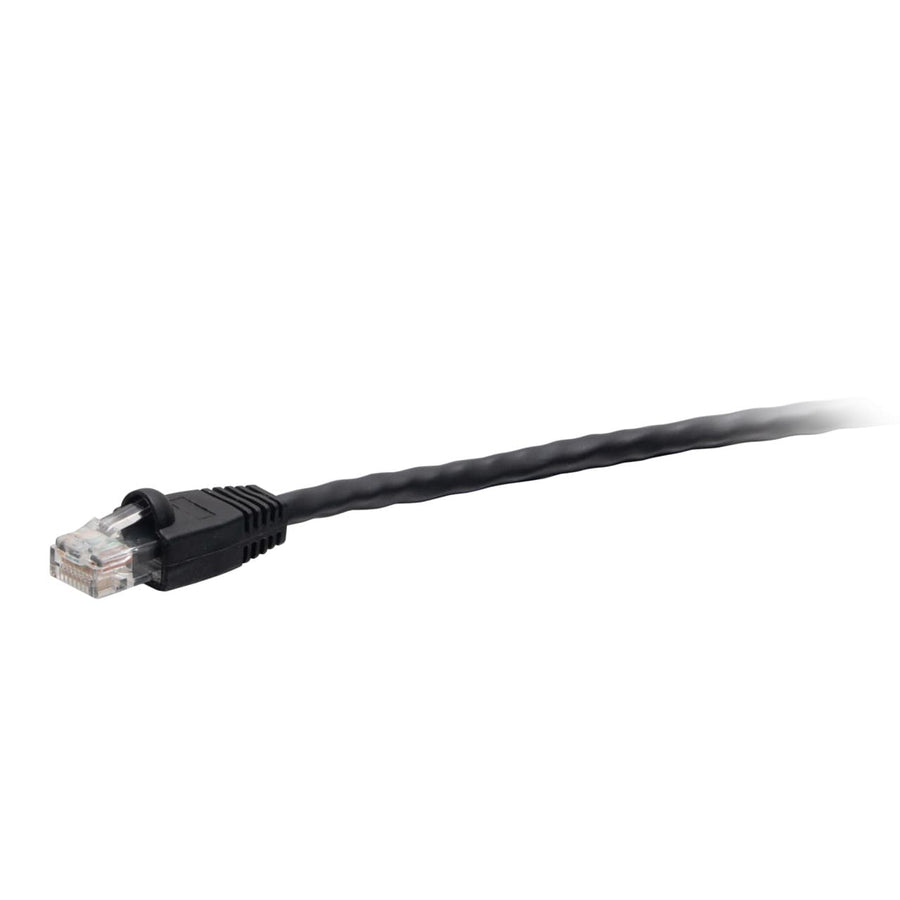

3ft (0.9m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Black
3ft TAA-compliant Cat6 UTP network cable, snagless design, black finish
The C2G C2G43467 is a 3 ft (0.9 m) TAA-compliant Cat6 Unshielded (UTP) network cable designed for mission-critical connectivity in United States government projects and facilities. This passive network cable is built with high-quality, made in the USA copper cabling that provides an enhanced 600 MHz maximum frequency, ensuring consistent and reliable performance for 1000BASE-T (1 Gigabit Ethernet) applications. The cable features a snagless RJ45 connector design with a molded boot to protect the clips from being snapped off during high-frequency insertion cycles and to provide extra strain relief. Each connector utilizes 50-micron gold-plated contacts to maintain signal integrity. This CMR-rated riser cable is constructed with a PVC jacket and stranded copper conductors in a T568B wiring scheme. It is engineered to support network adapters, hubs, switches, routers, and servers, meeting or exceeding ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.86 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434672 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Surface Mount Box
WP3506WH$6.99
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
16-Port Blank Keystone/Multimedia Patch Panel
CG03858$29.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
32-Port Blank Keystone/Multimedia Patch Panel
CG03860$42.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
Questions about this part
Is the C2G C2G43467 TAA compliant?
Yes, this F-Series Cat6 cable is TAA-compliant and approved for use in United States government projects and facilities.
What is the maximum frequency of this Cat6 cable?
The cable is engineered with an enhanced 600 MHz maximum frequency for increased performance over standard Cat6 cables.
What is the jacket rating for the C2G C2G43467?
This cable is CMR rated for riser applications and features a PVC jacket material.
What kind of connectors does this network cable use?
The cable is equipped with one RJ-45 Male connector on each end, featuring a snagless design to protect the clips.
What is the wiring scheme for this C2G cable?
This cable follows the T568B wiring scheme and is an unshielded twisted pair (UTP) construction.
