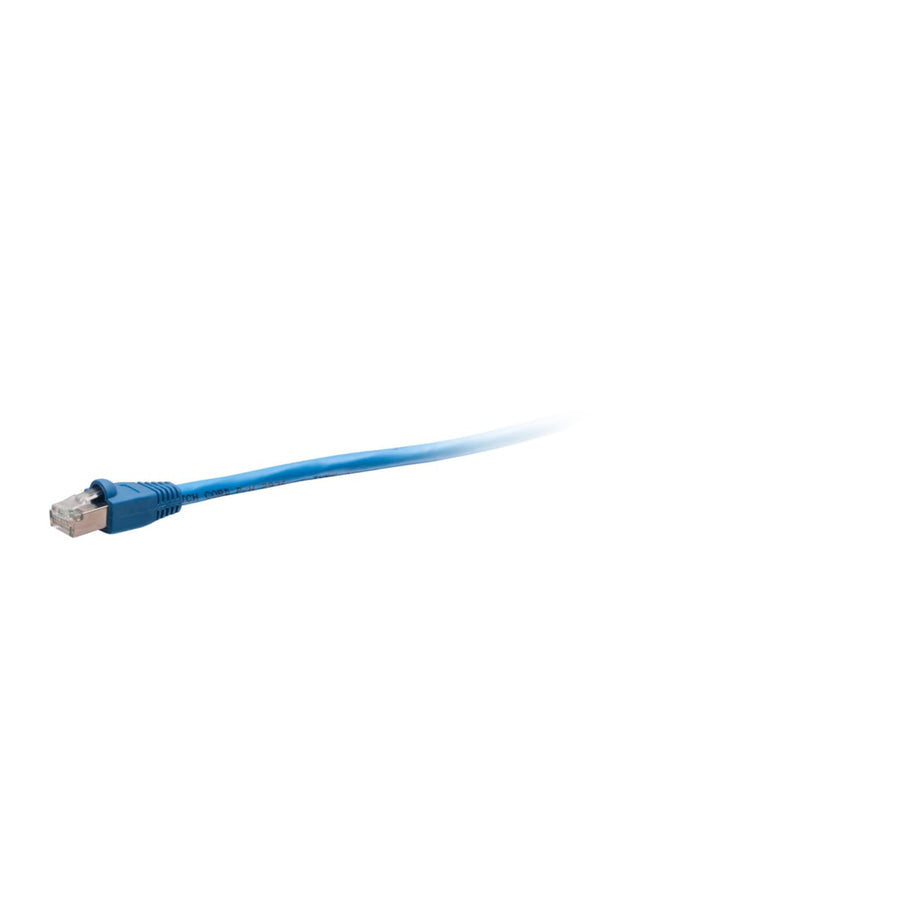

3ft (0.9m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Blue
3ft shielded Cat6 STP patch cable, blue, TAA-compliant with snagless RJ45 connectors and 50-micron gold-plated contacts
The C2G43724 is a 3ft (0.9m) TAA-compliant F-Series Cat6 snagless shielded (STP) network cable in blue. Designed to meet the stringent requirements of United States government projects and facilities, this cable is ideal for high-security or high-interference environments. It utilizes an aluminum foil shield to counter EMI, RFI, and alien crosstalk, protecting high-speed networks when connecting hubs, switches, routers, servers, or network adapters. The cable features a snagless RJ45 connector design, which protects the clips from being snapped off during high-frequency insertion cycles. Construction includes made in the USA copper cabling with a 26 AWG stranded conductor and 50-micron gold-plated contacts to improve signal integrity. This CMR-rated, riser-rated cable supports 1000BASE-T (1 Gigabit Ethernet) applications and complies with ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. It is rated for operation in temperatures ranging from -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.86 lbs (0.4 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437246 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43724 TAA compliant?
Yes, this is a TAA-compliant F-Series cable, making it approved for use in United States government projects and facilities.
What is the maximum operating temperature for this Cat6 cable?
The operating temperature range for this blue Cat6 cable is -4° to 167°F (-20° to 75°C).
How does the snagless design benefit installers?
The snagless RJ45 connector design protects the clips from being easily snapped off, which is particularly useful in applications requiring high insertion cycles.
What shielding is used to prevent interference?
This cable uses Shielded STP (Screened Twisted Pair) construction with an aluminum foil shield to counter EMI, RFI, and alien crosstalk.
Does this cable support Gigabit Ethernet?
Yes, this Cat6 cable is designed to support 1000BASE-T (1 Gigabit Ethernet) applications.
