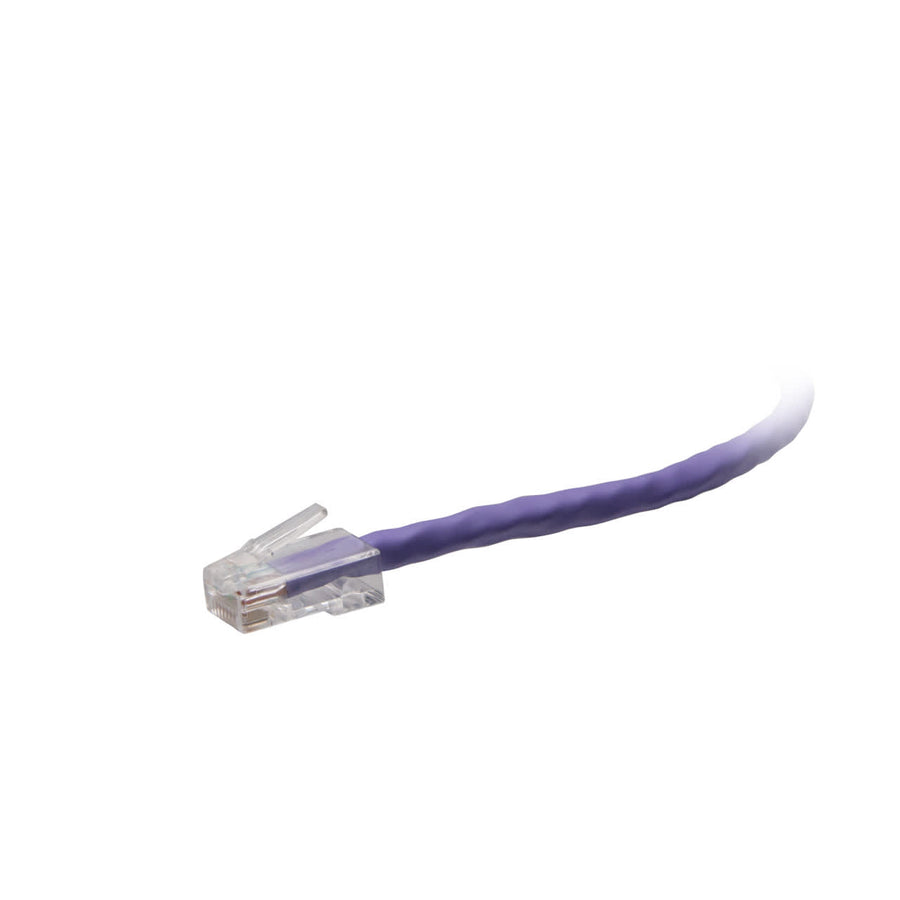

3ft (0.9m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Purple
Purple 3ft (0.9m) Cat6 UTP network cable, TAA-compliant with 50-micron gold-plated contacts and CMR rating
The C2G43674 is a 3 ft (0.9 m) TAA-compliant F-Series Cat6 network cable designed for high-reliability connectivity in professional environments. This non-booted, unshielded twisted pair (UTP) cable is manufactured with high-quality, made in the USA copper cabling, ensuring consistent performance for 1000BASE-T (1 Gigabit Ethernet) applications. It features stranded copper conductors and a PVC jacket with a CMR riser rating, making it suitable for various installation scenarios. Each RJ-45 male connector is equipped with 50-micron gold-plated contacts to maintain signal integrity. This cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. Its purple color allows for easy color-coding within complex network infrastructures, connecting devices like switches, routers, servers, and hubs. This passive cable is TAA-compliant and suitable for United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.86 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436744 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
6-Port Surface Mount Box
WP3506WH$6.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
Cable Management Strap - 12 Piece
TW12$25.20
Surface Mount Box 1-Port in White
WP3501WH$1.99
16-Port Blank Keystone/Multimedia Patch Panel
CG03858$29.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
32-Port Blank Keystone/Multimedia Patch Panel
CG03860$42.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
Questions about this part
Is this cable TAA compliant?
Yes, the C2G43674 is TAA-compliant and approved for use in United States government projects and facilities.
What is the maximum data rate for this Cat6 cable?
This Cat6 cable is designed to support 1000BASE-T (1 Gigabit Ethernet) applications and meets ANSI/TIA-568.2-D standards.
What type of jacket rating does this cable have?
This cable features a PVC jacket with a CMR (Riser) rating and a 0.22 in (5.6 mm) diameter.
Does this cable feature gold-plated contacts?
Yes, the RJ-45 male connectors include 50-micron gold-plated contacts to improve signal integrity.
Can I use this for color-coding my network?
Yes, the C2G43674 is purple, making it useful for color-coding network installations.
