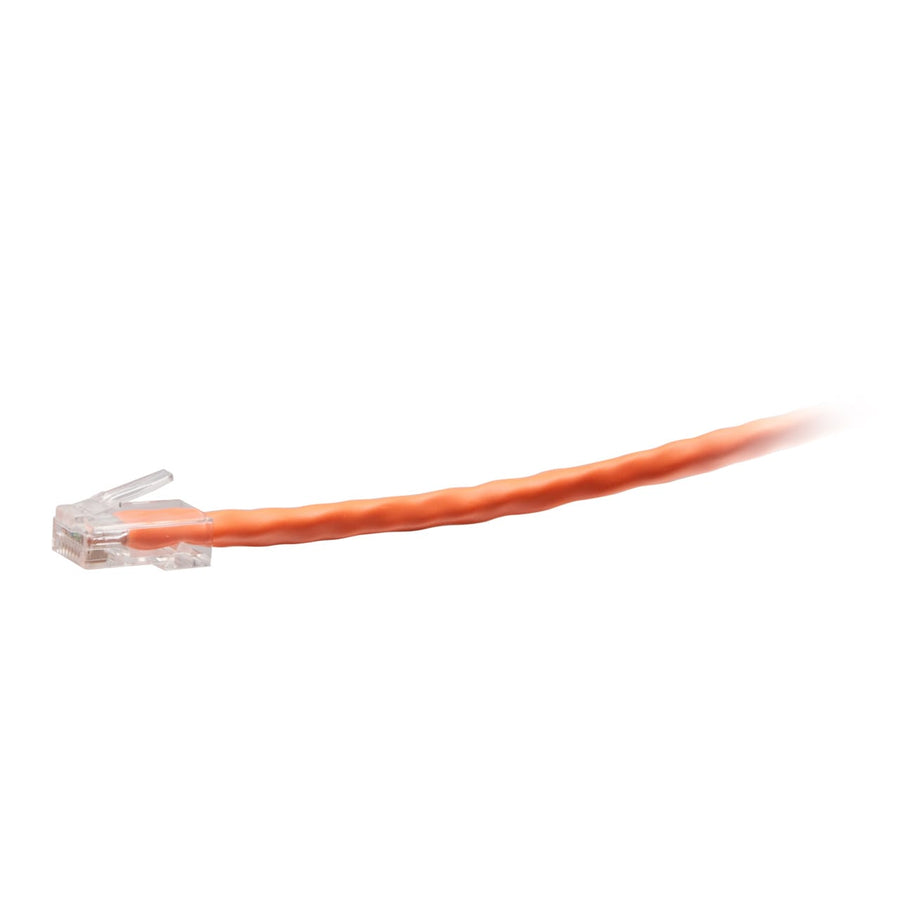

3ft (0.9m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Orange
3ft TAA-compliant Cat6 UTP network cable in orange, featuring CMR-rated riser jacket and 50-micron gold-plated contacts
The C2G43662 is a 3ft (0.9m) TAA-compliant Cat6 network cable designed for use in United States government projects and facilities. This unshielded (UTP) non-booted cable is constructed with high-quality, made in the USA copper cabling that features a stranded conductor and a 24 AWG wire gauge. It is engineered to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting high-performance applications including 1000BASE-T (1 Gigabit Ethernet) with an enhanced 600 MHz maximum frequency. The orange PVC jacket is CMR rated for riser applications and operates within a temperature range of -4°F to 167°F (-20°C to 75°C). Each RJ-45 male connector is equipped with 50-micron gold-plated contacts to improve signal integrity. This passive cable is built with a T568B wiring scheme and a cable diameter of 0.22 in (5.6 mm). The F-Series provides a reliable connection for network adapters, hubs, switches, routers, and servers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.86 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436621 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Trio Combo Module with Cat6 Data
CO1166$119.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
12-Port Blank Keystone/Multimedia Patch Panel
CG03857$25.99
Surface Mount Box 2-Port in White
WP3502WH$2.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
Questions about this part
Is the C2G43662 TAA compliant?
Yes, this F-Series Cat6 cable is TAA compliant, making it approved for use in United States government projects and facilities.
What is the maximum frequency and speed for this Cat6 cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) and features an enhanced 600 MHz maximum frequency.
What kind of jacket rating does this cable have?
The orange PVC jacket is CMR rated for riser applications and is suitable for use in the operating temperature range of -4°F to 167°F (-20°C to 75°C).
What is the difference between this and the F-Series cables in other colors?
This specific SKU (C2G43662) is the orange color variant; the F-Series is also available in several other colors to assist with network color-coding.
What tools are required for installation?
As this is a non-booted, non-terminated patch cable with standard RJ-45 male connectors, no additional installation tools are required for basic connection.
