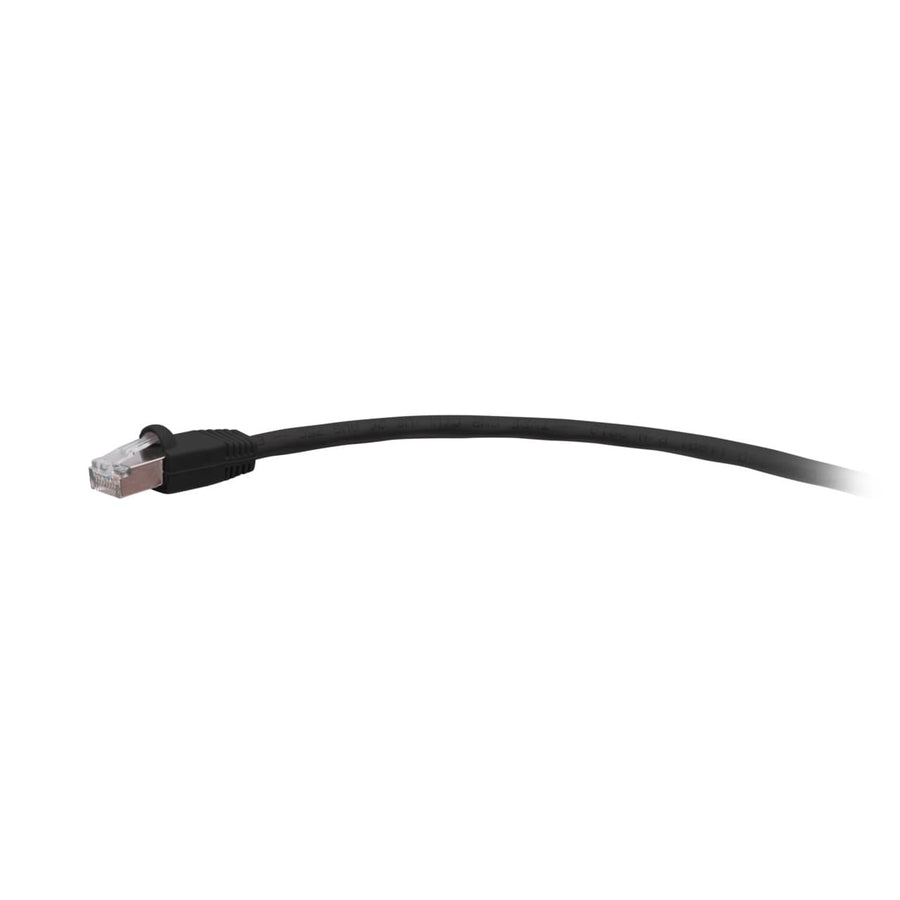

3ft (0.9m) TAA-Compliant F-Series Cat5e Snagless Shielded (STP) Network Cable - Black
3ft shielded Cat5e snagless patch cable, TAA-compliant, featuring 100% Al foil shielding for noisy environments
The C2G43437 is a 3ft (0.9 m) TAA-compliant Cat5e shielded (STP) network patch cable designed for use in environments where electromagnetic interference (EMI) or radio frequency interference (RFI) is a concern. This passive cable features 100% aluminum foil shielding to protect data transmission in noisy technical settings. It utilizes stranded copper conductors and 24 AWG wire to support 1000BASE-T (1 Gigabit Ethernet) applications. The construction includes 50-micron gold-plated contacts to maintain signal integrity and a molded snagless boot to prevent clip breakage during high-frequency insertion cycles. This CMR-rated riser cable is manufactured with high-quality, made-in-the-USA raw cable and is built to meet ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. The T568B wiring scheme and black PVC jacket make it a reliable choice for connecting network adapters, hubs, switches, and routers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.1 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434375 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43437 TAA compliant?
Yes, this is a TAA-compliant cable specifically designed for use in United States government projects and facilities.
Will this cable work for Gigabit Ethernet?
Yes, this Cat5e cable meets or exceeds ANSI/TIA-568.2-D standards to support 1000BASE-T (1 Gigabit Ethernet) applications.
What is the purpose of the snagless design?
The snagless RJ45 connectors feature a molded boot that protects the clips from being snapped off, making it suitable for high insertion cycle environments.
Can this cable be used in noisy electrical environments?
Yes, the shielded STP design uses an aluminum foil shield to help prevent EMI and RFI from affecting your data transmission.
Is this cable suitable for riser installations?
Yes, this cable features a CMR-rated jacket, making it appropriate for riser applications.
