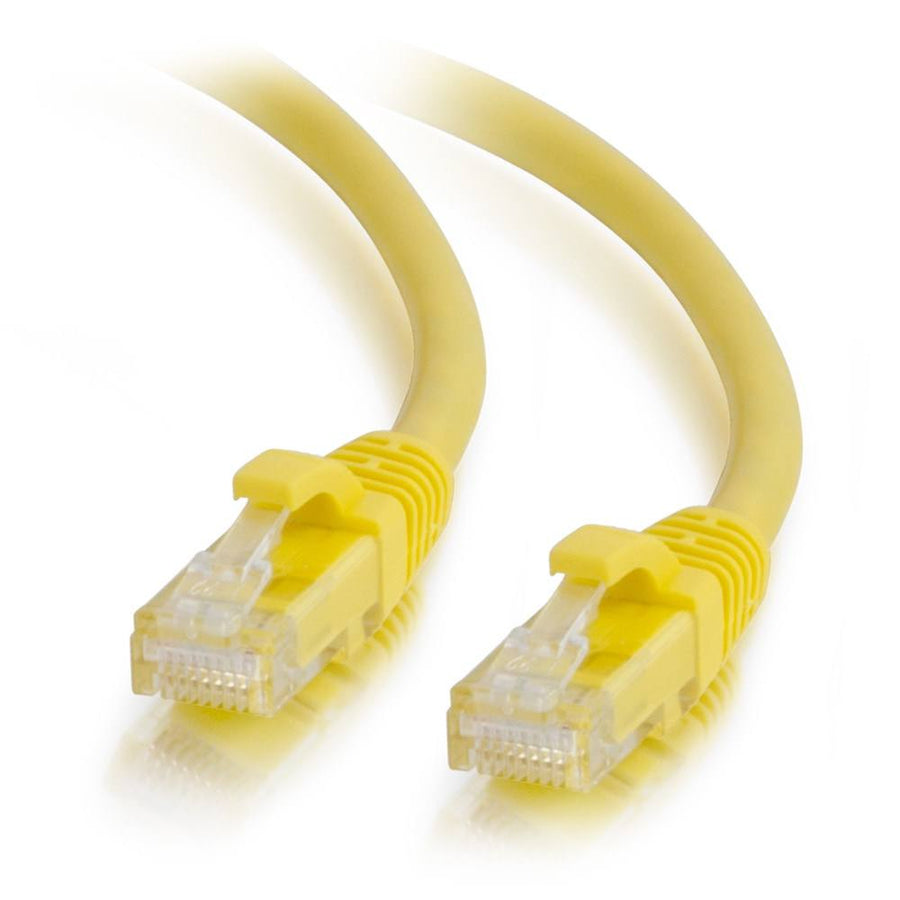

3ft (0.9m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Yellow
3ft (0.9m) Cat6a snagless unshielded UTP Ethernet patch cable in yellow
The C2G CG50743 is a 3ft (0.9m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-performance 10GBase-T applications. This yellow cable supports 10 Gigabit data transmission over a 4-pair copper configuration, facilitating connections for up to 100 meters in structured cabling environments. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring reliable performance for network adapters, hubs, switches, routers, and patch panels. Constructed with 26AWG bare copper stranded conductors and HDPE insulation, this cable features a PVC jacket and PVC connector hoods. The snagless boot design is specifically engineered for high-density switch environments, protecting the RJ-45 connectors from accidental damage during installation or maintenance. This UTP cable uses a 568B wiring scheme and is rated for temperatures up to 75°C. For organizational clarity, each cable features an individual length label.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.1 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507437 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
3ft (0.9m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG00725$11.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Will this Cat6a cable work with my 10Gb switches?
Yes, the CG50743 is designed for 10GBase-T equipment, including switches, routers, and hubs, supporting 10 Gigabit data transmission.
Is this cable suitable for high-density patch panels?
Yes, the snagless connector hood design is specifically intended to prevent damage in high-density switch and patch panel environments.
What is the wiring standard for this patch cable?
This C2G patch cable follows the 568B wiring scheme and uses 26AWG bare copper stranded conductors.
Does this cable support 10Gb Ethernet over long distances?
This Cat6a cable enables 10 Gigabit transmission over a 4-pair copper cable for connections up to 100 meters.
Can I use this to color-code my network racks?
Yes, the yellow jacket allows for easy color-coding within your network installation; other colors are available in the CG50743 series.
