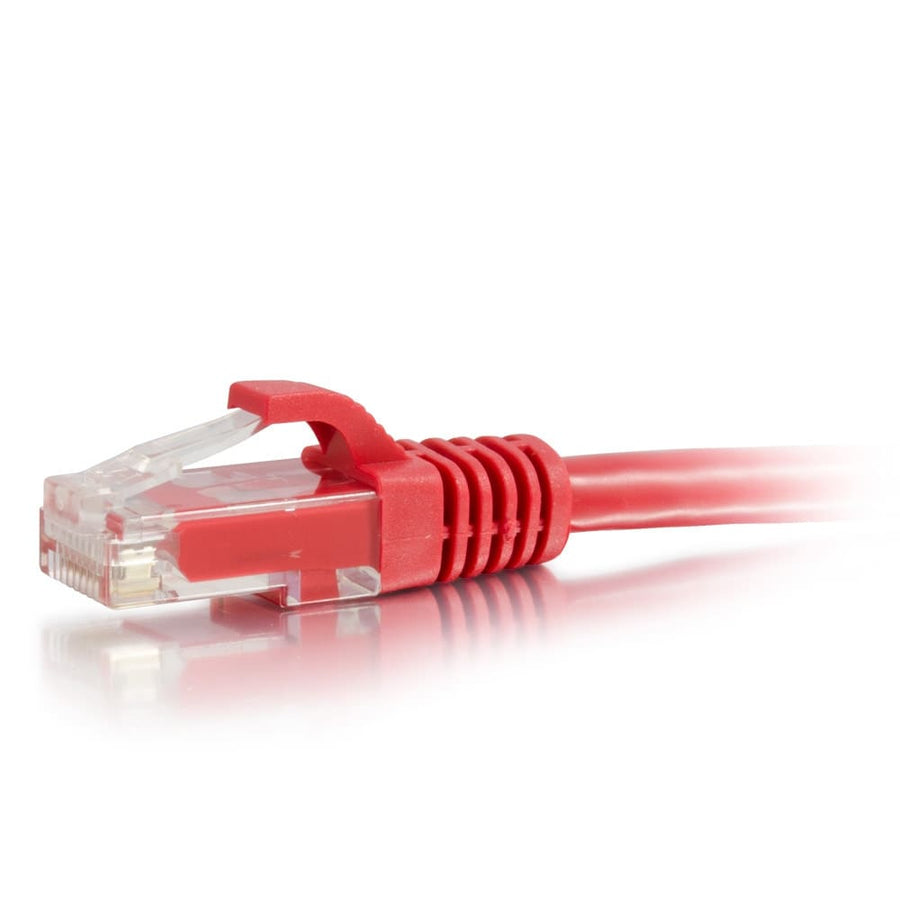

3ft (0.9m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Red
Red 3ft (0.9m) Cat6a Unshielded UTP patch cable with snagless boots for high-density applications
The C2G CG50800 is a 3 ft (0.9 m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable in red, designed for high-density environments. This cable supports 10GBase-T equipment, including network adapters, hubs, switches, routers, and patch panels, enabling 10 Gigabit data transmission over a 4-pair copper cable for connections up to 100 meters. It is constructed with 26AWG bare copper stranded conductors and HDPE insulation, and it is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements. The snagless PVC connector hood protects the latch during installation in tight spaces, making it ideal for high-density switch applications. This red cable features an individual length label on each unit for quick identification during deployment. It is built with a PVC jacket and is rated for temperatures up to 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.1 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508007 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
3ft (0.9m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG00725$11.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Will this Cat6a cable support 10 Gigabit speeds?
Yes, this cable supports 10GBase-T equipment and enables 10 Gigabit data transmission over a 4-pair copper cable.
What is the difference between this and the black version?
The CG50800 is the red version of this cable; the CG00725 is the black SKU in the same series.
Is this cable suitable for high-density patch panels?
Yes, the snagless hood design is specifically intended for use in high-density switch and patch panel applications.
What standards has this patch cable been tested to?
This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
Can I use this with a Cat6a keystone insert?
Yes, it is compatible with several Cat6a products including the WP246A 24-Port Rack Mount Patch Panel and various WP346A Keystone Inserts.
