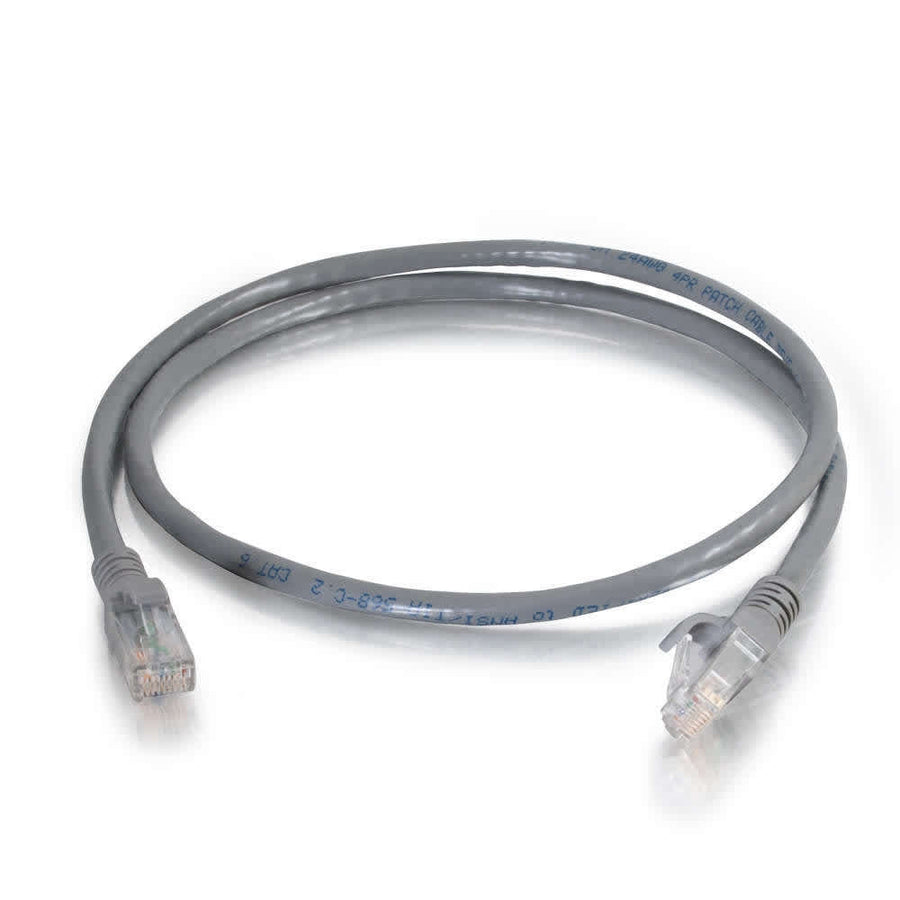

3ft (0.9m) Cat6 Snagless UTP Unshielded Ethernet Network Patch Cable - Gray
Gray Cat6 snagless patch cable, 3 ft (0.9 m) length, featuring stranded copper conductors and TAA compliance
The C2G CG10302 is a 3 ft (0.9 m) Cat6 snagless patch cable designed for high-bandwidth voice, data, and video distribution. This unshielded (UTP) cable utilizes 24 AWG stranded copper conductors and a shortened body plug to minimize Near-End Crosstalk (NEXT) levels. For installations requiring strict procurement standards, this cable is TAA compliant, meeting the requirements for products manufactured in countries on the Trade Agreement Act list. The gray PVC jacket houses two RJ-45 male connectors protected by molded, snag-free boots that provide strain relief and prevent accidental disconnection during installation. This cable follows the T568B wiring scheme and is rated for standard, non-rated applications. It is suitable for use with various networking components, including the 24-Port Cat6 110-Type Patch Panel (CG37199) or a 8-Port Switch (DA8400WH). This product is covered by a lifetime warranty and is compliant with NDAA 889, REACH, RoHS, and TSCA standards.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.1 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Gray |
All other specifications 12
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120103028 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Surface Mount Box
WP3506WH$6.99
Cable Management Strap - 12 Piece
TW12$25.20
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
16-Port Blank Keystone/Multimedia Patch Panel
CG03858$29.99
Questions about this part
Is the C2G CG10302 TAA compliant?
Yes, this cable is TAA compliant, making it suitable for installations that require products manufactured in Trade Agreement Act compliant countries.
What is the wiring scheme for this patch cable?
The CG10302 follows the T568B wiring scheme for all network connections.
Can I use this cable with a patch panel?
Yes, it is compatible with accessories such as the CG37199 24-Port Cat6 110-Type Patch Panel.
Does this cable include shielding?
No, this is an unshielded (UTP) Cat6 cable using 24 AWG stranded copper conductors.
What certifications does this cable hold?
This cable is compliant with NDAA 889, REACH, RoHS, and TSCA standards.
