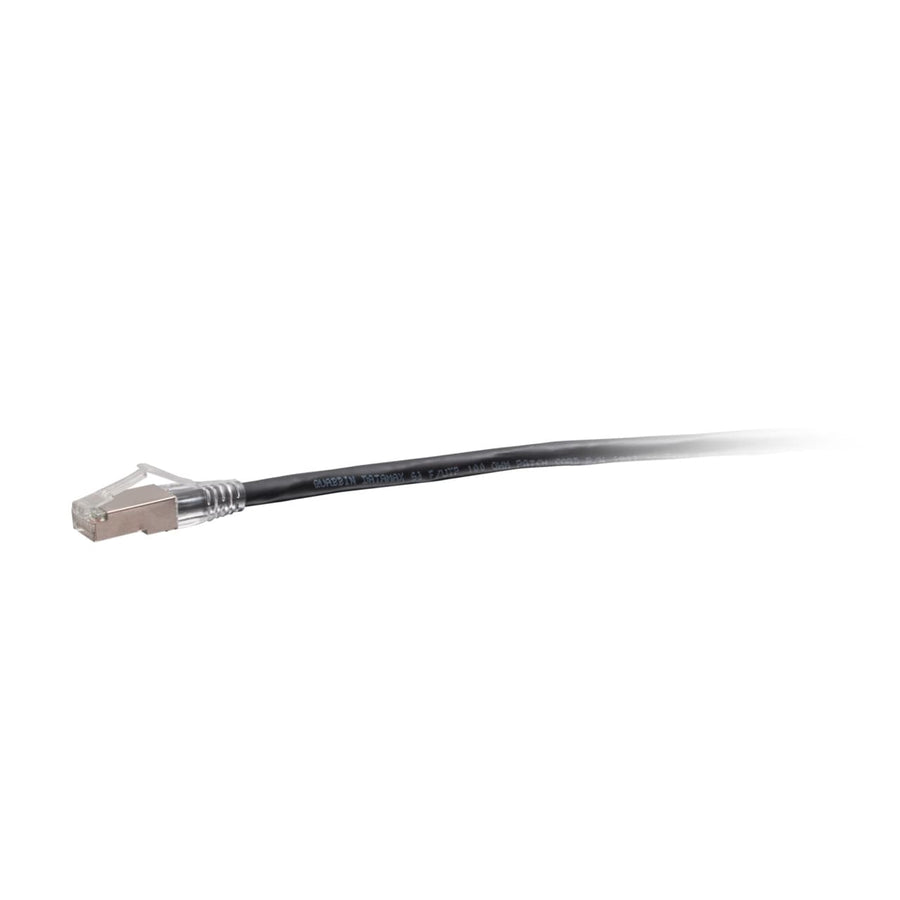

35ft (10.7m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Black
35ft TAA-compliant Cat6a shielded STP network cable with snagless RJ45 connectors and black PVC jacket
The C2G43850 is a 35ft (10.7m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable in Black, engineered to meet the strict requirements of United States government projects and facilities. This passive cable is designed for high-bandwidth 10GBase-T applications, providing a reliable connection for 10 Gigabit Ethernet across network adapters, switches, routers, and patch panels. To protect high-speed data from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk, this cable features a copper stranded conductor protected by an aluminum foil shield. The cable construction includes a PVC jacket with a CMR riser rating and 50-micron gold-plated contacts to maintain signal integrity. Its snagless RJ45 connector design is specifically built to prevent the clips from snapping during high-frequency insertion cycles. Meeting ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, this 26 AWG shielded STP cable ensures consistent performance in demanding voice, data, and video distribution environments. This specific SKU is part of a broader series available in multiple colors and lengths up to 100ft.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 35 ft (10.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.88 lbs (0.4 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438502 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cable Management Strap - 12 Piece
TW12$25.20
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP4250NA$189.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Surface Mount Box
WP3506WH$6.99
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
16-Port Blank Keystone/Multimedia Patch Panel
CG03858$29.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
Questions about this part
Is the C2G43850 TAA compliant?
Yes, this cable is TAA compliant and is approved for use in United States government projects and facilities.
What is the maximum data rate for this Cat6a cable?
This cable is designed to support 10GBASE-T (10 Gigabit Ethernet) applications and high-bandwidth data distribution.
What kind of shielding does this network cable use?
It utilizes a Shielded STP (Shielded Twisted Pair) construction with an aluminum foil shield to protect against EMI and RFI.
Will this cable work for high-density patching?
Yes, the snagless RJ45 design protects the connector clips from breaking, making it suitable for environments with high insertion cycles.
Can I use this cable for vertical runs?
Yes, the cable features a CMR rated jacket, which is suitable for riser applications.
