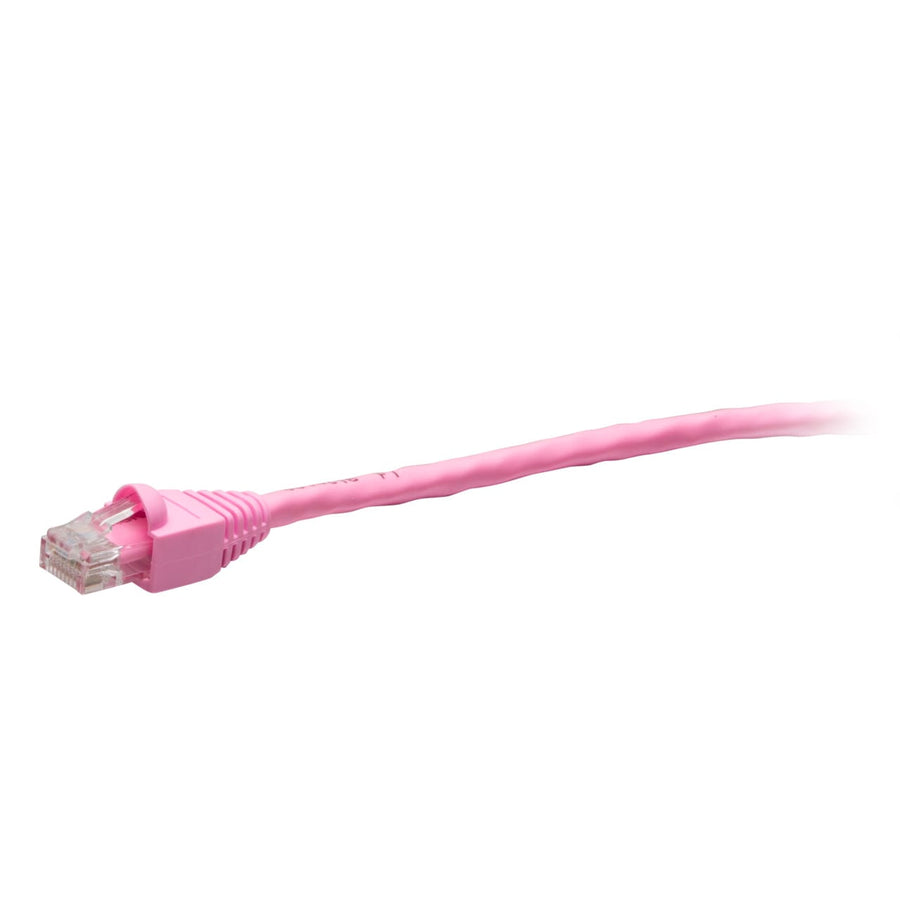

35ft (10.7m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Pink
Pink TAA-Compliant Cat6 snagless UTP network cable, 35 ft (10.7 m) length, 24 AWG stranded copper
The C2G43607 is a 35 ft (10.7 m) TAA-compliant Cat6 snagless unshielded (UTP) network cable finished in pink for easy color-coding. This passive cable is constructed with high-quality, made-in-the-USA copper stranded conductors and features 50-micron gold-plated contacts to maintain signal integrity. The snagless RJ45 connector design includes a molded boot that protects the clips from accidental breakage during high-frequency insertion cycles and provides essential strain relief. This CMR-rated riser cable is designed for use in network adapters, hubs, switches, routers, and servers, meeting ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards for 1000BASE-T Gigabit Ethernet applications. It operates within a temperature range of -4° to 167°F (-20° to 75°C) and is TAA compliant, making it suitable for United States government projects and facilities requiring specific procurement compliance. The 0.22 in (5.5 mm) diameter cable uses a T568B wiring scheme to ensure reliable performance in professional data environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.5 mm) |
| Cable Length | 35 ft (10.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.79 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436072 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Trio Combo Module with Cat6 Data
CO1166$119.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
12-Port Blank Keystone/Multimedia Patch Panel
CG03857$25.99
Surface Mount Box 2-Port in White
WP3502WH$2.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
Questions about this part
Is the C2G43607 suitable for government contracts?
Yes, this cable is TAA compliant and meets requirements for United States government projects and facilities.
What is the maximum performance rating for this Cat6 cable?
The C2G43607 meets ANSI/TIA-568.2-D standards and supports 1000BASE-T 1 Gigabit Ethernet applications.
Will the connector clips break during frequent moves?
The snagless RJ45 design includes a molded boot to protect the clips from snapping, which is useful for applications with high insertion cycles.
