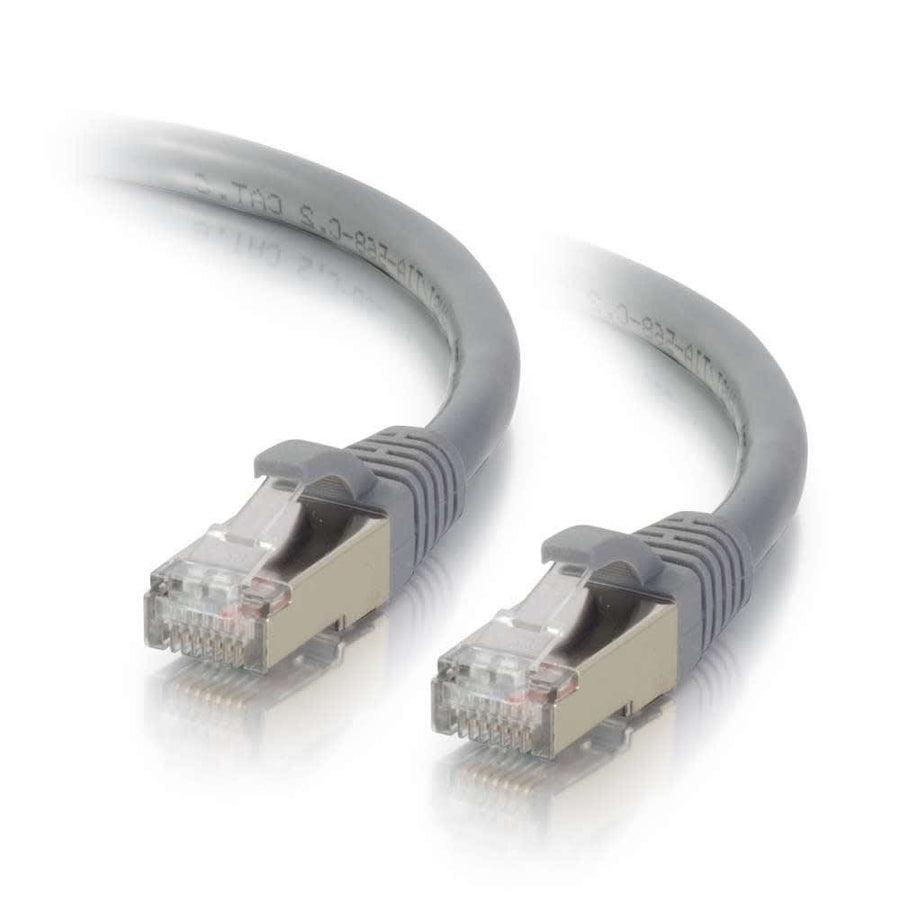

35ft (10.7m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Gray
35ft (10.7m) Cat6a shielded STP patch cable with snagless boots, gray PVC jacket, and 26AWG stranded copper conductors
The C2G CG00654 is a 35 ft (10.7 m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable designed to support high-speed 10GBase-T equipment. This gray cable is ideal for connecting network adapters, hubs, switches, routers, DSL/cable modems, and patch panels in environments prone to electromagnetic interference. Utilizing a shielded STP construction, it provides protection for 10 Gigabit network connections against external noise. The cable features 26AWG stranded bare copper conductors and is insulated with FMPE (Foam Polyethylene) to maintain signal integrity. Each individual pair is bonded together to preserve twist-spacing through the termination point, which helps minimize Near-End Crosstalk (NEXT) levels and reduces impedance and structural return loss (SRL). This patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements and is built with PVC jacket material and PVC connector hoods. For ease of deployment, each cable includes an individual length label and uses a snagless, booted connector design to protect the RJ-45 male terminations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 35 ft (10.7 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 1.03 lbs (0.5 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006541 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
4-Port Surface Mount Box
WP3504WH$4.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANsmart TDR Cable Tester
CG39002$786.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What is the maximum bandwidth capability of the CG00654?
This Cat6a cable is designed for 10GBase-T applications, supporting high-bandwidth requirements for 10 Gigabit network connections.
What are the electrical and physical construction details of this cable?
The CG00654 features 26AWG stranded copper conductors with FMPE insulation and a PVC jacket, supporting a bend radius of 1.95 in (49.6 mm).
Is this cable suitable for environments with high electrical noise?
Yes, the shielded STP construction is specifically designed to protect high-speed connections from noise and electromagnetic interference.
Will this cable work with my existing network hardware?
It is compatible with standard RJ-45 hardware including switches, routers, hubs, and patch panels, as well as 10GBase-T network adapters.
Does this cable meet industry standards for installation?
Yes, each cable is fully tested to meet the ANSI/TIA 568 C.2 Cat6a component requirements.
