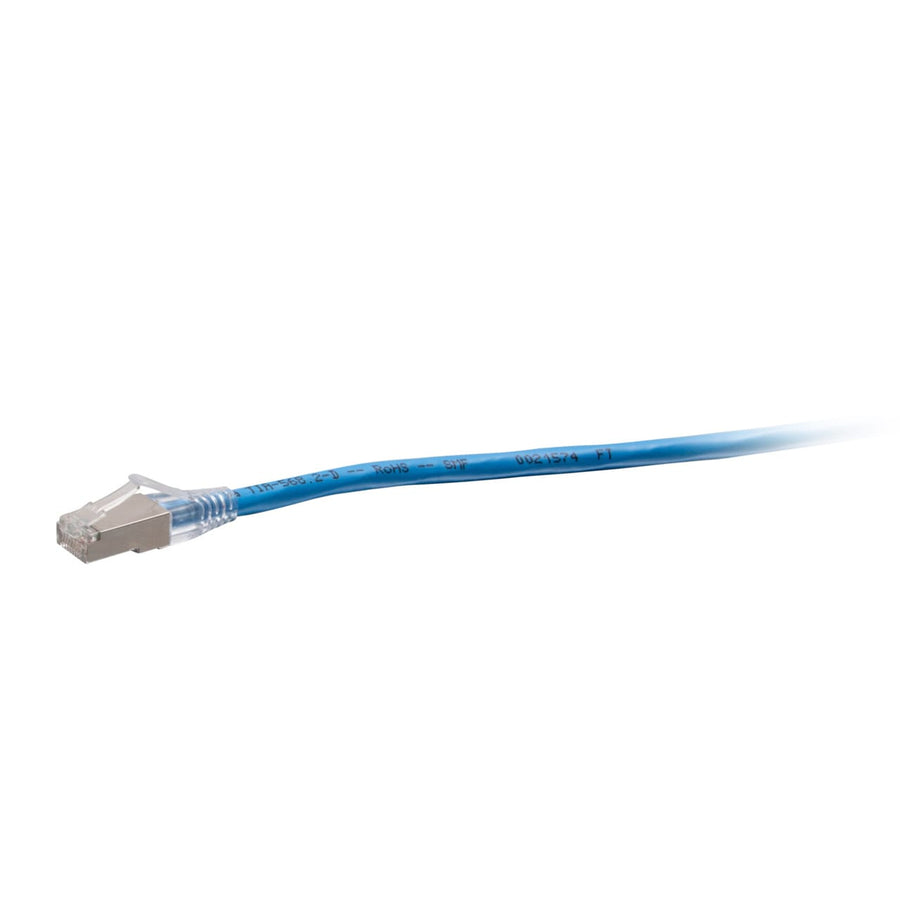

30ft (9.1m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Blue
30ft (9.1m) TAA-Compliant Cat6a Snagless Shielded (STP) Blue Network Cable for 10GBase-T connectivity
The C2G43828 is a 30 ft (9.1 m) TAA-Compliant Cat6a Snagless Shielded (STP) Network Cable in blue, designed for high-speed 10GBase-T environments. This passive cable features stranded copper conductors and 50-micron gold-plated contacts to ensure signal integrity for bandwidth-intensive video, voice, and data applications. Engineered to reduce impedance and structural return loss (SRL), this STP cable utilizes an aluminum foil shield to protect against EMI, RFI, and alien crosstalk. The snagless RJ-45 male connectors protect the clips from damage during high-frequency insertion cycles, making it suitable for switches, routers, and patch panels. This CMR rated riser cable is constructed with a PVC jacket and is approved for use in United States government projects and facilities due to its TAA compliance. The 26 AWG stranded construction provides a flexible 0.24 in (6 mm) diameter cable that meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards for reliable performance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 30 ft (9.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.68 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438281 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43828 TAA compliant for government use?
Yes, this cable is TAA-compliant, making it suitable for use in United States government projects and facilities.
Will this Cat6a cable support 10 Gigabit Ethernet?
Yes, this is a Category 6A cable designed to support 10GBase-T (10 Gigabit Ethernet) and bandwidth-intensive applications.
What shielding type does the C2G43828 use to prevent interference?
The C2G43828 uses Shielded STP (Shielded Twisted Pair) construction with an aluminum foil shield to counter EMI, RFI, and alien crosstalk.
What is the installation rating for this blue patch cable?
This cable features a CMR (Riser) jacket rating, suitable for vertical pathways in plenum-free environments.
Which documents are available for submittals for the C2G43828?
A technical PDF regarding the TAA Compliant F-Series Cat6a Snagless Shielded Network Cable is available for download.
