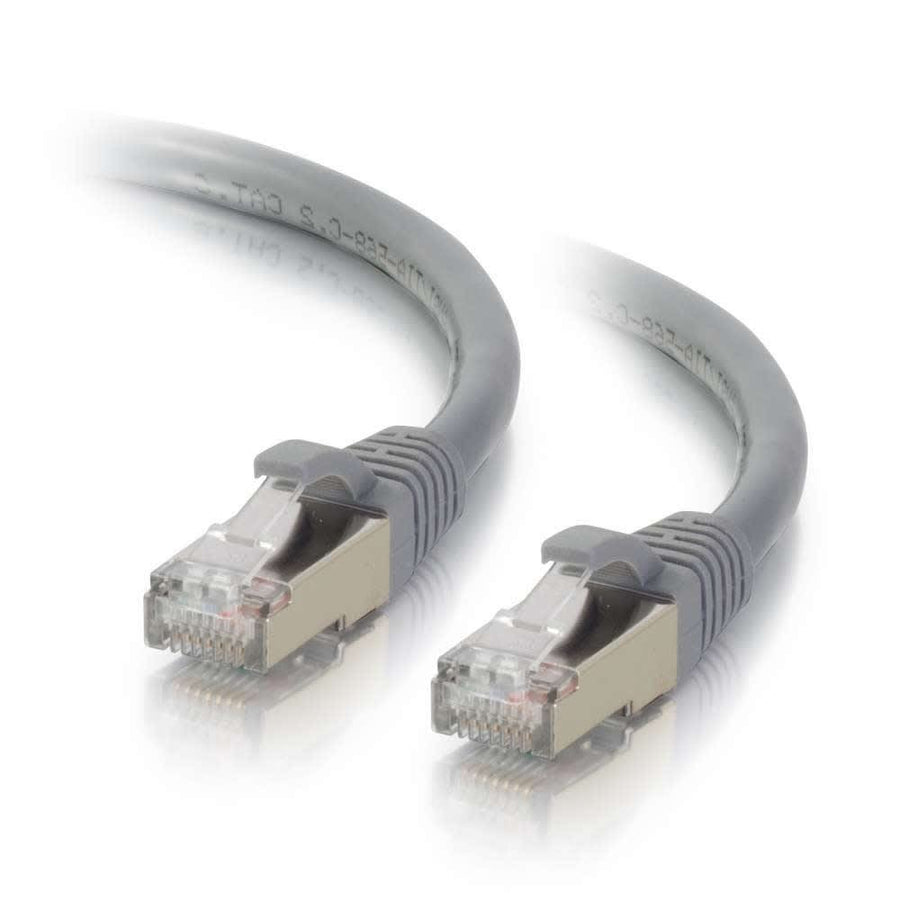

30ft (9.1m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Gray
30 ft (9.1 m) Cat6a STP shielded snagless patch cable, gray, optimized for 10GBase-T high-speed networking
The C2G CG00653 is a 30 ft (9.1 m) Cat6a STP shielded patch cable designed to protect high-speed 10GBase-T network connections from electromagnetic interference and noise. This cable is built for bandwidth-intensive applications, helping to drastically reduce impedance and structural return loss (SRL) during voice, data, or video distribution. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring reliable performance for network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. Each cable features 26AWG bare copper conductors with a stranded configuration to maintain twist-spacing throughout the entire line, even up to the termination point. This design, combined with high-quality plugs and PVC connector hoods, helps minimize Near-End Crosstalk (NEXT) levels. The cable uses FMPE (Foam Polyethylene) insulation and a PVC jacket, with a bend radius of 1.95 in (49.6 mm). For ease of identification in complex installations, each individual length is labeled on the cable. The shielded SSTP construction and snagless, booted RJ-45 male connectors provide secure, interference-resistant connectivity for professional deployments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 30 ft (9.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.8 lbs (0.4 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006534 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
4-Port Surface Mount Box
WP3504WH$4.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANsmart TDR Cable Tester
CG39002$786.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Is the C2G CG00653 suitable for 10 Gigabit Ethernet?
Yes, this Cat6a cable is designed for 10GBase-T ports and equipment, providing protection for high-speed 10 Gigabit network connections against noise.
What is the wiring scheme for this patch cable?
The C2G CG00653 uses the 568B wiring scheme for all connections.
Does this cable support high-bandwidth video and data distribution?
Yes, this cable is built to handle bandwidth-intensive applications while reducing impedance and structural return loss (SRL).
What is the operating temperature range for the CG00653?
This cable is rated for operating temperatures between -4°F (-20°C) and 176°F (80°C).
What accessories are compatible with this series?
This cable is part of a series that works with various components, including the WP48RM 48-Port Keystone Rack Mount Patch Panel and the CG03414 Six Port Keystone Wall Plate.
