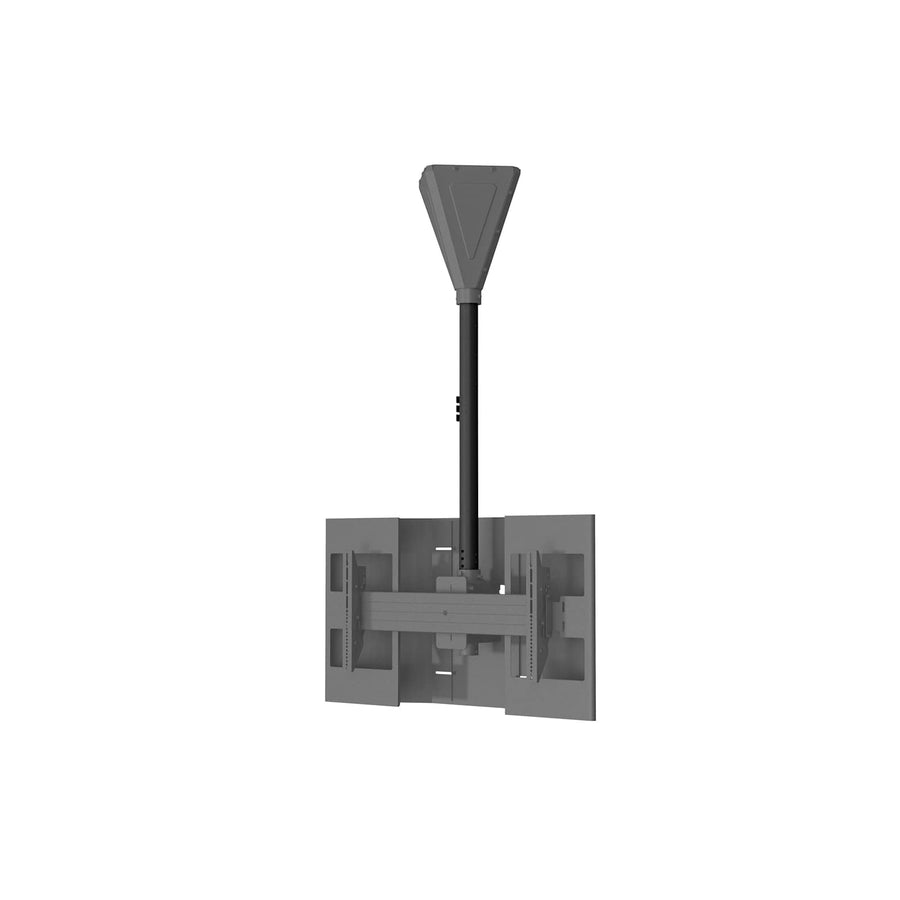

3'-4’ Outdoor Column
Outdoor extension column with 3' - 4' adjustability for ceiling or floor installations
The ODAC0304B is an outdoor-rated extension column designed to integrate with Chief outdoor ceiling mounts. This component allows for vertical adjustment between 3' - 4' (838mm-1219 mm) in 1" increments, providing 12" of total height range to accommodate specific ceiling installations. Engineered for harsh environments, this column is built to withstand high winds, sun exposure, humidity, rain, and ocean air. The construction features UV-rated plastics, stainless-steel hardware, and corrosion-resistant paint to meet UL 2442 Part 2 standards for outdoor use. It is wind-compatible up to a 2000 ft-lbs maximum moment force, which can be used in engineering calculations to verify that your specific installation configuration meets local safety and wind-load requirements. This accessory only works in conjunction with Chief outdoor rated mounts and plates.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 42.5" x 4" x 3" (107.9 x 10.2 x 7.6 cm) |
| Shipping Weight | 13.28 lbs (6 kg) |
| Weight Capacity | 300 lbs (136 kg) |
| Accessory Type | Extension |
| Adjustability | 3' - 4' (0.91 - 1.22m) |
| Adjustments | 33"- 48" (838mm-1219 mm) |
| Application | CeilingFloor |
| Color | Black |
| Special Features | Outdoor Use |
| TAA Compliant | Yes |
| UPC | 841872171890 |
| Certifications | TAAUL Listed |
Resources
Questions about this part
What can I use the ODAC0304B with?
This column only works with Chief outdoor rated mounts and plates.
Is this column suitable for coastal environments?
Yes, the design is built to withstand ocean air, humidity, and high winds using corrosion-resistant paint and stainless-steel hardware.
How much height can I adjust the column by?
The ODAC0304B provides a 12" adjustment range, spanning from 3' to 4' (838mm-1219 mm) in 1" increments.
Can this be used for both ceiling and floor mounts?
Yes, the application for this column includes both ceiling and floor installations.
What is the weight capacity of this extension?
The ODAC0304B has a weight capacity of 300 lbs (136 kg).
