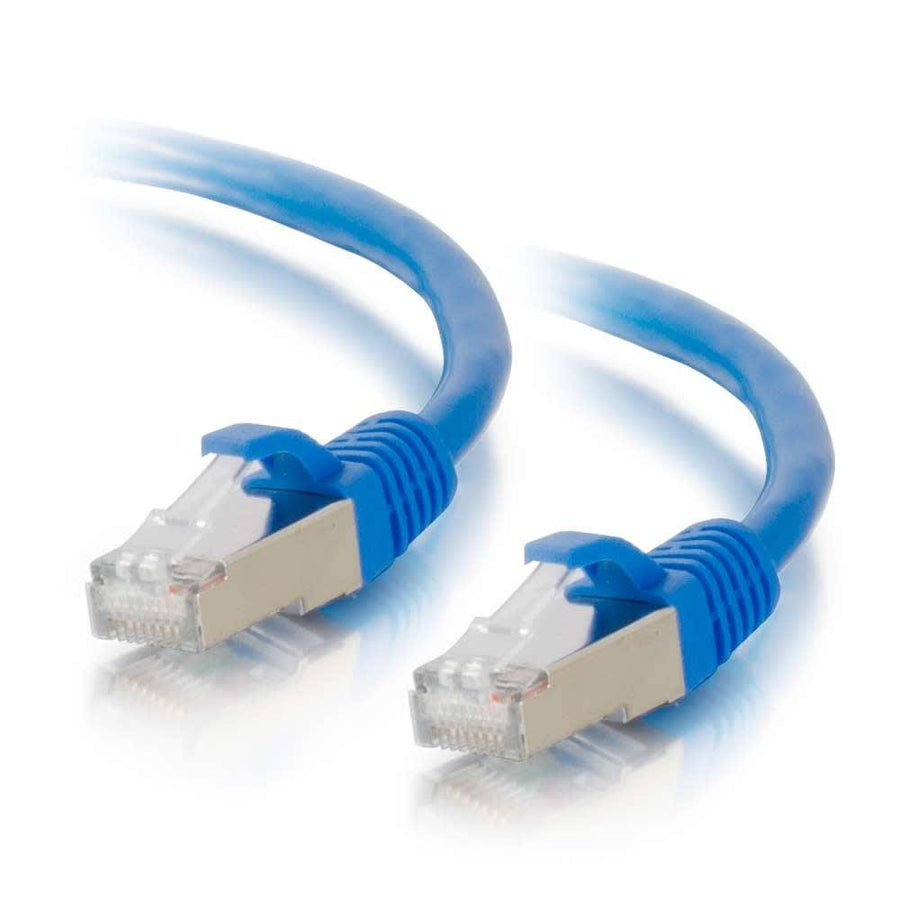

2ft (0.6m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Blue
2ft Cat6a shielded STP patch cable in blue, featuring snagless connectors for high-speed 10GBase-T network protection
The C2G CG00673 is a 2ft (0.6m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable in blue, engineered to support high-bandwidth 10GBase-T environments. This cable is designed for use with network adapters, switches, routers, hubs, and patch panels, providing essential protection against electromagnetic interference and noise in high-speed 10 Gigabit networks. Built with 26AWG bare copper stranded conductors and FMPE (Foam Polyethylene) insulation, it is constructed to reduce both impedance and structural return loss (SRL). Each individual pair is bonded together to maintain consistent twist-spacing through the termination point, which minimizes Near-End Crosstalk (NEXT) levels. This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring reliable performance for voice, data, and video distribution. The snagless, booted RJ-45 male connectors feature PVC hoods, and the 0.24 in (6.2 mm) diameter cable is rated for operating temperatures from -4°F to 176°F (-20°C to 80°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 2 ft (0.6 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.09 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006732 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
4-Port Surface Mount Box
WP3504WH$4.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANsmart TDR Cable Tester
CG39002$786.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this CG00673 cable work for 10 Gigabit Ethernet?
Yes, this Cat6a patch cable is designed for 10GBase-T ports and equipment, providing the necessary bandwidth for 10 Gigabit network connections.
Is the CG00673 cable shielded against interference?
Yes, the CG00673 features Shielded STP (SSTP) construction and 26AWG stranded copper to help reduce impedance and protect against noise.
What is the maximum operating temperature for this cable?
This cable is rated for operating temperatures ranging from -4°F to 176°F (-20°C to 80°C).
Does this cable support 568B wiring schemes?
Yes, the CG00673 is designed with a 568B wiring scheme for standard network installations.
What certifications does C2G CG00673 meet?
This cable is tested to ANSI/TIA 568 C.2 Cat6a component requirements and carries CE, REACH, and RoHS certifications.
