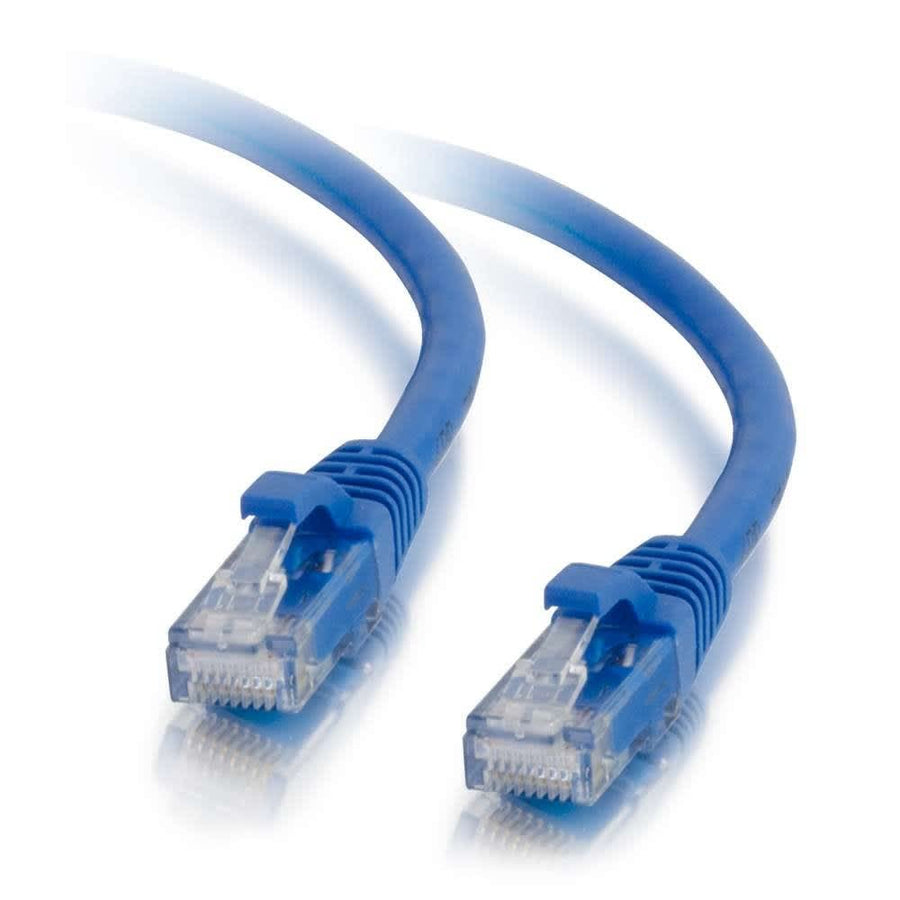

2ft (0.6m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
2ft Blue Cat5e UTP patch cable with snagless boots and stranded copper conductors for high-bandwidth networking
The CG00392 is a 2ft (0.6m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable in blue, designed for high-bandwidth voice, data, or video distribution applications. This cable meets all Cat5e TIA/EIA standards and is engineered to reduce impedance and structural return loss (SRL). It features 24 AWG stranded copper conductors that minimize Near-End Crosstalk (NEXT) levels. To ensure reliable connectivity in busy network environments, each individual pair is bonded together to maintain consistent twist-spacing through the termination point. The molded, snagless PVC boots protect the RJ-45 clips from damage during frequent plugging and unpluging while providing added strain relief. This unshielded (UTP) cable supports a bandwidth of 350 mHz and utilizes a T568B wiring scheme. The blue jacket and boots allow for easy color-coding within complex network installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 2 ft (0.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.07 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120003922 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
6-Port Network Interface Module
AC1000$54.99
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Trio Combo Module with Cat5e Data
CO1156$109.99
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Quick Connect RJ45 Keystone Insert in Black
WP3475BK$3.99
Cat5e QuickConnect RJ45 Keystone Insert in White - 100 Pack
WP3475WH100$299.99
Cat5e Quick Connect RJ45 Keystone Insert in Ivory
WP3475IV$3.99
Questions about this part
What is the maximum bandwidth for the CG00392 cable?
This Cat5e patch cable supports a bandwidth of 350 mHz for high-bandwidth data, voice, or video distribution applications.
Does the CG00392 include snagless protection?
Yes, the CG00392 features a molded, snagless boot made of PVC that protects the RJ-45 clips and provides extra strain relief.
What is the conductor material and gauge for this cable?
The cable is constructed from high-quality 24 AWG stranded copper conductors to help minimize Near-End Crosstalk (NEXT) levels.
Is the CG00392 compliant with NDAA 889?
Yes, this product is listed as meeting NDAA 889 compliance standards.
What wiring scheme is used in this patch cable?
The CG00392 uses the T568B wiring scheme for all connections.
