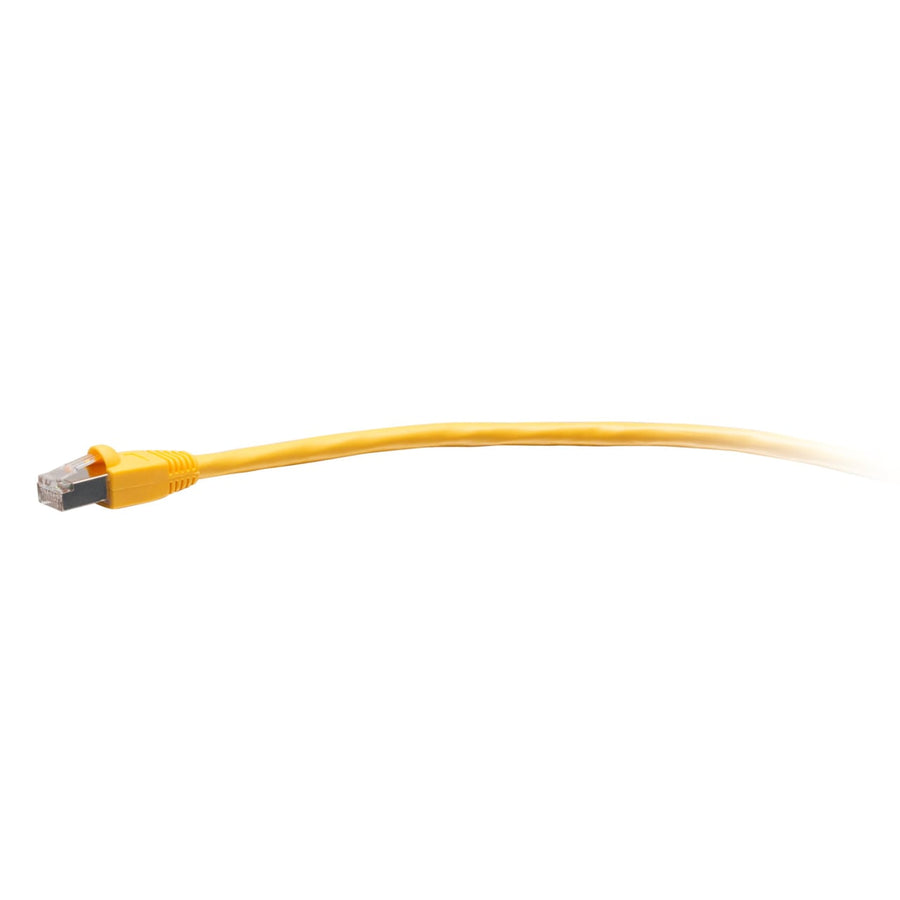

25ft (7.6m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Yellow
25ft (7.6m) TAA-compliant Cat6 STP shielded patch cable with snagless connectors in yellow
The C2G43776 is a 25ft (7.6m) TAA-compliant F-Series Cat6 snagless shielded (STP) network cable in yellow. Designed for high-speed networking environments, this cable is approved for use in United States government projects and facilities due to its TAA compliance. It features a shielded STP construction with an aluminum foil shield to protect against electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk, making it an effective solution for connecting switches, routers, servers, and network adapters in noisy environments. Constructed with high-quality, made-in-the-USA stranded copper cabling, this cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards for supporting 1000BASE-T 1 Gigabit Ethernet applications. The RJ-45 male connectors feature a snagless design to prevent the clips from snapping off during high-insertion cycle applications, and 50-micron gold-plated contacts ensure consistent signal integrity. With a CMR-rated PVC jacket, this cable is suitable for riser applications and operates within a temperature range of -4° to 167°F (-20° to 75°C). This passive cable is built for reliability and is backed by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.57 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437765 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is this C2G43776 cable TAA compliant for government projects?
Yes, this cable is TAA compliant and approved for use in United States government projects and facilities.
Will this Cat6 cable work in a riser application?
Yes, this cable features a CMR-rated PVC jacket specifically designed for riser applications.
What is the maximum operating temperature for this cable?
This cable is rated to operate in temperatures ranging from -4° to 167°F (-20° to 75°C).
How does the snagless design benefit installers?
The snagless RJ-45 design protects the connector clips from being snapped off, which is beneficial for applications requiring high insertion cycles.
What shielding does this Cat6 cable provide?
This is a shielded STP cable utilizing aluminum foil to protect the network from EMI, RFI, and alien crosstalk.
