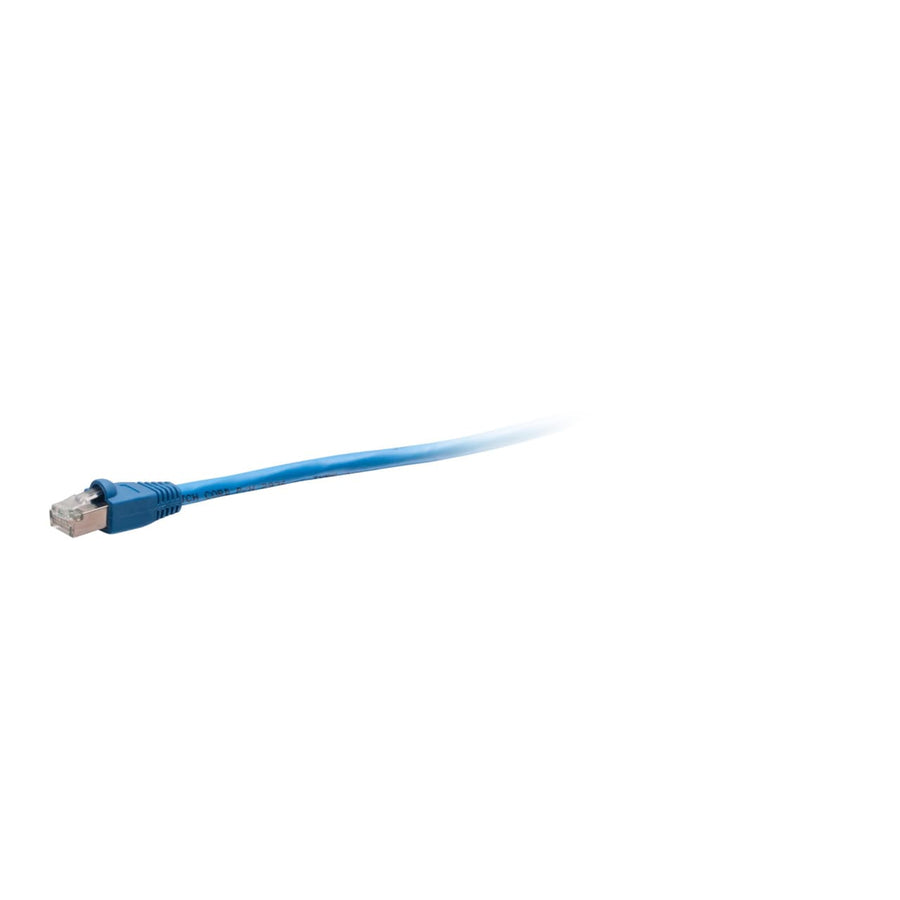

25ft (7.6m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Blue
25ft Blue Cat6 shielded STP patch cable, TAA-compliant, snagless RJ45 connectors, and CMR rated for indoor riser applications
The C2G43734 is a 25 ft (7.6 m) TAA-compliant Cat6 network cable designed for high-speed data environments requiring protection from electromagnetic interference. This snagless shielded STP (Shielded Twisted Pair) cable is constructed with high-quality, made in the USA copper cabling and an aluminum foil shield to effectively counter EMI, RFI, and alien crosstalk. It features 50-micron gold-plated contacts on the RJ45 male connectors to improve signal integrity and a snagless design to protect the clips from snapping during high-frequency insertion cycles. This CMR rated, riser-rated cable is ideal for connecting network adapters, hubs, switches, routers, and servers in professional environments. Built to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, this passive cable supports 1000BASE-T (1 Gigabit Ethernet) applications. The blue PVC jacket and 0.24 in (6 mm) diameter facilitate easy identification and installation within structured cabling systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.57 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437345 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43734 TAA compliant?
Yes, this is a TAA-compliant cable, making it approved for use in United States government projects and facilities.
What is the maximum data rate for this Cat6 cable?
This cable meets or exceeds ANSI/TIA-568.2-D standards and is designed to support 1000BASE-T (1 Gigabit Ethernet) applications.
What type of shielding does this cable use?
This is a shielded STP cable that utilizes aluminum foil shielding to protect against EMI, RFI, and alien crosstalk.
Can this cable be used in riser applications?
Yes, the C2G43734 features a CMR rated jacket, which is appropriate for riser-rated applications.
What is the wiring scheme for this patch cable?
This cable is configured with a T568B wiring scheme and uses 26 AWG stranded copper conductors.
