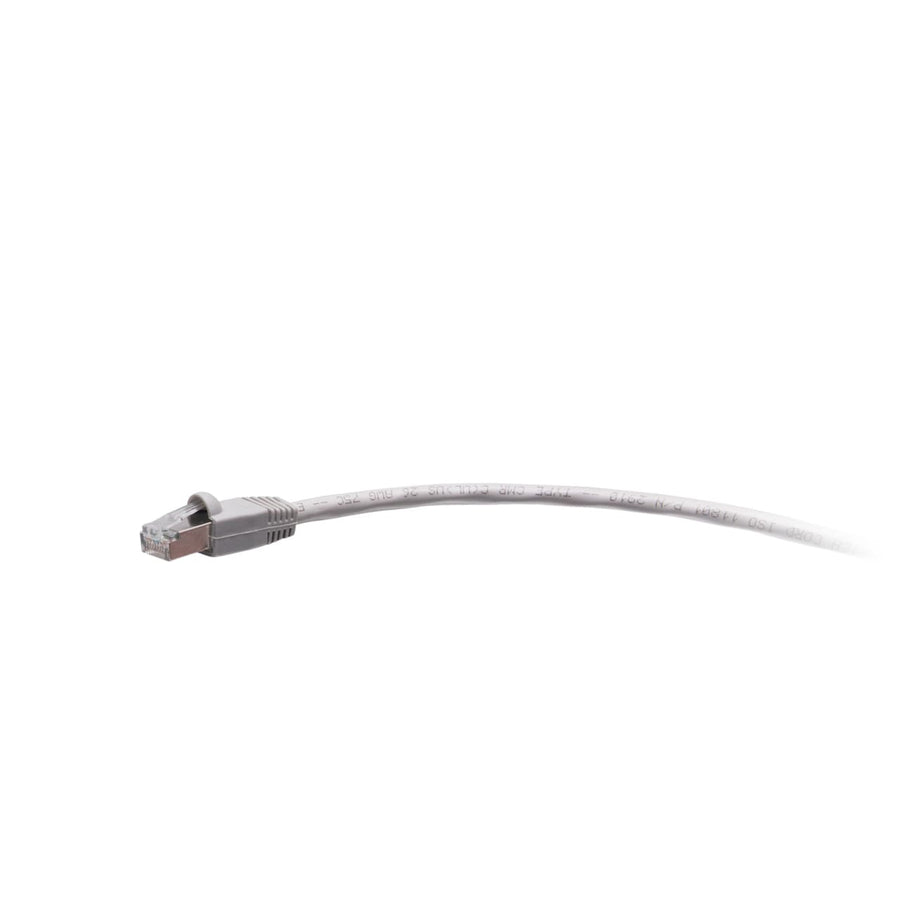

25ft (7.6m) TAA-Compliant F-Series Cat5e Snagless Shielded (STP) Network Cable - Gray
25ft TAA-compliant Cat5e shielded STP network cable, gray, with snagless RJ45 connectors and CMR rated jacket
The C2G43430 is a 25 ft (7.6 m) TAA-compliant Cat5e shielded STP network cable designed for use in high-interference environments. This passive cable features 100% aluminum foil shielding to prevent RFI and EMI from disrupting data transmission, making it suitable for connections involving hubs, switches, routers, servers, and network adapters. It is constructed with high-quality, made-in-the-USA stranded copper conductors and 50-micron gold-plated contacts to maintain signal integrity. The snagless RJ45 connector design includes a molded boot to protect the clips from snapping during high-frequency insertion cycles. This cable is CMR rated for riser applications and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, supporting 1000BASE-T Gigabit Ethernet performance. The gray PVC jacket is rated for use in a wide range of temperatures from -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.52 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434306 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43430 TAA compliant for government use?
Yes, this C2G43430 cable is TAA-compliant, making it approved for use in United States government projects and facilities.
Will this cable work in environments with high electrical noise?
Yes, the shielded STP construction uses an aluminum foil shield to protect data transmission from RFI and EMI interference.
What is the maximum temperature range for this Cat5e cable?
This cable is rated to operate in temperatures ranging from -4°F to 167°F (-20°C to 75°C).
Does this cable support Gigabit Ethernet speeds?
Yes, this cable meets ANSI/TIA-568.2-D standards and supports 1000BASE-T (1 Gigabit Ethernet) applications.
What is the connector type for the C2G43430?
This cable features two RJ-45 male connectors with a snagless design to protect the clips from snapping.
