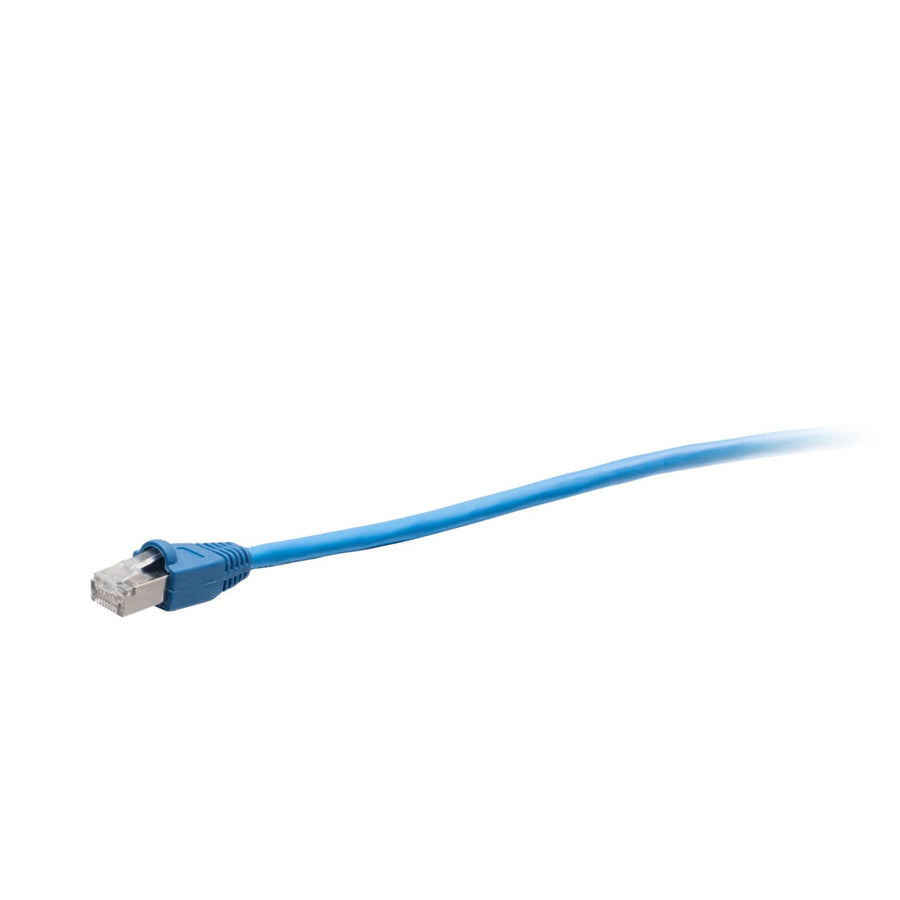

25ft (7.6m) TAA-Compliant F-Series Cat5e Snagless Shielded (STP) Network Cable - Blue
25ft Cat5e shielded STP patch cable, TAA-compliant for government use, featuring snagless RJ45 connectors in blue
The C2G43436 is a 25ft (7.6m) TAA-compliant Cat5e snagless shielded (STP) network cable in blue, specifically engineered for deployment in United States government projects and facilities. This passive networking cable utilizes made-in-the-USA copper stranded conductors to ensure consistent, reliable performance for hubs, switches, routers, servers, and network adapters. Because it features 100% aluminum foil shielding, it is an effective solution for mitigating RFI and EMI in high-interference or noisy environments. The cable is CMR rated with a PVC jacket suitable for riser applications and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting 1000BASE-T Gigabit Ethernet. For increased durability and protection against accidental breakage, the snagless RJ45 connectors feature a molded boot and 50-micron gold-plated contacts to maintain signal integrity. This TAA-compliant cable operates within a temperature range of -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 25 ft (7.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.52 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434368 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43436 TAA compliant for government contracts?
Yes, this is a TAA-compliant cable designed to meet the stringent requirements for United States government projects and facilities.
Can this cable be used in environments with high electrical interference?
Yes, the shielded STP construction uses 100% aluminum foil coverage to protect against RFI and EMI in noisy environments.
