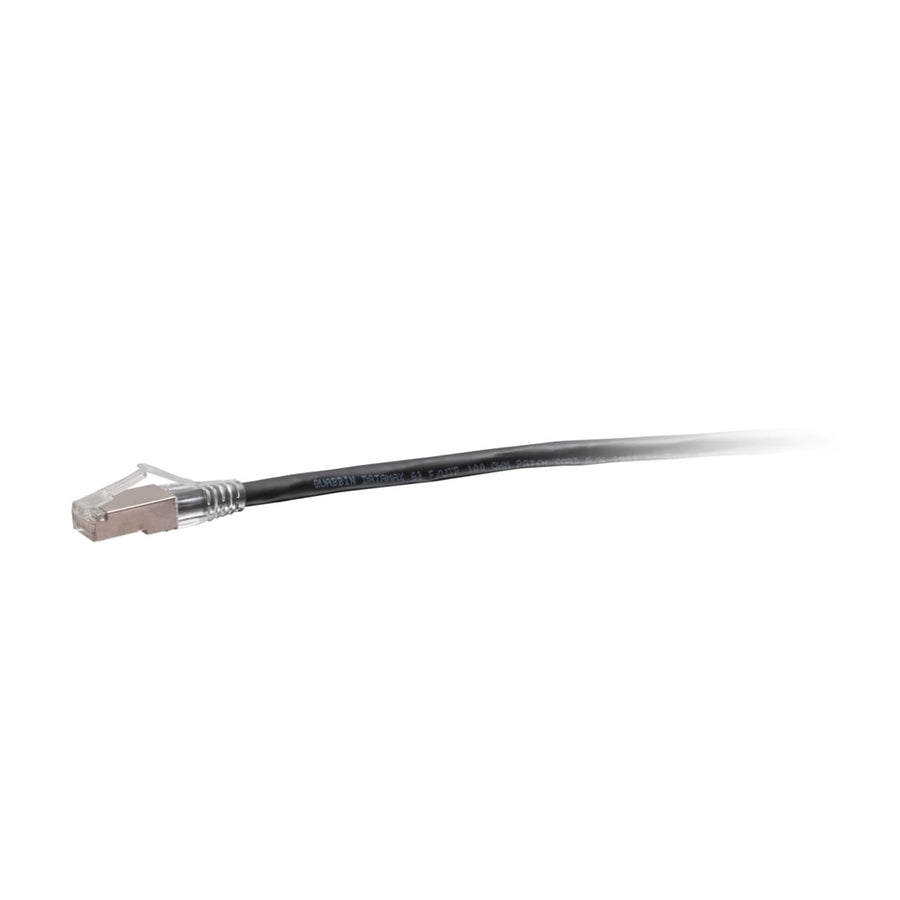

20ft (6.1m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Black
20ft (6.1m) TAA-compliant Cat6a STP shielded network cable, snagless RJ-45 connectors, black
The C2G43847 is a 20ft (6.1m) TAA-compliant Cat6a snagless shielded (STP) network cable finished in black. Designed to meet stringent TAA requirements, this cable is approved for use in United States government projects and facilities. It is engineered to support 10GBase-T equipment, including network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. By utilizing a shielded STP construction with an aluminum foil shield, this cable protects high-speed 10 Gigabit network connections from electromagnetic interference (EMI), RFI, and alien crosstalk. This passive cable features 50-micron gold-plated contacts and a snagless RJ-45 connector design to protect the clips from snapping during high-frequency insertion cycles. Constructed with high-quality, made in the USA copper stranded conductors, the cable is CMR rated for riser applications and operates in temperatures ranging from -4° to 167°F (-20° to 75°C). It meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, ensuring reliable performance for bandwidth-intensive voice, data, and video distribution.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 20 ft (6.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.55 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438472 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP4250NA$189.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Surface Mount Box
WP3506WH$6.99
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
16-Port Blank Keystone/Multimedia Patch Panel
CG03858$29.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
14 Inch Enclosure with Hinged Door
EN1450$129.99
Questions about this part
Is the C2G43847 TAA compliant?
Yes, this is a TAA-compliant F-Series network cable approved for use in US government projects and facilities.
What is the maximum bandwidth and speed capability of this cable?
This Cat6a cable is designed to support 10GBase-T (10 Gigabit Ethernet) and meets ANSI/TIA-568.2-D standards.
Can this cable be used in riser applications?
Yes, this cable features a CMR rated PVC jacket suitable for riser applications.
What is the difference between this STP and UTP cable?
This is a shielded STP cable that uses an aluminum foil shield to counter EMI, RFI, and alien crosstalk, unlike unshielded versions.
What accessories are compatible with this cable series?
This cable is part of a series compatible with various Legrand AV products, including the CG37199 24-Port Patch Panel and several enclosure models like the EN2000.
