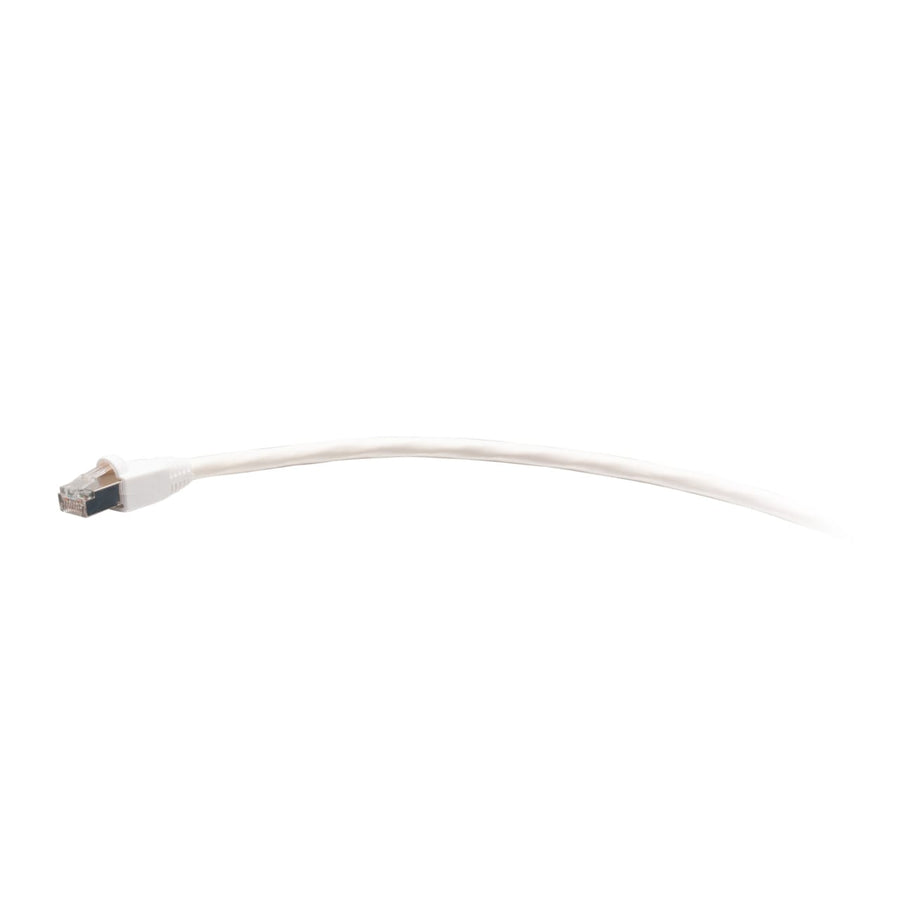

20ft (6.1m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - White
20ft TAA-compliant Cat6 STP shielded patch cable with white snagless RJ45 connectors and CMR riser rating
The C2G43789 is a 20ft (6.1m) TAA-compliant Category 6 shielded patch cable designed for high-performance networking in environments prone to electromagnetic interference. This STP (Shielded Twisted Pair) cable utilizes aluminum foil shielding to counter EMI, RFI, and alien crosstalk, making it a reliable choice for connecting hubs, switches, routers, servers, and network adapters. Built with high-quality, made in the USA copper conductors and stranded wire, it meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards to support 1000BASE-T (1 Gigabit Ethernet) applications. The snagless RJ45 connector design protects the locking clips from damage during high-cycle insertion, while the 50-micron gold-plated contacts ensure consistent signal integrity. This cable features a 0.24 in (6 mm) diameter and a CMR-rated PVC jacket suitable for riser applications. The white color is ideal for clean, organized cable management in professional installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 20 ft (6.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.48 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437895 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43789 TAA compliant?
Yes, this cable is TAA-compliant, making it approved for use in United States government projects and facilities.
What is the shielding type for this Cat6 cable?
The C2G43789 uses an STP (Shielded Twisted Pair) design with an aluminum foil shield to mitigate electromagnetic interference and crosstalk.
Can this cable be used in riser applications?
Yes, this cable features a CMR-rated PVC jacket specifically designed for riser applications.
What is the maximum operating temperature for the C2G43789?
This cable is rated for operating temperatures ranging from -4° - 167°F (-20° - 75°C).
Does this cable support Gigabit Ethernet?
Yes, it meets ANSI/TIA-568.2-D standards, supporting 1000BASE-T (1 Gigabit Ethernet) applications.
