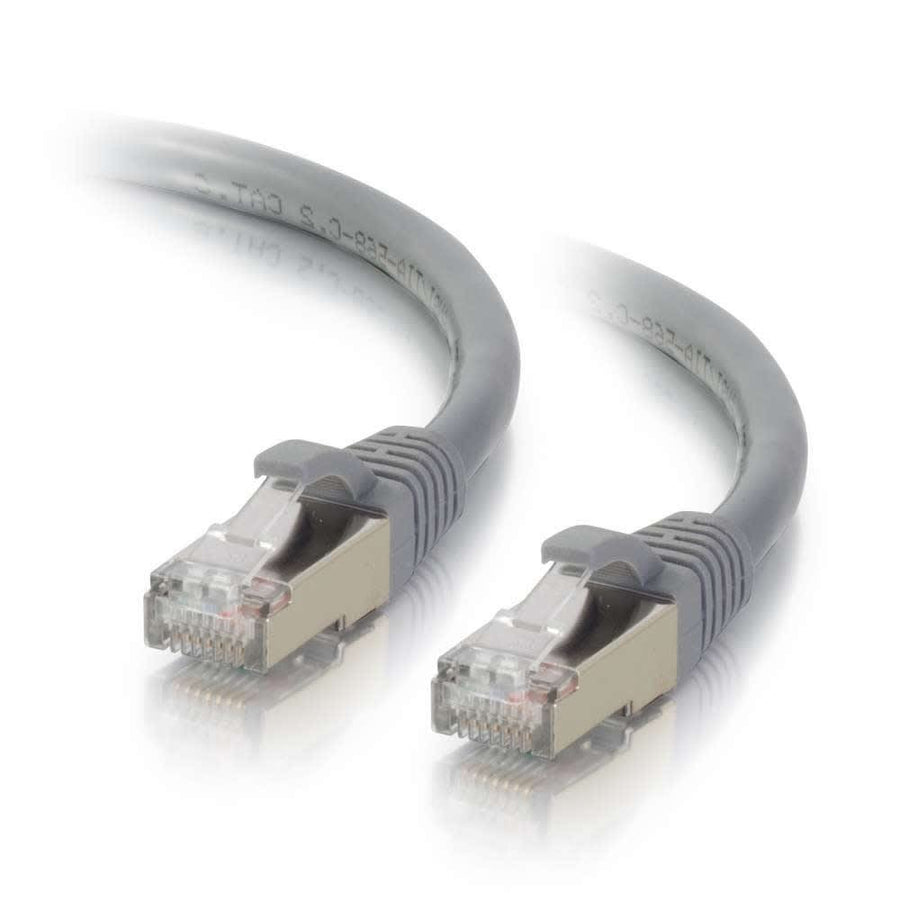

20ft (6.1m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Gray
20ft Cat6a Snagless Shielded STP Ethernet Patch Cable in Gray, designed for 10GBase-T network equipment and high-speed data distribution
The C2G CG00651 is a 20 ft (6.1 m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable designed for high-speed 10GBase-T network environments. This gray cable is engineered to protect network connections from electromagnetic interference (EMI) and noise, making it ideal for use with 10GBase-T ports and hardware such as switches, routers, hubs, DSL/cable modems, and network adapters. The construction features 26AWG bare copper stranded conductors with FMPE (Foam Polyethylene) insulation to assist in maintaining twist-spacing and reducing impedance and structural return loss (SRL). Each individual pair is bonded together to minimize Near-End Crosstalk (NEXT) levels. This patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements and utilizes a 568B wiring scheme. The cable features a 0.24 in (6.2 mm) diameter and a 1.95 in (49.6 mm) bend radius. For easy identification in complex installations, each cable includes an individual length label.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 20 ft (6.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.59 lbs (0.3 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006510 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
4-Port Surface Mount Box
WP3504WH$4.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANsmart TDR Cable Tester
CG39002$786.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this Cat6a cable work for 10GBase-T equipment?
Yes, this CG00651 cable is designed specifically for 10GBase-T ports and equipment, including network adapters, hubs, switches, and routers.
Is this C2G patch cable shielded against interference?
Yes, the CG00651 features a Shielded STP (SSTP) design that protects high-speed network connections from noise and electromagnetic interference.
What is the wiring scheme for the CG00651?
The CG00651 uses a 568B wiring scheme and is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements.
What accessories are compatible with this cable installation?
This cable can be used alongside various accessories such as the CG03833 2-Port Keystone Jack Surface Mount Box or the WP48RM 48-Port Keystone Rack Mount Patch Panel.
Does this cable include any specific testing certifications?
The CG00651 is ANSI/TIA 568 C.2 Cat6a component tested and carries CE, REACH, and RoHS certifications.
