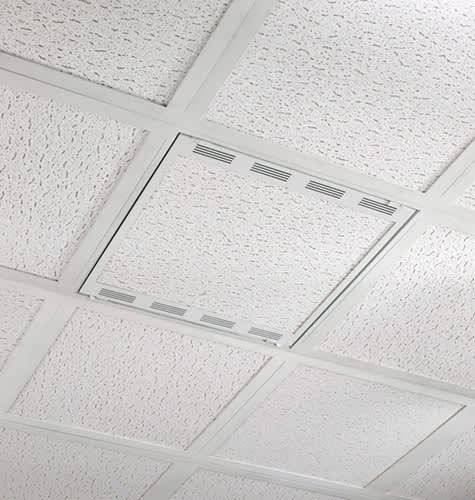

2' x 2' Above Suspended Ceiling Storage Box
White 2' x 2' ceiling tile storage box for concealing AV equipment with a 100 lbs weight capacity
The Chief CMS492 is an above-suspended ceiling storage box designed to conceal AV equipment behind 2' x 2' (60.33 x 60.33 cm) ceiling tiles. This solution provides a professional, clean appearance for classrooms and conference rooms by hiding hardware from view. It is UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC. The unit features an AV tray that supports a variety of AV components and includes built-in ventilation to manage heat. For electrical integration, the box features 4 nested knockouts for 1-1/4", 1", and 1/2" diameter conduit. While it comes with 1 shelf, a second shelf (CMSUNV2) must be purchased separately. For rack-mounted gear, 1 RU rack rail brackets (CMS1RU) are available as a separate accessory. The total weight capacity of the system is 100 lbs (45.4 kg), which includes a 50 lbs (22 kg) capacity for a projector ceiling plate and 25 lbs (11 kg) per shelf location.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm) |
| Depth | 23.67 in (60.1 cm) |
| Height | 8 in (20.3 cm) |
| Max Equipment Size | 7.61" x 19.25" x 20" (193 x 489 x 508 mm) |
| Overall Dimensions | 8" x 24.97" x 23.67" (203 x 634 x 601 mm) |
| Shipping Weight | 35.76 lbs (16.2 kg) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 24.97 in (63.4 cm) |
All other specifications 9
| Accessory Type | Suspended Ceiling |
| Accommodate Column Drop | No |
| Application | Ceiling |
| Color | White |
| Includes Power Outlet | No |
| Special Features | Surge and Filtering |
| TAA Compliant | Yes |
| UPC | 841872162898 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
1RU Rack Mount Brackets
CMS1RU$33.60
Power Filtering & Surge Protection Wall Outlet
EGX-SF2$232.80
2' x 2' AV Component Shelf
CMSUNV2$116.00
Questions about this part
Will the CMS492 fit my ceiling tiles?
The CMS492 is specifically designed to accommodate a 2' x 2' (60.33 x 60.33 cm) suspended ceiling tile.
What is the maximum weight I can store in the CMS492?
The overall weight capacity is 100 lbs (45.4 kg), which includes a 50 lbs (22 kg) capacity for a projector ceiling plate and 25 lbs (11 kg) per shelf location.
Does the CMS492 include a second shelf or rack rails?
This unit ships with 1 shelf; a second shelf (CMSUNV2) and 1 RU rack rail brackets (CMS1RU) are sold separately.
Can I install electrical outlets in the CMS492?
Yes, the detachable power housing can be pre-installed by an electrician on site to accommodate up to one dual gang or two single gang outlets.
Is the CMS492 suitable for air-handling spaces?
Yes, it is UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC.
