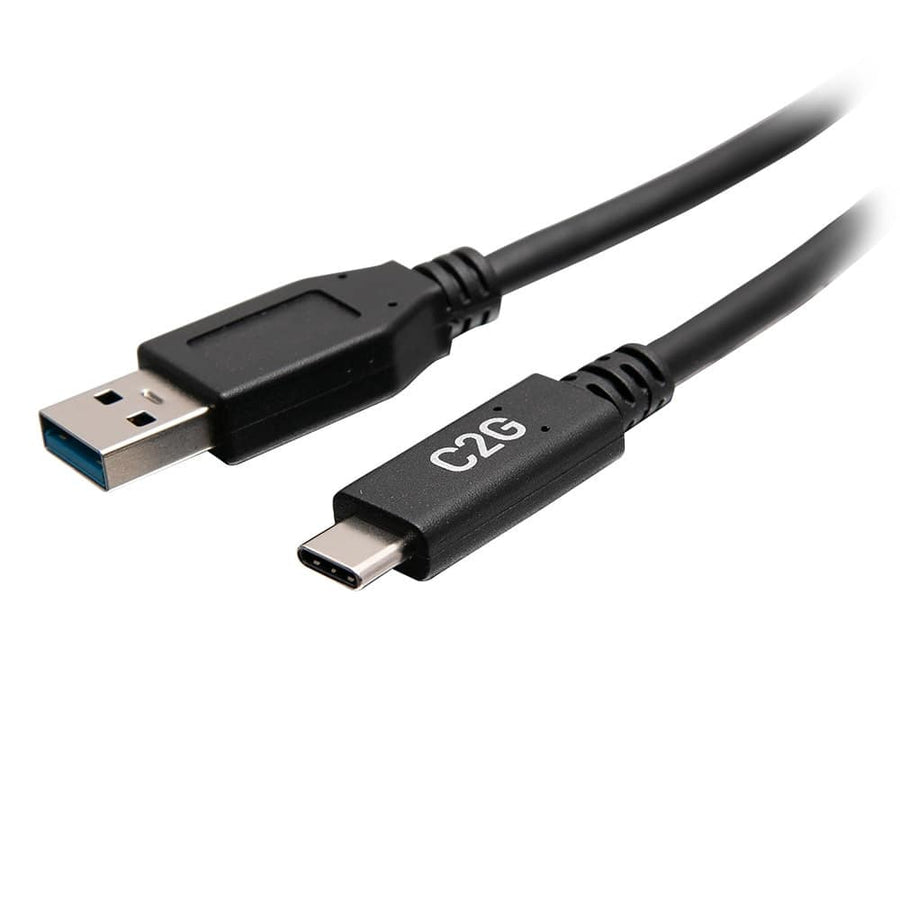

1ft (0.3m) USB-C® Male to USB-A Male Cable - USB 3.2 Gen 1 (5Gbps)
1ft USB-C Male to USB-A Male cable supporting USB 3.2 Gen 1 5Gbps data transfer and 3A charging
The C2G28875 is a 1ft (0.3m) USB-C Male to USB-A Male cable designed for efficient data transfer and power delivery between USB-C enabled devices and standard USB-A hardware. This cable utilizes USB 3.2 Gen 1 technology to provide bidirectional signal transmission at data rates up to 5 Gbps. It is fully backward compatible with USB 3.0, USB 2.0, and USB 1.1 protocols, ensuring utility across various legacy and modern hardware environments. The USB-C connector features a symmetrical design, allowing for easy insertion without orientation concerns. This plug-and-play solution requires no additional software or drivers for operation. For users requiring different lengths in this series, the C2G28876 is available in a 1.5ft (0.46m) version. This cable maintains a slim profile with a 0.19 in (4.8 mm) diameter and a minimum bend radius of 1.89 in (48 mm). It is rated for operating temperatures from 32° to 122°F (0° to 50°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.89 in (48 mm) |
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 1 ft (0.3 m) |
| Operating Humidity Max | 85% RH (Non-Condensing) |
| Operating Humidity Min | 15% RH (Non-Condensing) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.06 lbs (0 kg) |
| Signal Transmission | Bidirectional |
All other specifications 16
| Storage Humidity Max | 85% RH (Non-Condensing) |
| Storage Humidity Min | 15% RH (Non-Condensing) |
| Storage Temperature | -13° to 158°F (-25°C to 70°C) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Cable Type | Adapter, USB |
| Color | Black |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) USB 3.0 A Male(1) USB 3.0 A Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 3.0 |
| UPC | 757120288756 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 5 GBPS |
| Warranty | Lifetime |
Resources
You'll need these with it
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
1.5ft (0.46m) USB-C® Male to USB-A Male Cable - USB 3.2 Gen 1 (5Gbps)
C2G28876$16.99
0.5ft (0.15m) USB-C® Female to USB-A Male SuperSpeed USB 5Gbps Adapter Converter
CG54428$22.99
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
USB-C® Male to USB-A Female Adapter Converter - USB 3.2 Gen 1 (5Gbps)
C2G29515$17.99
USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
C2G54488$189.99
USB-C® 12-in-1 Triple Display Docking Station with HDMI®, DisplayPort™, Ethernet, USB (TAA Compliant)
C2G54535Discontinued
Questions about this part
Will the C2G28875 work with my USB 2.0 devices?
Yes, this cable is fully backward compatible with USB 3.0, USB 2.0, and USB 1.1 devices for both data and charging.
What is the maximum data transfer speed for this cable?
The C2G28875 supports USB 3.2 Gen 1 speeds, allowing for bidirectional data transfer rates up to 5 Gbps.
Are there different lengths available for this USB-C to USB-A series?
Yes, this 1ft (0.3m) model is part of a series that includes a 1.5ft (0.46m) version, SKU C2G28876.
Does this cable support high-speed charging?
The cable supports 3A charging output, allowing USB-C equipped laptops, smartphones, or tablets to charge while transferring data.
Is the C2G28875 TAA compliant?
No, this specific SKU is not listed as TAA compliant.
